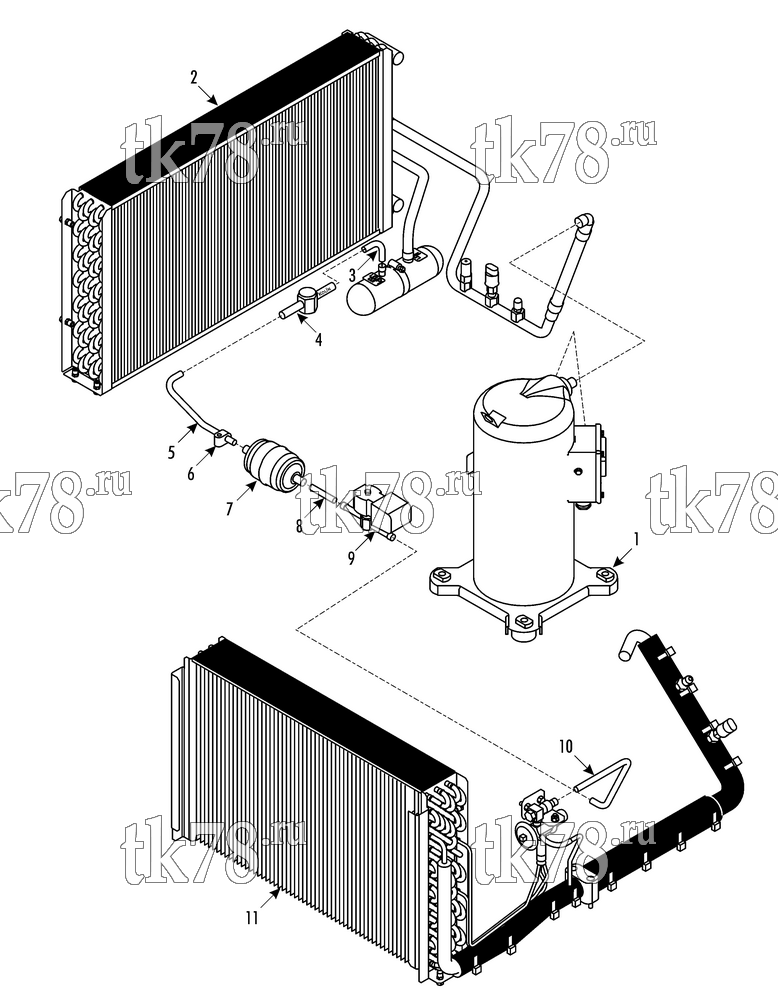

Установкa Thermo King RAC 60 SIRIO GEN схема REFRIGERATION COMPONENTS – 263A7
Обновление от: 11/21/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | COMPRESSOR (see 234B2) | 1 | |
| 2 | NSS | CONDENSER (see 227B4) | 1 | |
| 3 | 61-4234 | ELBOW | 1 | |
| 4 | 66-1296 | INDICATOR - liquid (sight glass) | 1 | |
| 5 | 61-4235 | TUBE | 1 | |
| 6 | 55-6388 | CLAMP - tube | 1 | |
| 55-8464 | SCREW - clamp | 1 | ||
| 55-8216 | FLATWASHER | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7042 | LOCKNUT | 1 | ||
| 7 | 61-381 | FILTER - drier | 1 | |
| 8 | 61-4236 | TUBE | 1 | |
| 9 | 61-382 | VALVE - solenoid | 1 | |
| 55-4523 | SCREW - valve | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 10 | 61-4237 | TUBE | 1 | |
| 11 | NSS | EVAPORATOR (see 227B5) | 1 |
