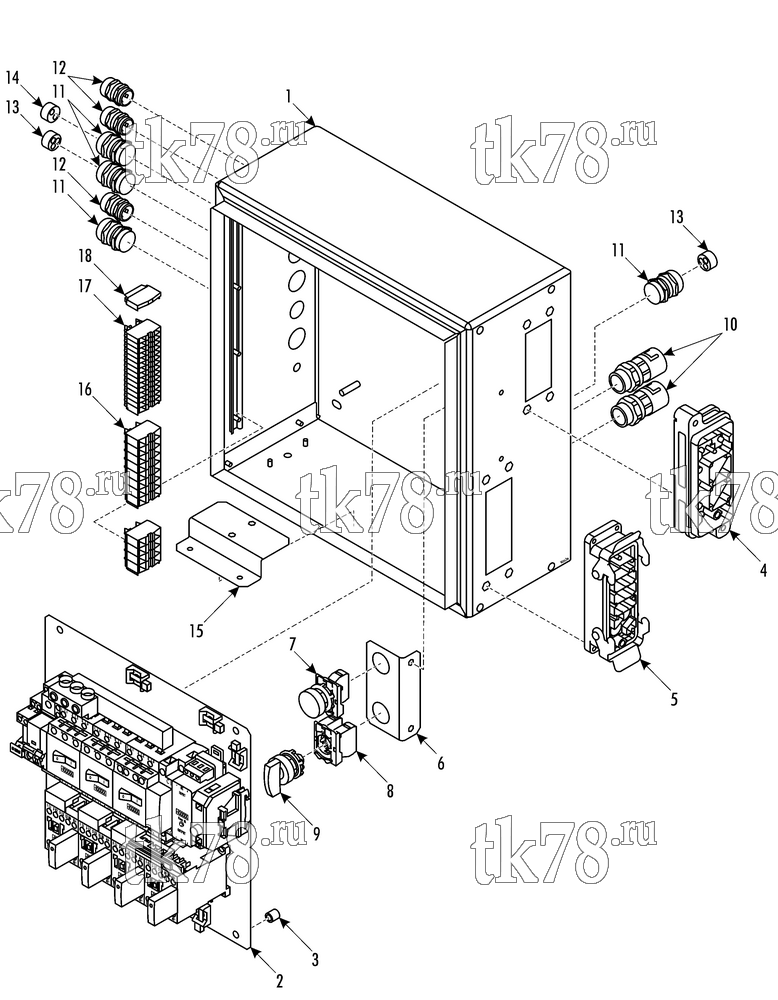

Установкa Thermo King RAC 60 SIRIO GEN схема ELECTRO BOX – 263A0
Обновление от: 11/21/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | ELECTRO BOX PANELS (see 254E4) | 1 | |
| 2 | NSS | SUBPANEL AC (see 263B4) | 1 | |
| 3 | 92-6679 | RING - distance | 4 | |
| 55-7170 | LOCKWASHER | 4 | ||
| 55-8224 | NUT | 4 | ||
| 4 | 42-219 | CONNECTOR - high voltage, assy (see 263B1) | 1 | |
| 55-9854 | SCREW - connector | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 5 | 42-751 | CONNECTOR - low voltage & signal & comms, assy (see 263B1) | 1 | |
| 55-7664 | SCREW - connector | 4 | ||
| 55-7369 | LOCKWASHER | 4 | ||
| 6 | 92-9490 | HOLDER - switch | 1 | |
| 55-7862 | SCREW - holder | 2 | ||
| 55-7369 | LOCKWASHER | 2 | ||
| 55-9866 | NUT - captive | 2 | ||
| 7 | 41-4691 | LIGHT - signal | 1 | |
| 8 | 41-4689 | SWITCH - assy | 1 | |
| 9 | 41-4687 | HEAD - control | 1 | |
| 10 | 51-710 | BUSHING | 2 | |
| 55-9711 | LOCKNUT | 2 | ||
| 11 | 51-1400 | BUSHING - cable | 4 | |
| 55-9711 | LOCKNUT | 4 | ||
| 12 | 51-848 | BUSHING - cable | 3 | |
| 55-9558 | LOCKNUT | 1 | ||
| 13 | 41-6671 | SEALING - bushing | 2 | |
| 14 | 41-6682 | SEALING - bushing | 1 | |
| 15 | 93-360 | BRACKET | 1 | |
| 55-7698 | NUT | 2 | ||
| 55-7369 | LOCKWASHER | 2 | ||
| 16 | 41-3893 | TERMINAL - double | 15 | |
| 17 | 41-3892 | TERMINAL | 15 | |
| 18 | 41-3894 | PLATE - end | 1 |
