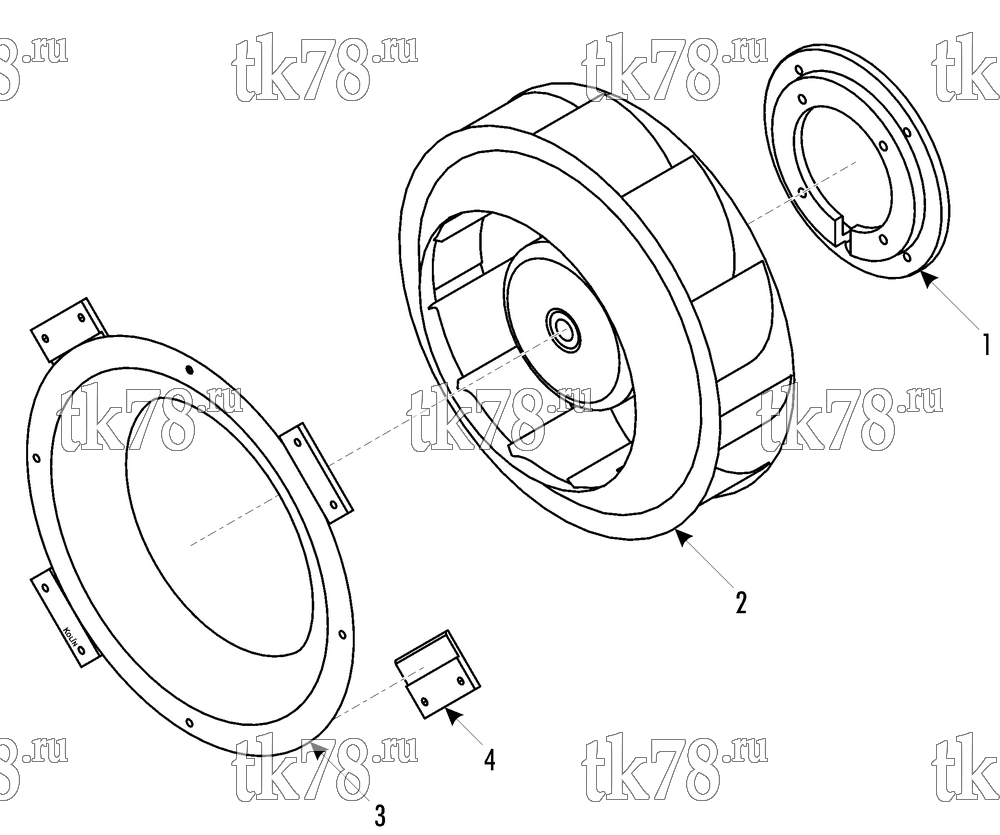

Установкa Thermo King RAC 60 SIRIO GEN схема BLOWER – 227B7
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1631 | RING - blower | 1 | |
| 55-7752 | SCREW - ring to frame | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-8893 | FLATWASHER | 4 | ||
| 2 | 78-1513 | BLOWER | 1 | |
| 55-7407 | SCREW - blower to ring | 4 | ||
| 55-7171 | LOCKWASHER | 4 | ||
| 3 | 78-1514 | RING - inlet | 1 | |
| 4 | 78-1632 | HOLDER - inlet ring | 4 | |
| 55-9349 | SCREW - holder | 8 | ||
| 55-7369 | LOCKWASHER | 8 | ||
| 55-7697 | FLATWASHER | 8 | ||
| 51-1824 | NUT - captive | 8 |
