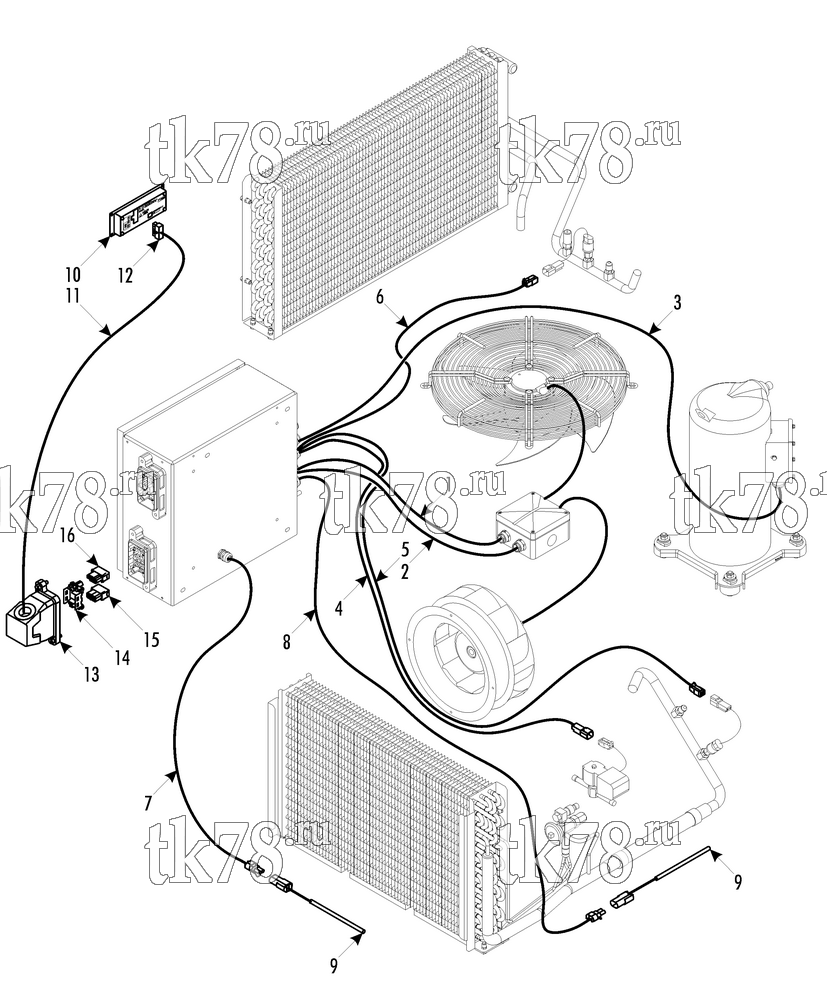

Установкa Thermo King RAC 60 ITM схема ELECTRICAL COMPONENTS – 252B8
Обновление от: 3/16/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-8038 | CABLE - CFM outside | 1 | |
| 2 | 41-8049 | CABLE - EFM outside | 1 | |
| 3 | 41-8039 | CABLE - compressor power | 1 | |
| 4 | 41-8042 | CABLE - solenoid | 1 | |
| 5 | 41-8043 | CABLE - low pressure sensor | 1 | |
| 6 | 41-8044 | CABLE - high pressure sensor | 1 | |
| 7 | 41-8047 | CABLE - temperature sensor (RTS) | 1 | |
| 8 | 41-8048 | CABLE - temperature sensor (CTS) | 1 | |
| 9 | 41-4157 | SENSOR - temperature | 2 | |
| 10 | 41-7211 | ClimaAIRE I D | 1 | |
| 11 | 41-9839 | CABLE - ClimaAIRE | 1 | |
| 12 | 41-661 | CONNECTOR (14 term) | 1 | |
| 13 | 41-9840 | HOUSING - connector (XLV) | 1 | |
| 14 | 41-6745 | FRAME - fixing | 1 | |
| 15 | 41-5523 | COVER - connector, female | 1 | |
| 16 | 41-7028 | COVER - connector, female | 1 | |
| 41-5552 | PIN | 2 | ||
| 41-8052 | WIRE - grounding (9 inch) | 1 | ||
| 41-8050 | WIRE - grounding (22 inch) | 3 | ||
| 41-8051 | WIRE - grounding (46 inch) | 1 |
