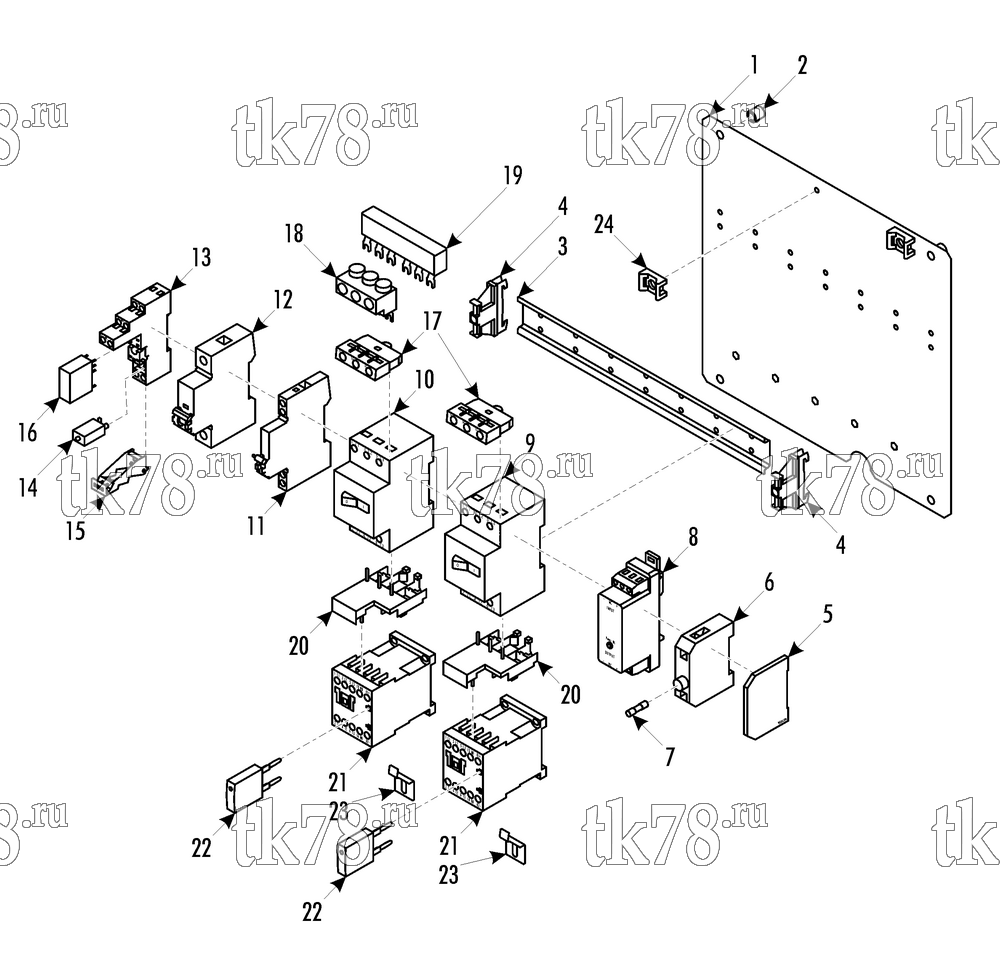

Установкa Thermo King RAC 60 ITM схема SUBPANEL AC – 252B7
Обновление от: 3/16/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-6678 | BASE - subpanel | 1 | |
| 55-7354 | NUT - subpanel | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 2 | 92-6679 | RING - distance | 4 | |
| 3 | 92-6680 | RAIL - DIN | 1 | |
| 55-5130 | RIVET - rail | A/R | ||
| 4 | 91-6465 | CLAMP - breakers | 2 | |
| 5 | 92-2402 | PLATE - end & intermediate | 1 | |
| 6 | 41-3505 | HOLDER - fuse | 1 | |
| 7 | 41-3661 | FUSE (4 amp) | 1 | |
| 8 | 41-5727 | ARRESTER - overvoltage | 1 | |
| 9 | 41-3886 | BREAKER - circuit (8.0 amp) | 1 | |
| 10 | 41-8036 | BREAKER - circuit (0.63 amp) | 1 | |
| 11 | 41-5603 | SWITCH - auxiliary circuit | 1 | |
| 12 | 41-5543 | BREAKER - circuit (10 amp) | 1 | |
| 13 | 41-4384 | SOCKET - relay | 1 | |
| 14 | 41-4386 | DIODE - suppressor | 1 | |
| 15 | 41-4385 | LOCK - socket | 1 | |
| 16 | 41-8037 | RELAY | 1 | |
| 17 | 41-2931 | BLOCK - contact, auxiliary | 2 | |
| 18 | 41-3891 | TERMINAL - input | 1 | |
| 19 | 41-4726 | BUSBAR | 1 | |
| 20 | 41-3807 | ELEMENT - coupling | 2 | |
| 21 | 41-3802 | CONTACTOR (3kW) | 2 | |
| 22 | 41-3812 | MODULE - suppressor | 2 | |
| 23 | 92-3616 | BRACKET | 2 | |
| 55-7409 | SCREW - bracket | 2 | ||
| 55-7171 | LOCKWASHER | 2 | ||
| 51-1824 | NUT - captive | 2 | ||
| 24 | 99-3281 | MOUNT - bandwrap | 2 | |
| 51-2030 | RIVET - mount | 2 | ||
| 56-2330 | BANDWRAP | 2 |
