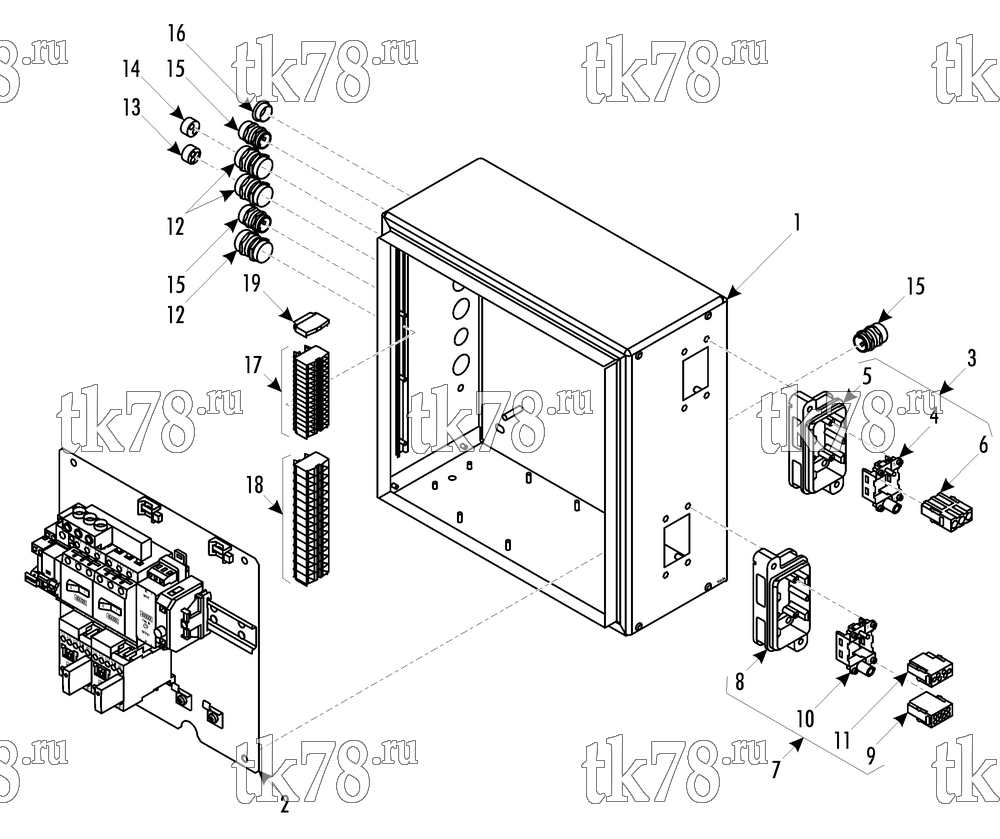

Установкa Thermo King RAC 60 ITM схема CONTROL BOX – 252B5
Обновление от: 3/16/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | CONTROL COX PANEL (see 252B6) | 1 | |
| 2 | NSS | SUBPANEL AC (see 252B7) | 1 | |
| 3 | 41-9837 | CONNECTOR - high voltage | 1 | |
| 4 | 41-5925 | FRAME - fixing | 1 | |
| 5 | 41-6744 | HOUSING | 1 | |
| 6 | 41-5505 | COVER - connector, male | 1 | |
| 7 | 41-9838 | CONNECTOR - line & low voltage | 1 | |
| 8 | 41-6744 | HOUSING | 1 | |
| 9 | 41-5300 | COVER - connector, male | 1 | |
| 10 | 41-5925 | FRAME - fixing | 1 | |
| 11 | 41-7516 | COVER - connector, male | 1 | |
| 55-7664 | SCREW - connectors | 8 | ||
| 55-7369 | LOCKWASHER | 8 | ||
| 55-7697 | FLATWASHER | 8 | ||
| 12 | 51-1400 | BUSHING - cable | 3 | |
| 55-9711 | LOCKNUT | 3 | ||
| 13 | 41-6671 | SEALING - bushing | 1 | |
| 14 | 41-6682 | SEALING - bushing | 1 | |
| 15 | 51-848 | BUSHING - cable | 3 | |
| 55-9558 | LOCKNUT | 3 | ||
| 16 | 51-818 | PLUG, PG11 | 1 | |
| 51-819 | NUT, PG11 | 1 | ||
| 17 | 41-3892 | TERMINAL | 15 | |
| 18 | 41-3893 | TERMINAL - double | 14 | |
| 19 | 41-3894 | PLATE - end | 1 |
