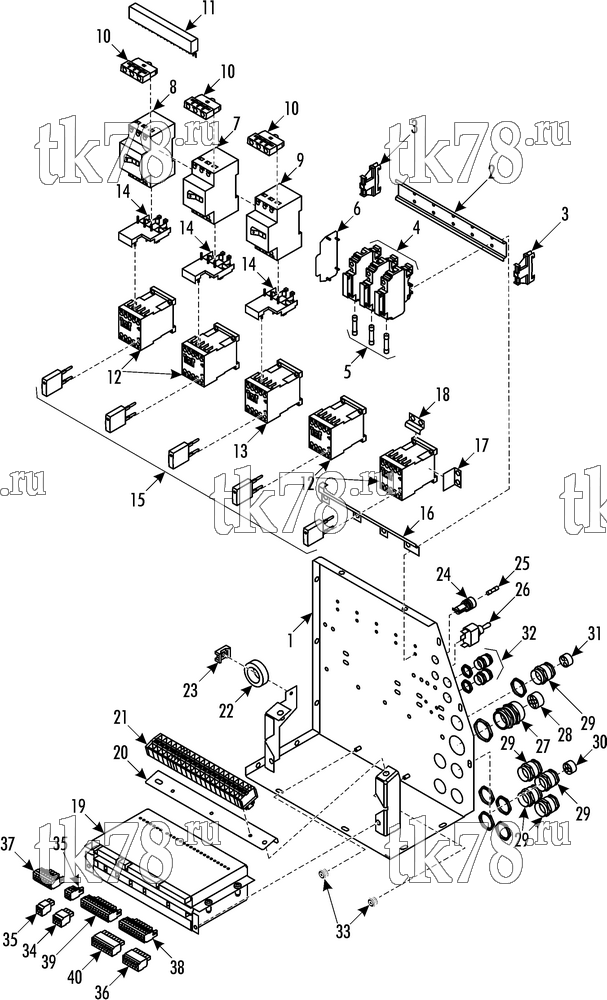

Установкa Thermo King RAC 5.5 OIW схема CONTROL BOX BOARD – 229C9
Обновление от: 9/28/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-3243 | BASE | 1 | |
| 55-8375 | NUT - captive | 9 | ||
| 2 | 92-3244 | RAIL - din | 1 | |
| 55-5130 | RIVET - rail | 10 | ||
| 3 | 91-6465 | CLAMP | 2 | |
| 4 | 41-4928 | HOLDER - fuse | 3 | |
| 5 | 41-5902 | FUSE | 3 | |
| 6 | 41-4927 | COVER | 1 | |
| 7 | 41-3808 | BREAKER - circuit (1 amp) | 1 | |
| 8 | 41-8437 | BREAKER - circuit (1.25 amp) | 1 | |
| 9 | 41-3886 | BREAKER - circuit (8 amp) | 1 | |
| 10 | 41-2931 | BLOCK - contact | 3 | |
| 11 | 41-3889 | BUSBAR | 1 | |
| 12 | 41-3802 | CONTACTOR (3 kW) | 4 | |
| 13 | 41-3803 | CONTACTOR (3 kW) | 1 | |
| 14 | 41-3807 | ELEMENT - coupling | 3 | |
| 15 | 41-3812 | SUPRESSOR | 5 | |
| 16 | 92-638 | BRACKET - breaker | 1 | |
| 17 | 92-641 | BRACKET - end | 1 | |
| 18 | 92-642 | BRACKET - end | 1 | |
| 55-7407 | SCREW - brackets | 8 | ||
| 55-7171 | LOCKWASHER | 8 | ||
| 55-7089 | FLATWASHER | 8 | ||
| 55-8375 | NUT - captive | 8 | ||
| 19 | 45-2274 | CONTROLLER | 1 | |
| 55-7407 | SCREW - controller | 2 | ||
| 55-7171 | LOCKWASHER | 2 | ||
| 20 | 41-6926 | SUPPORT - terminal | 1 | |
| 55-7407 | SCREW - support | 2 | ||
| 55-7171 | LOCKWASHER | 2 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 21 | NSS | TERMINAL | 1 | |
| 22 | 304-2593 | TRANSFORMER - current | 1 | |
| 23 | 99-3281 | MOUNT - bandwrap | 1 | |
| 55-5130 | RIVET - mount | 1 | ||
| 56-2330 | BANDWRAP | 1 | ||
| 24 | 41-3813 | HOLDER - fuse | 1 | |
| 25 | 44-6777 | FUSE | 1 | |
| 26 | 304-2590 | SWITCH - spdt | 1 | |
| 27 | 51-1372 | BUSHING - cable | 1 | |
| 55-9560 | LOCKNUT - bushing | 1 | ||
| 28 | 51-1486 | SEALING - bushing | 1 | |
| 29 | 55-9710 | BUSHING - cable | 5 | |
| 55-9711 | LOCKNUT - bushing | 5 | ||
| 30 | 41-6671 | SEALING - bushing | 1 | |
| 31 | 41-6682 | SEALING - bushing | 1 | |
| 32 | 51-711 | BUSHING - cable | 2 | |
| 51-712 | SEALING - bushing | 2 | ||
| 33 | 33-1178 | GROMMET (0.188 id) | 2 | |
| 34 | 41-3421 | CONNECTOR | 1 | |
| 35 | 41-3815 | CONNECTOR | 2 | |
| 36 | 41-3818 | CONNECTOR | 1 | |
| 37 | 41-3816 | CONNECTOR | 1 | |
| 38 | 41-3822 | CONNECTOR (10-pin) | 1 | |
| 39 | 41-3817 | CONNECTOR | 1 | |
| 40 | 41-3821 | CONNECTOR | 1 |
