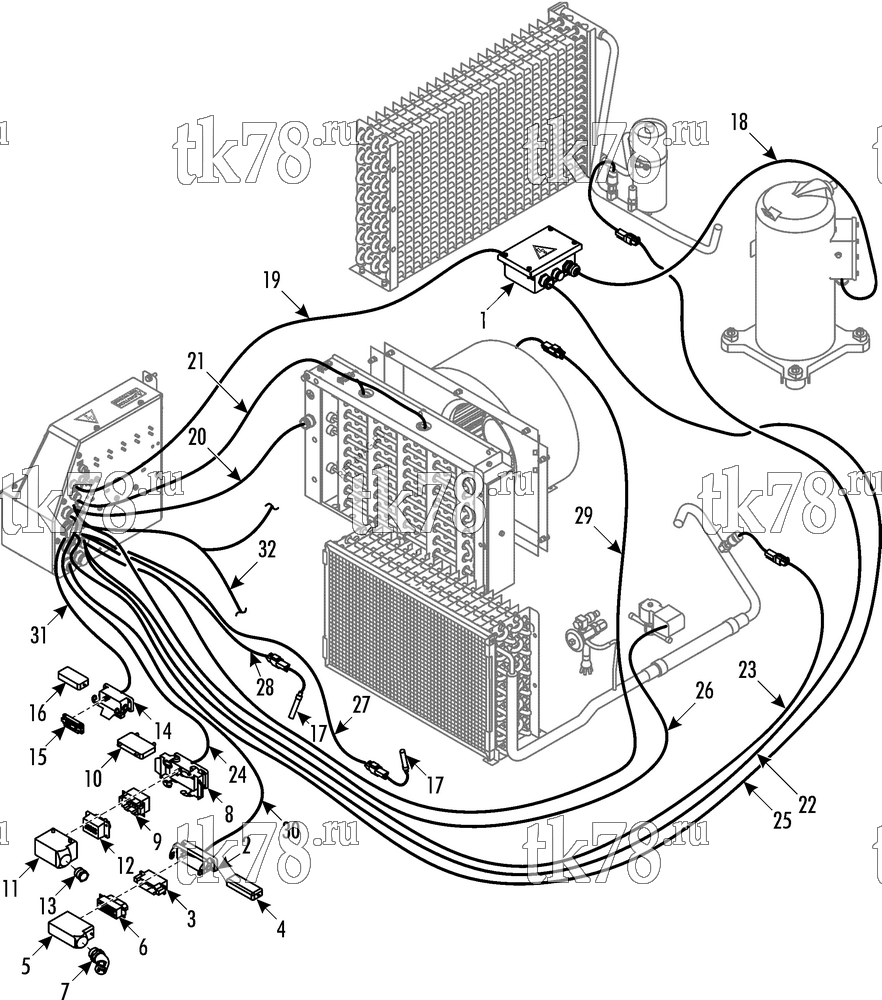

Установкa Thermo King RAC 5.5 OIW схема ELECTRICAL COMPONENTS – 229C7
Обновление от: 10/3/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | BOX - junction, blower (see186G7) | 1 | |
| 2 | 41-6914 | HOUSING - connector | 1 | |
| 55-8382 | SCREW - connector | 4 | ||
| 55-7750 | LOCKWASHER | 8 | ||
| 55-7749 | NUT | 4 | ||
| 3 | 41-6915 | CONNECTOR (25-pin) | 1 | |
| 4 | 41-6916 | CAP - protective | 1 | |
| 5 | 41-6917 | HOOD - connector | 1 | |
| 6 | 41-6918 | CONNECTOR (25-pin) | 1 | |
| 7 | 51-709 | BUSHING | 1 | |
| 41-5619 | WASHER - sealing | 1 | ||
| 8 | 41-5579 | HOOD - connector | 1 | |
| 55-8382 | SCREW - connector | 4 | ||
| 55-7750 | LOCKWASHER | 8 | ||
| 55-7749 | NUT | 4 | ||
| 9 | 41-5580 | CONNECTOR (3-pin) | 1 | |
| 10 | 41-5581 | CAP - protective | 1 | |
| 11 | 41-5617 | HOUSING - connector | 1 | |
| 12 | 41-5618 | CONNECTOR (3-pin) | 1 | |
| 13 | 51-1307 | SEALING - cable | 1 | |
| 14 | 41-6919 | HOUSING - connector | 1 | |
| 55-8382 | SCREW - connector | 4 | ||
| 55-7750 | LOCKWASHER | 8 | ||
| 55-7749 | NUT | 4 | ||
| 15 | 92-2467 | ADAPTER | 1 | |
| 16 | 41-6920 | CAP - protective | 1 | |
| 17 | 40-974 | SENSOR - temperature | 2 | |
|
40-974 OEM | Датчик температуры калиброванный | 8 770 ₽ |
|
|
10-40-974 | Датчик температуры калиброванный | 3 500 ₽ |
|
| 18 | 41-8422 | CABLE - compressor supply | 1 | |
| 19 | 41-8423 | CABLE - condenser fan overload | 1 | |
| 20 | 41-8424 | HARNESS - heater supply | 1 | |
| 21 | 41-8425 | HEATER - heater temperature switches | 1 | |
| 22 | 41-8426 | CABLE - high pressure switch (for connectors see 112D9) | 1 | |
| 23 | 41-8427 | CABLE - low pressure switch (for connectors see 112D9) | 1 | |
| 24 | 41-8428 | HARNESS - power input | 1 | |
| 25 | 41-8429 | CABLE - power supply | 1 | |
| 26 | 41-8430 | CABLE - solenoid | 1 | |
| 27 | 41-8431 | CABLE - temperature sensor, RAS (for connectors see 112D9) | 1 | |
| 28 | 41-8432 | CABLE - temperature sensor, FAS (for connectors see 112D9) | 1 | |
| 29 | 41-8433 | CABLE - temperature sensor, DAS (for connectors see 112D9) | 1 | |
| 30 | 41-8434 | HARNESS - unit control | 1 | |
| 31 | 41-8435 | CABLE - RS232 | 1 | |
| 32 | 41-8436 | WIRES - grounding | 1 |
