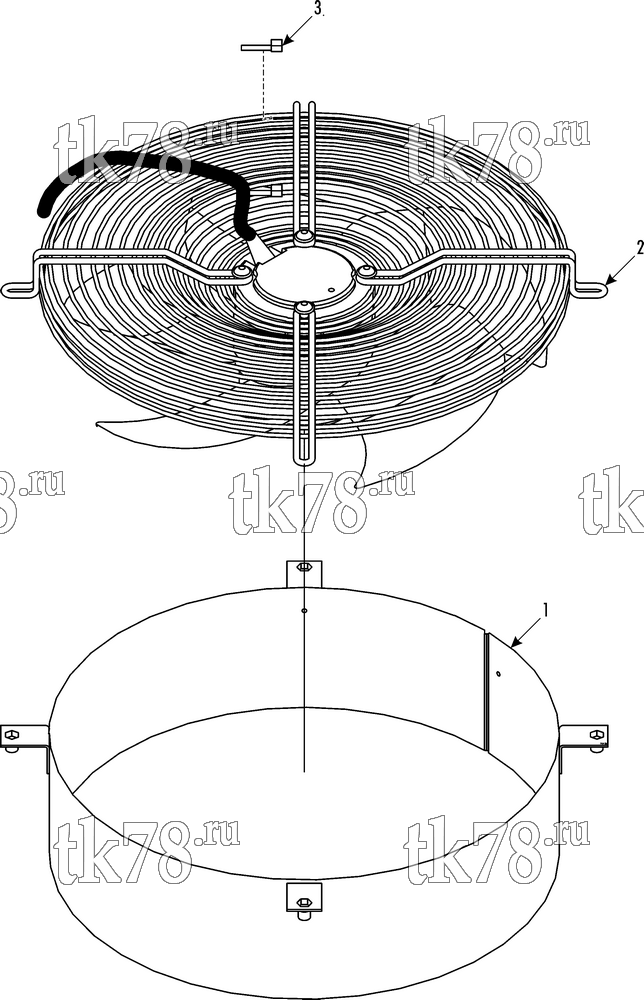

Установкa Thermo King RAC 5.5 OIW схема FAN – 229C6
Обновление от: 11/10/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1638 | FAN (incl. cable) | 1 | |
| 55-7035 | SCREW - fan & diffuser | 4 | ||
| 55-7170 | LOCKWASHER (M6) | 4 | ||
| 55-7664 | SCREW - (M4) | 1 | ||
| 55-7369 | LOCKWASHER (M4) | 1 | ||
| 55-7697 | FLATWASHER (M4) | 2 | ||
| 2 | 92-7257 | DIFUSOR - assembly | 1 | |
| 3 | 56-2330 | BANDWRAP | 2 |
