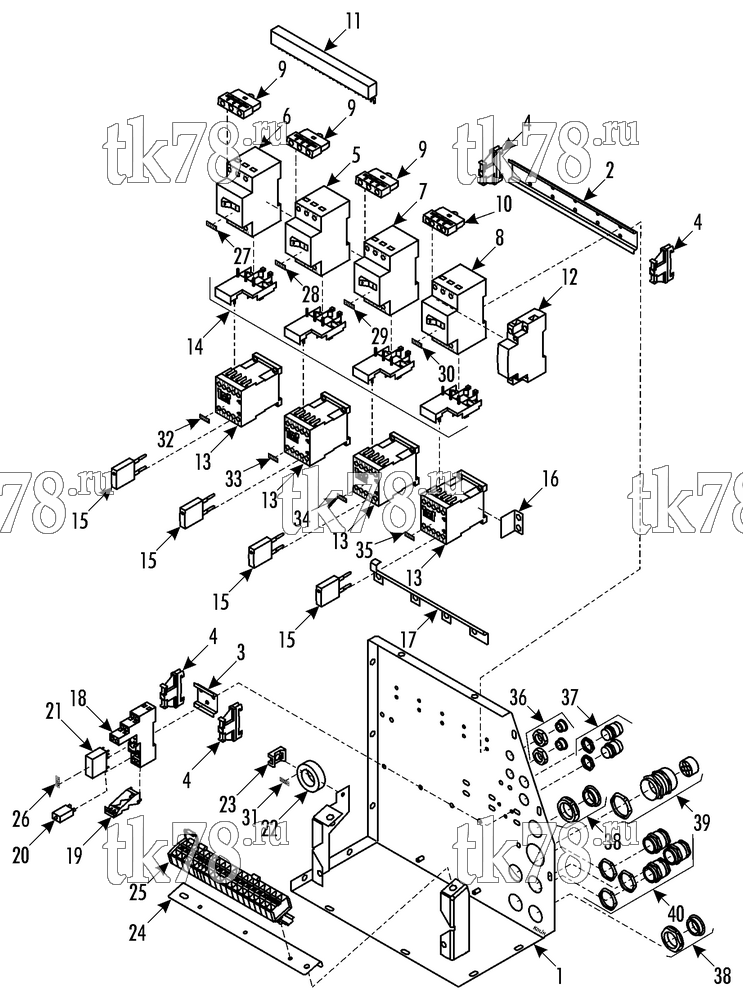

Установкa Thermo King RAC 5.5 CAG схема CONTROL BOX BOARD – 210H1
Обновление от: 2/24/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-3243 | BASE | 1 | |
| 55-8375 | NUT - captive | 7 | ||
| 2 | 92-3244 | RAIL - din | 1 | |
| 3 | 92-5617 | RAIL - din | 1 | |
| 55-5130 | RIVET - rails | 13 | ||
| 4 | 91-6465 | CLAMP | 4 | |
| 5 | 41-5601 | BREAKER - circuit (0.5 amp) | 1 | |
| 6 | 41-3808 | BREAKER - circuit (1 amp) | 1 | |
| 7 | 41-3809 | BREAKER - circuit (6.3 amp) | 1 | |
| 8 | 41-3806 | BREAKER - circuit (10 amp) | 1 | |
| 9 | 41-2931 | BLOCK - contact | 3 | |
| 10 | 41-5266 | BLOCK - contact | 1 | |
| 11 | 41-3801 | BUSBAR | 1 | |
| 12 | 41-3811 | RELAY | 1 | |
| 13 | 41-3802 | CONTACTOR (3 kW) | 4 | |
| 14 | 41-3807 | ELEMENT - coupling | 4 | |
| 15 | 41-3812 | SUPPRESSOR | 4 | |
| 16 | 92-641 | BRACKET - end | 1 | |
| 17 | 92-638 | BRACKET - breaker | 1 | |
| 55-7407 | SCREW - brackets | 6 | ||
| 55-7171 | LOCKWASHER | 6 | ||
| 55-7089 | FLATWASHER | 6 | ||
| 55-8375 | NUT - captive | 6 | ||
| 18 | 41-4384 | SOCKET - relay | 1 | |
| 19 | 41-4385 | LOCK - socket | 1 | |
| 20 | 41-4386 | DIODE - suppressor | 1 | |
| 21 | 41-6687 | RELAY (24 VDC) | 1 | |
| 22 | 304-2593 | TRANSFORMER - current | 1 | |
| 23 | 99-3281 | MOUNT - bandwrap | 1 | |
| 55-5130 | RIVET - mount | 1 | ||
| 55-2330 | BANDWRAP | 1 | ||
| 24 | 41-6926 | SUPPORT - terminal | 1 | |
| 55-7407 | SCREW - support | 2 | ||
| 55-7171 | LOCKWASHER | 2 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 25 | NSS | TERMINAL (see 210H2) | 1 | |
| 26 | 92-5618 | LABEL - electrical | 1 | |
| 27 | 92-649 | LABEL - electrical | 1 | |
| 28 | 92-650 | LABEL - electrical | 1 | |
| 29 | 92-651 | LABEL - electrical | 1 | |
| 30 | 92-652 | LABEL - electrical | 1 | |
| 31 | 92-653 | LABEL - electrical | 1 | |
| 32 | 92-654 | LABEL - electrical | 1 | |
| 33 | 92-655 | LABEL - electrical | 1 | |
| 34 | 92-656 | LABEL - electrical | 1 | |
| 35 | 92-657 | LABEL - electrical | 1 | |
| 36 | 51-1033 | PLUG | 2 | |
| 51-1032 | NUT - plug | 2 | ||
| 37 | 51-711 | BUSHING - cable | 2 | |
| 51-712 | LOCKNUT - bushing | 2 | ||
| 38 | 51-850 | PLUG | 2 | |
| 51-851 | NUT - plug | 2 | ||
| 39 | 51-1372 | BUSHING - cable | 1 | |
| 55-9560 | LOCKNUT - bushing | 1 | ||
| 51-1486 | SEALING - bushing | 1 | ||
| 40 | 55-9710 | BUSHING - cable | 3 | |
| 55-9711 | LOCKNUT - bushing | 3 |
