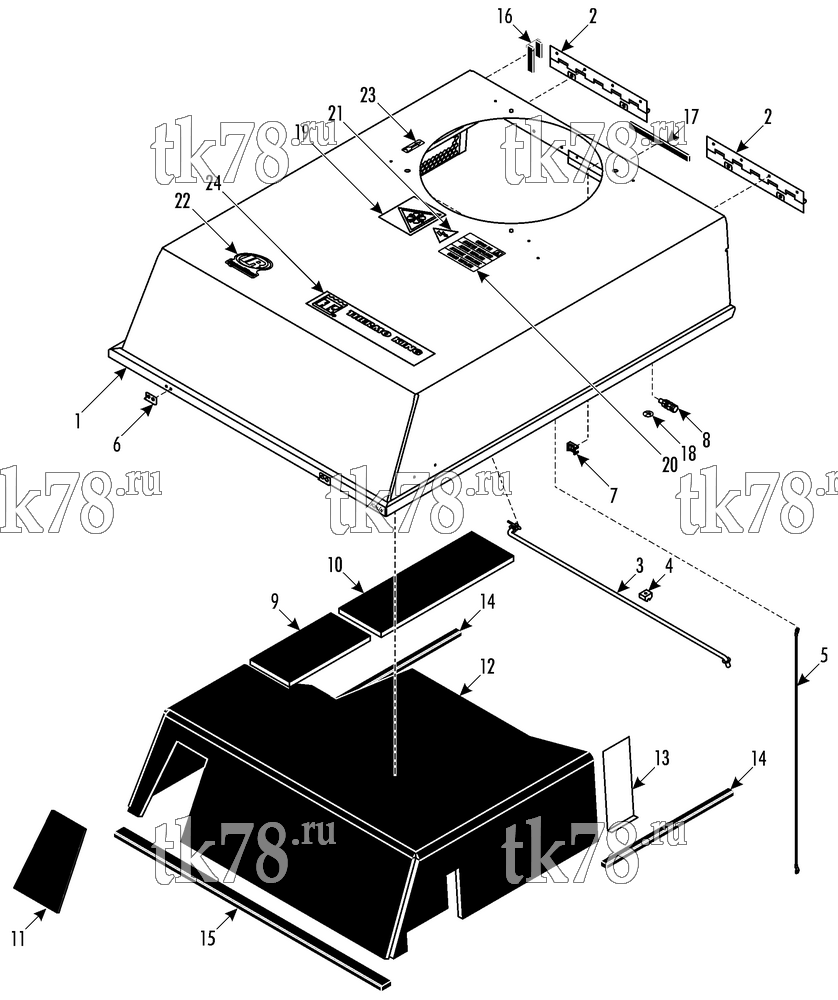

Установкa Thermo King RAC 5.5 CAG схема COVERS & INSULATION – 210G5
Обновление от: 2/24/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7451 | COVER | 1 | |
| 2 | 92-3200 | HINGE | 2 | |
| 55-5130 | RIVET - hinge | 8 | ||
| 55-7172 | SCREW - hinge | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 3 | 92-5622 | SUPPORT - cover | 1 | |
| 4 | 91-7386 | CLAMP - support | 1 | |
| 55-5130 | RIVET - clamp | 1 | ||
| 5 | 92-5623 | CORD - cover | 1 | |
| 55-7169 | SCREW - cord | 1 | ||
| 55-7089 | FLATWASHER | 1 | ||
| 55-7404 | LOCKWASHER | 1 | ||
| 55-7367 | NUT | 1 | ||
| 6 | 92-556 | KEEPER | 2 | |
| 51-1183 | RIVET - keeper | 4 | ||
| 7 | 99-3281 | MOUNT - bandwrap | 1 | |
| 55-5130 | RIVET - mount | 1 | ||
| 55-2330 | BANDWRAP | 1 | ||
| 8 | 51-104 | SCREW - ground | 1 | |
| 55-7378 | LOCKWASHER - internal tooth | 1 | ||
| 51-106 | FLATWASHER | 2 | ||
| 51-105 | NUT | 2 | ||
| 9 | 92-5164 | INSULATION | 1 | |
| 10 | 92-5624 | INSULATION | 1 | |
| 11 | 92-5625 | INSULATION | 1 | |
| 12 | 92-3202 | INSULATION | 1 | |
| 13 | 99-8246 | TAPE - tedlar | 1 | |
| 14 | 92-5163 | STRIP - neoprene | A/R | |
| 15 | 99-8562 | STRIP - neoprene | A/R | |
| 16 | 99-8429 | STRIP - neoprene | A/R | |
| 17 | 99-4976 | STRIP - neoprene | A/R | |
| 18 | 92-783 | LABEL - ground | 1 | |
| 19 | 99-8506 | NAMEPLATE - Caution, Fan | 1 | |
| 20 | 99-8507 | NAMEPLATE - Caution, Fan | 1 | |
| 21 | 99-7834 | NAMEPLATE - Caution, High Voltage | 1 | |
| 22 | 92-1307 | NAMEPLATE - IR logo | 1 | |
| 23 | 99-4931 | NAMEPLATE - arrow | 1 | |
| 24 | 91-7551 | NAMEPLATE - TK logo | 1 |
