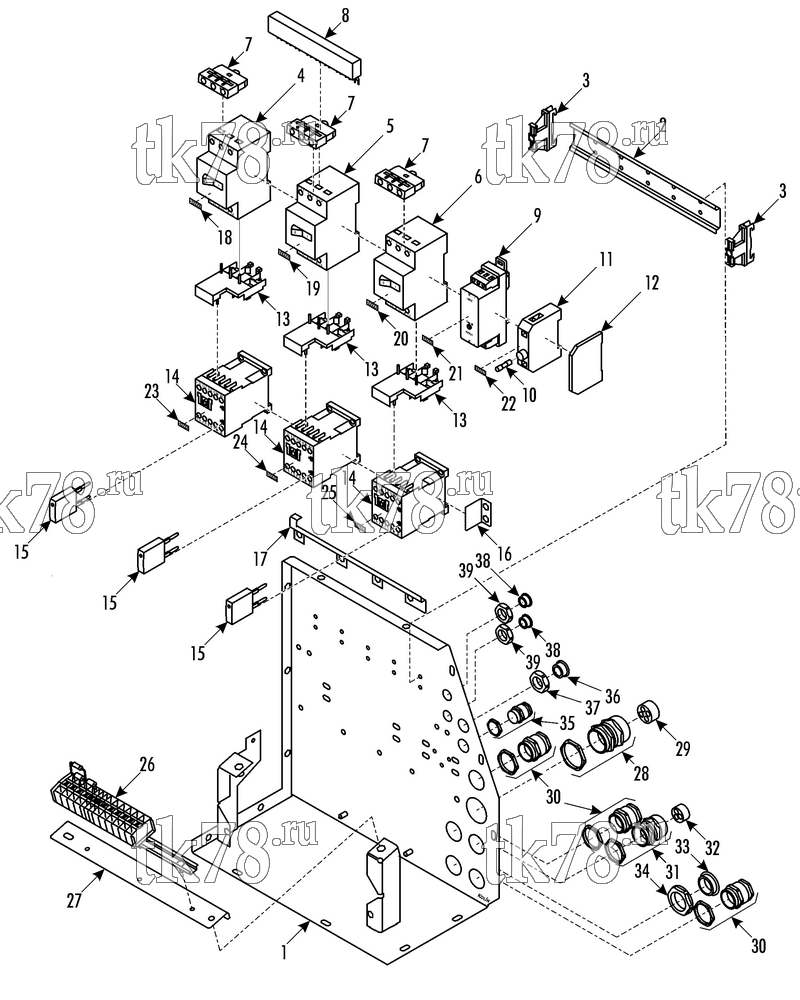

Установкa Thermo King RAC 5.5 CA схема CONTROL BOX BOARD – 219D5
Обновление от: 2/23/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-3243 | BASE | 1 | |
| 55-8375 | NUT - captive | 7 | ||
| 2 | 92-3244 | RAIL - din | 1 | |
| 55-5130 | RIVET - rail | 10 | ||
| 3 | 91-6465 | CLAMP | 2 | |
| 4 | 41-3808 | BREAKER - circuit (1 amp) | 1 | |
| 5 | 41-5601 | BREAKER - circuit (0.5 amp) | 1 | |
| 6 | 41-3809 | BREAKER - circuit (6.3 amp) | 1 | |
| 7 | 41-2931 | BLOCK - contact | 3 | |
| 8 | 41-3889 | BUSBAR | 1 | |
| 9 | 41-5727 | ARRESTERS - overvoltage | 1 | |
| 10 | 41-7829 | FUSE (4 amp) | 1 | |
| 11 | 41-3505 | HOLDER - fuse | 1 | |
| 12 | 92-2402 | PLATE - end & intermediate | 1 | |
| 13 | 41-3807 | ELEMENT - coupling | 3 | |
| 14 | 41-3802 | CONTACTOR (3 kW) | 3 | |
| 15 | 41-3812 | SUPPRESSOR | 3 | |
| 16 | 92-641 | BRACKET - end | 1 | |
| 17 | 92-638 | BRACKET - breaker | 1 | |
| 55-7407 | SCREW - brackets | 6 | ||
| 55-7171 | LOCKWASHER | 6 | ||
| 55-7089 | FLATWASHER | 6 | ||
| 55-8375 | NUT - captive | 6 | ||
| 18 | 92-649 | LABEL - electrical | 1 | |
| 19 | 92-650 | LABEL - electrical | 1 | |
| 20 | 92-651 | LABEL - electrical | 1 | |
| 21 | 92-6276 | LABEL - PR1 | 1 | |
| 22 | 92-660 | LABEL - electrical | 1 | |
| 23 | 92-654 | LABEL - electrical | 1 | |
| 24 | 92-655 | LABEL - electrical | 1 | |
| 25 | 92-656 | LABEL - electrical | 1 | |
| 26 | NSS | TERMINAL (see 206F4) | 1 | |
| 27 | 41-6926 | SUPPORT - terminal | 1 | |
| 55-7407 | SCREW - support | 2 | ||
| 55-7171 | LOCKWASHER | 2 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 28 | 51-1372 | BUSHING - cable | 1 | |
| 55-9560 | LOCKNUT - bushing | 1 | ||
| 29 | 51-1486 | SEALING - bushing | 1 | |
| 30 | 55-9710 | BUSHING - cable | 3 | |
| 55-9711 | LOCKNUT - bushing | 3 | ||
| 31 | 51-1400 | BUSHING - cable | 1 | |
| 55-9711 | LOCKNUT - bushing | 1 | ||
| 32 | 41-6671 | SEALING - bushing | 1 | |
| 33 | 51-850 | PLUG | 1 | |
| 34 | 51-851 | NUT - plug | 1 | |
| 35 | 51-711 | BUSHING - cable | 1 | |
| 51-712 | LOCKNUT - bushing | 1 | ||
| 36 | 51-1035 | PLUG | 1 | |
| 37 | 51-1034 | NUT - plug | 1 | |
| 38 | 51-1033 | PLUG | 2 | |
| 39 | 51-1032 | NUT - plug | 2 |
