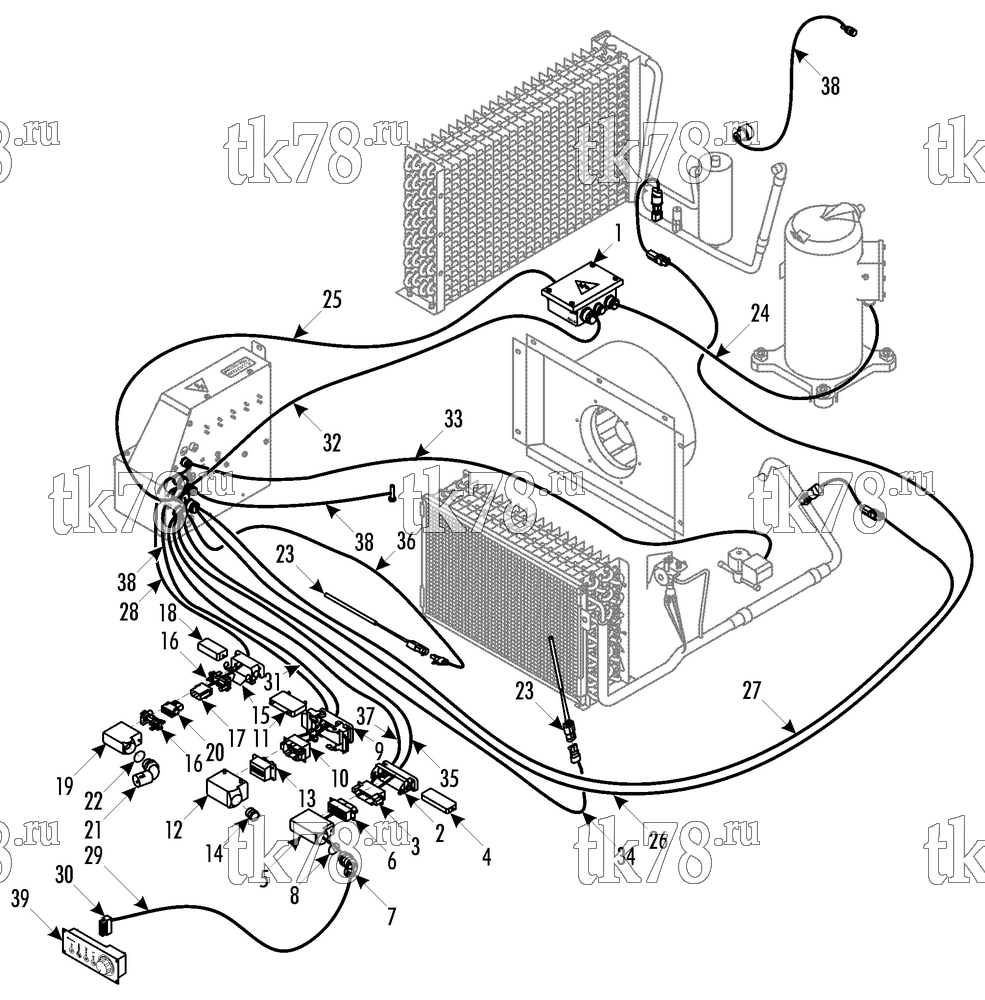

Установкa Thermo King RAC 5.5 CA схема ELECTRICAL COMPONENTS – 219D3
Обновление от: 2/28/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | BOX - junction, blower (see 186G7) | 1 | |
| 2 | 41-6914 | HOUSING - connector | 1 | |
| 55-8382 | SCREW - connector | 4 | ||
| 55-7750 | LOCKWASHER | 8 | ||
| 55-7749 | NUT | 4 | ||
| 3 | 41-6915 | CONNECTOR (25-pin) | 1 | |
| 4 | 41-6916 | CAP - protective | 1 | |
| 5 | 41-6917 | HOOD - connector | 1 | |
| 6 | 41-6918 | CONNECTOR (25-pin) | 1 | |
| 7 | 51-709 | BUSHING | 1 | |
| 8 | 41-5619 | WASHER - sealing | 1 | |
| 9 | 41-5579 | HOOD - connector | 1 | |
| 55-8382 | SCREW - connector | 4 | ||
| 55-7750 | LOCKWASHER | 8 | ||
| 55-7749 | NUT | 4 | ||
| 10 | 41-5580 | CONNECTOR (3-pin) | 1 | |
| 11 | 41-5581 | CAP - protective | 1 | |
| 12 | 41-5617 | HOUSING - connector | 1 | |
| 13 | 41-5618 | CONNECTOR (3-pin) | 1 | |
| 14 | 51-1307 | SEALING - cable | 1 | |
| 15 | 41-6919 | HOUSING - connector | 1 | |
| 55-8382 | SCREW - connector | 4 | ||
| 55-7750 | LOCKWASHER | 8 | ||
| 55-7749 | NUT | 4 | ||
| 16 | 41-5928 | FRAME - fixing | 2 | |
| 17 | 41-5300 | CONNECTOR | 1 | |
| 18 | 41-6920 | CAP - protective | 1 | |
| 19 | 41-5927 | HOOD - connector | 1 | |
| 20 | 41-5523 | CONNECTOR | 1 | |
| 21 | 51-687 | BUSHING | 1 | |
| 22 | 41-5619 | WASHER - sealing | 1 | |
| 23 | 41-4157 | SENSOR - temperature | 2 | |
| 24 | 41-6371 | CABLE - compressor supply | 1 | |
| 25 | 41-6375 | CABLE - condenser fan overload | 1 | |
| 26 | 41-6373 | CABLE - low pressure switch (for connectors see 112D9) | 1 | |
| 27 | 41-6372 | CABLE - high pressure switch (for connectors see 112D9) | 1 | |
| 28 | 41-6921 | HARNESS - low voltage outlet supply | 1 | |
| 29 | 41-6922 | HARNESS - low voltage control outlet | 1 | |
| 30 | 41-661 | CONNECTOR (14 term) | 1 | |
| 31 | 41-6923 | HARNESS - power input | 1 | |
| 32 | 41-6370 | CABLE - power supply | 1 | |
| 33 | 41-6376 | CABLE - solenoid | 1 | |
| 34 | 41-6377 | CABLE - temperature sensor, CTS (for connectors see 115D14) | 1 | |
| 35 | 41-6924 | CABLE - temperature sensor, CTS & RTS | 1 | |
| 36 | 41-6374 | CABLE - temperature sensor, RTS (for connectors see 115D14) | 1 | |
| 37 | 41-6925 | HARNESS - unit control | 1 | |
| 38 | 41-7828 | WIRES - grounding | 1 | |
| 39 | 41-1959 | ClimaAIRE | 1 |
