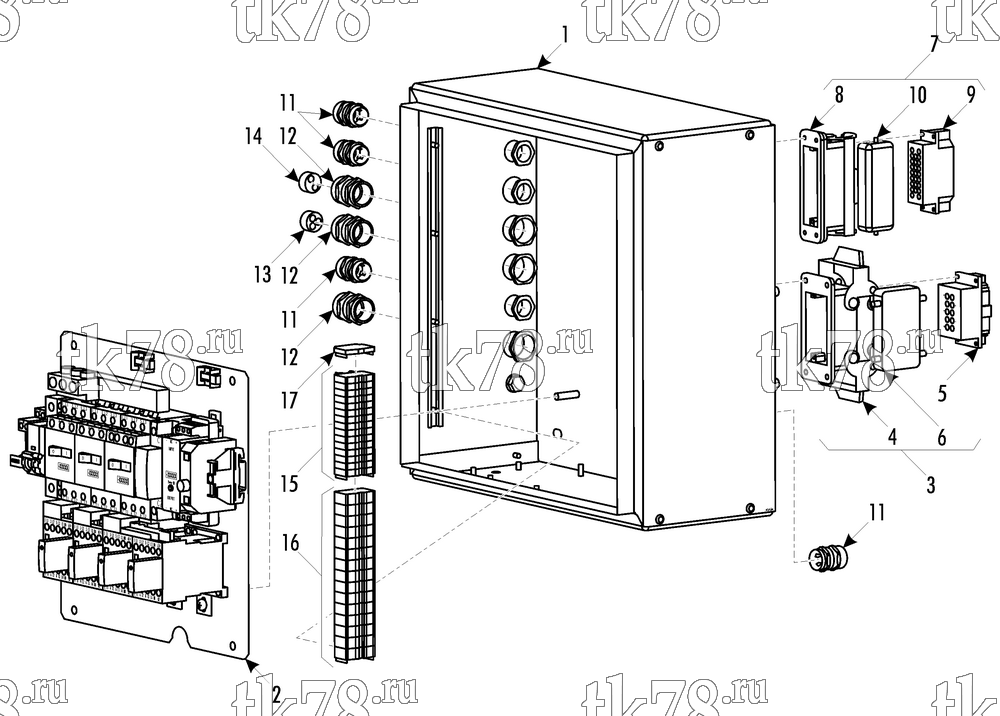

Установкa Thermo King RAC 40 TZV схема CONTROL BOX – 252A6
Обновление от: 2/17/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | CONTROL BOX PANEL (see 252A8) | 1 | |
| 2 | NSS | SUBPANEL AC (see 227C1) | 1 | |
| 3 | 41-8032 | CONNECTOR - power, assembly | 1 | |
| 4 | 41-5579 | HOOD - connector | 1 | |
| 5 | 41-5580 | CORE - connector | 1 | |
| 6 | 41-5581 | CAP - connector | 1 | |
| 55-7664 | SCREW - connector | 4 | ||
| 55-7369 | LOCKWASHER | 4 | ||
| 7 | 41-8034 | CONNECTOR - line, assembly | 1 | |
| 8 | 41-6914 | HOOD - connector | 1 | |
| 9 | 41-6915 | CORE - connector | 1 | |
| 10 | 41-6916 | CAP - connector | 1 | |
| 55-8382 | SCREW - connectors | 4 | ||
| 55-7750 | LOCKWASHER | 8 | ||
| 11 | 51-848 | BUSHING - cable | 4 | |
| 55-9558 | LOCKNUT - bushing | 4 | ||
| 12 | 51-1400 | BUSHING - cable | 3 | |
| 55-9711 | LOCKNUT - bushing | 3 | ||
| 13 | 41-6671 | SEALING - bushing | 1 | |
| 14 | 41-6682 | SEALING - bushing | 1 | |
| 15 | 41-3892 | TERMINAL | 15 | |
| 16 | 41-3893 | TERMINAL - double | 15 | |
| 17 | 41-3894 | PLATE - end | 1 |
