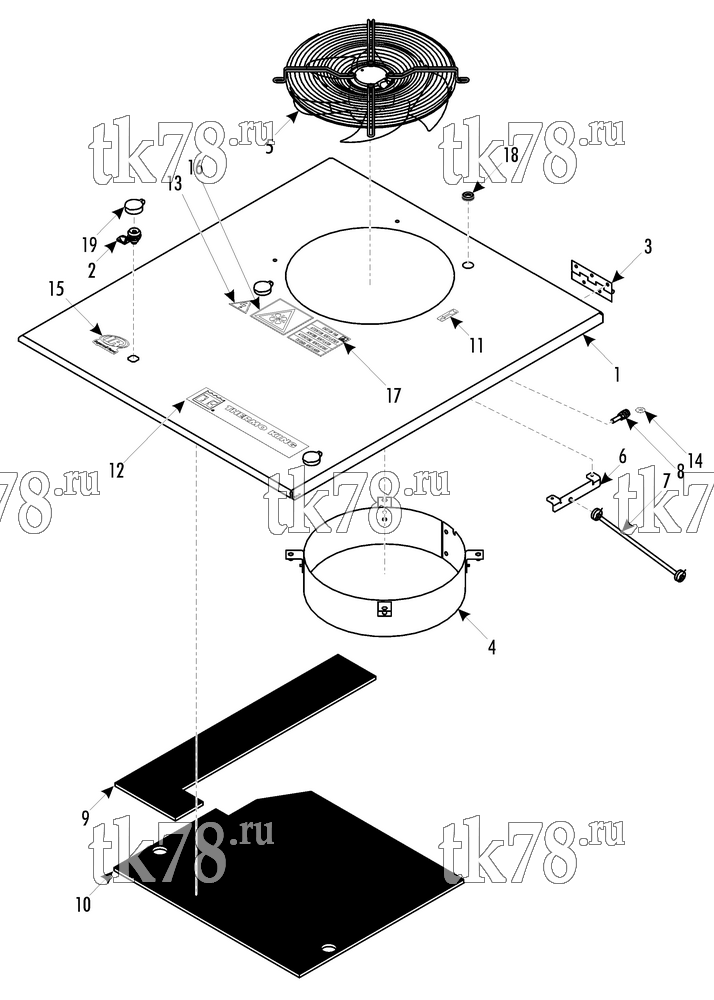

Установкa Thermo King RAC 40 TZV схема COVER - TOP – 245F1
Обновление от: 12/7/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8042 | COVER - top | 1 | |
| 2 | 92-6647 | LATCH | 3 | |
| 3 | 92-2444 | HINGE | 2 | |
| 55-7172 | SCREW - hinge | 10 | ||
| 55-7170 | LOCKWASHER | 10 | ||
| 55-7373 | NUT - captive | 6 | ||
| 55-9837 | NUT - captive | 4 | ||
| 4 | 92-6648 | DIFFUSER - assy | 1 | |
| 51-290 | NUT - captive | 4 | ||
| 5 | 78-1638 | FAN | 1 | |
| 55-7372 | SCREW - fan & diffuser | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-8893 | FLATWASHER | 4 | ||
| 56-2330 | BANDWRAP | 3 | ||
| 6 | 92-6649 | BRACE - support cover | 1 | |
| 55-5130 | RIVET - brace | 2 | ||
| 7 | 92-6650 | SUPPORT - cover | 1 | |
| 8 | 55-8137 | STUD - ground | 1 | |
| 55-7085 | FLATWASHER | 2 | ||
| 55-7342 | LOCKWASHER | 1 | ||
| 55-7825 | NUT | 1 | ||
| 9 | 92-6651 | INSULATION | 1 | |
| 10 | 92-6652 | INSULATION | 1 | |
| 11 | 99-4931 | NAMEPLATE - arrow | 1 | |
| 12 | 91-7551 | NAMEPLATE - TK Logo | 1 | |
| 13 | 99-7834 | NAMEPLATE - Caution, High Voltage | 1 | |
| 14 | 92-783 | LABEL - ground | 1 | |
| 15 | 92-1307 | NAMEPLATE - IR Logo | 1 | |
| 16 | 99-8506 | NAMEPLATE - Caution, Fan | 1 | |
| 17 | 99-8507 | NAMEPLATE - Caution, Fan | 1 | |
| 18 | 33-739 | GROMMET (0.5 id) | 1 | |
| 19 | 92-7253 | SEALING - cover | 3 |
