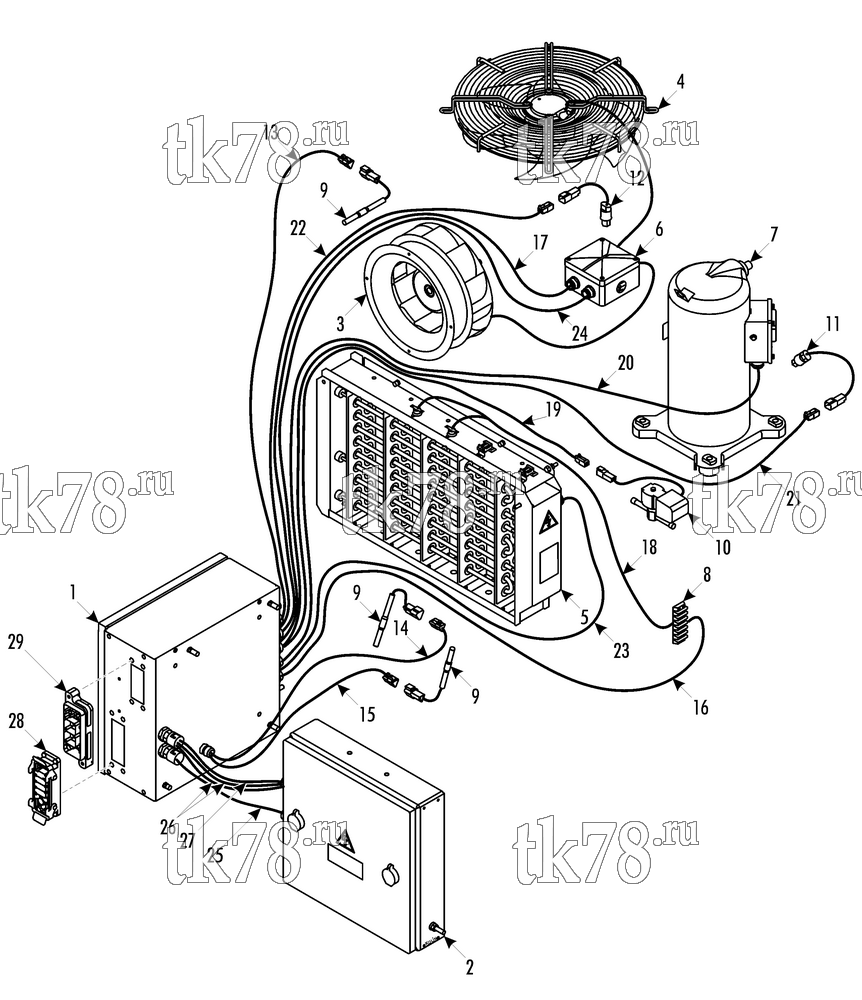

Установкa Thermo King RAC 40 TNN1 схема ELECTRICAL COMPONENTS – 254E7
Обновление от: 3/28/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | ELECTRO BOX (see 254E3) | 1 | |
| 2 | NSS | CONTROLLER BOX (see 254E5) | 1 | |
| 3 | NSS | BLOWER (see 227B7) | 1 | |
| 4 | NSS | FAN (see 245F1) | 1 | |
| 5 | NSS | HEATER (see 227B6) | 1 | |
| 6 | NSS | TERMINAL BOX BLOWER (see227B8) | 1 | |
| 7 | NSS | COMPRESSOR (see 186G8) | 1 | |
| 8 | 44-5350 | BOARD - term | 1 | |
| 55-7664 | SCREW - board | 2 | ||
| 55-7861 | LOCKWASHER | 2 | ||
| 51-1181 | NUT - captive, closed | 2 | ||
| 9 | 41-7513 | SENSOR - temperature (service set - connector incl.) | 3 | |
| 10 | 61-382 | VALVE - solenoid (see 227H7) | 1 | |
| 11 | 41-5899 | SWITCH - LPCO (service set - connector incl., see 227B5) | 1 | |
| 12 | 41-6318 | SWITCH - HPCO (service set - connector incl., see 227B4) | 1 | |
| 13 | 42-288 | CABLE - temperature sensor (DAS) | 1 | |
| 14 | 42-290 | CABLE - temperature sensor (RAS) | 1 | |
| 15 | 42-289 | CABLE - temperature sensor (FAS) | 1 | |
| 16 | 41-8041 | CABLE - heater temperature sensor | 1 | |
| 17 | 42-284 | CABLE - evaporator fan supply | 1 | |
| 18 | 41-8040 | WIRES - high temperature | 1 | |
| 19 | 41-8042 | CABLE - solenoid | 1 | |
| 20 | 41-8039 | CABLE - compressor power | 1 | |
| 21 | 41-8043 | CABLE - low pressure sensor | 1 | |
| 22 | 41-8044 | CABLE - high pressure sensor | 1 | |
| 23 | 41-8045 | CABLE - heater power | 1 | |
| 24 | 41-8038 | CABLE - condenser fan power | 1 | |
| 25 | 42-354 | WIRES - electrobox x controller box | 1 | |
| 26 | 42-281 | CABLE - CAN | 2 | |
| 27 | 42-282 | CABLE - RS232 | 1 | |
| 41-8050 | WIRE - grounding (22 inch) | 3 | ||
| 41-8051 | WIRE - grounding (46 inch) | 1 | ||
| 41-8052 | WIRE - grounding (9 inch) | 3 | ||
| 28 | 42-317 | CONNECTOR - XC2 (see 254E9) | 1 | |
| 29 | 42-219 | CONNECTOR - XC1 (see 254E9) | 1 |
