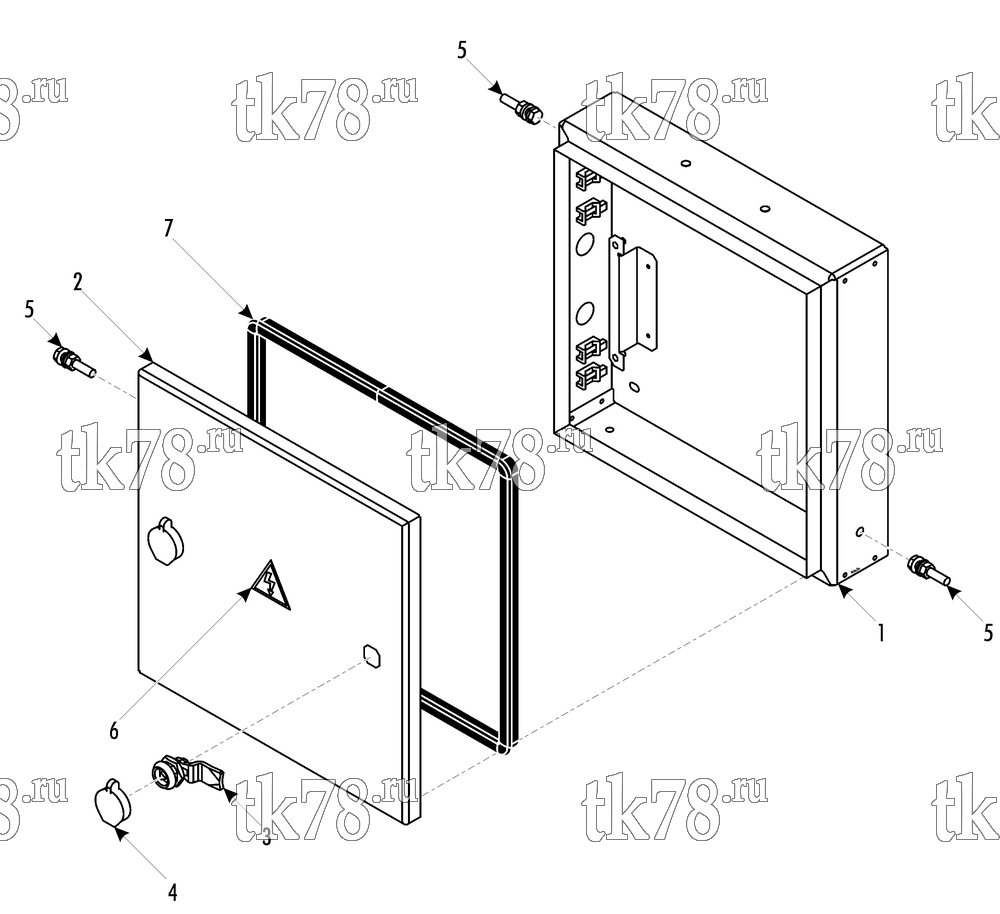

Установкa Thermo King RAC 40 TNN1 схема CONTROLLER BOX PANELS – 254E6
Обновление от: 3/28/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-9492 | BOX - sealed assembly | 1 | |
| 55-7172 | SCREW - box to unit frame | 4 | ||
| 51-871 | WASHER - sealing | 4 | ||
| 55-9814 | NUT - captive, closed | 4 | ||
| 2 | 92-9493 | DOOR - box | 1 | |
| 3 | 92-5927 | LATCH | 2 | |
| 4 | 92-7253 | COVER - sealing | 2 | |
| 5 | 55-8137 | SCREW - ground | 3 | |
| 55-7085 | FLATWASHER | 6 | ||
| 55-7342 | LOCKWASHER | 3 | ||
| 55-7825 | NUT | 3 | ||
| 6 | 99-7834 | NAMEPLATE - Caution High Voltage | 1 | |
| 7 | 92-146 | RUBBER - profile | A/R |
