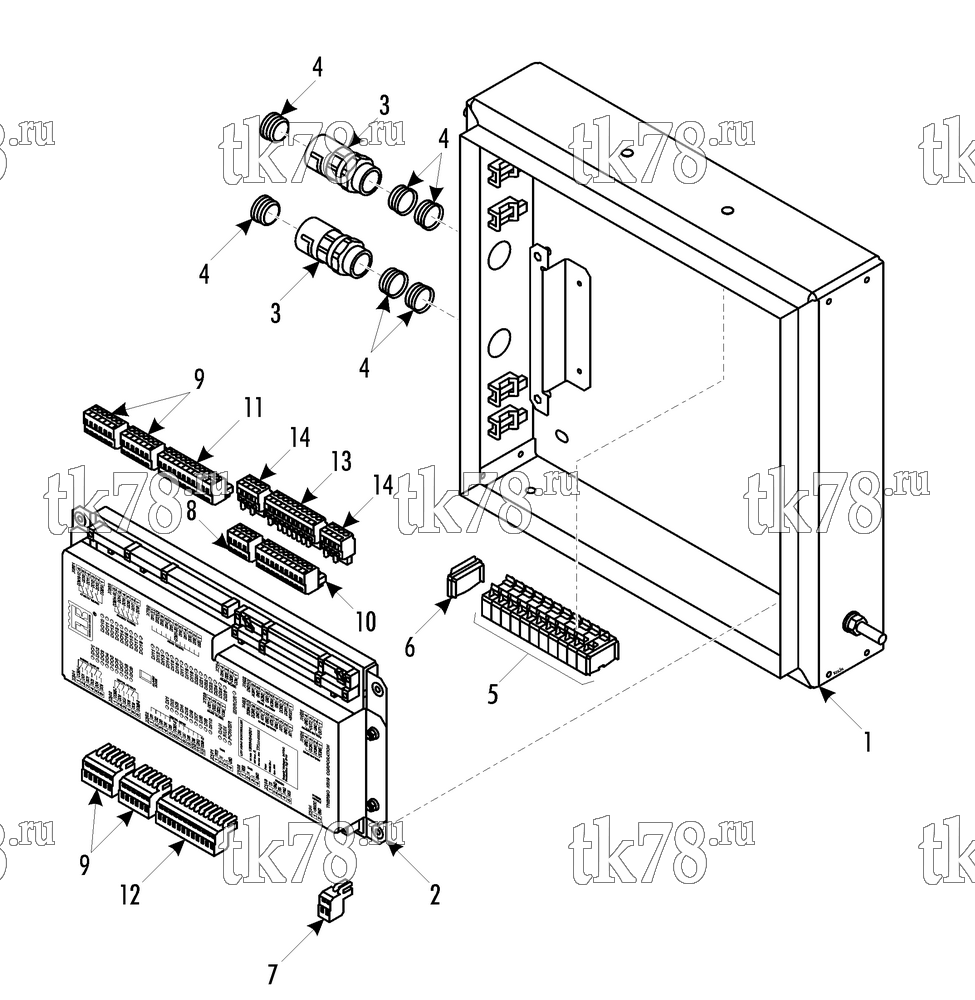

Установкa Thermo King RAC 40 TNN1 схема CONTROLLER BOX – 254E5
Обновление от: 3/28/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | CONTROLLER BOX PANELS (see 254E6) | 1 | |
| 2 | 45-2436 | CONTROLLER - assy | 1 | |
| 55-7664 | SCREW - controller | 4 | ||
| 55-7369 | LOCKWASHER | 4 | ||
| 3 | 51-710 | BUSHING - cable | 2 | |
| 55-9711 | LOCKNUT | 2 | ||
| 4 | 41-7977 | INSERT - seal | 6 | |
| 5 | 41-3893 | TERMINAL - double | 11 | |
| 6 | 41-3894 | PLATE - end | 1 | |
| 7 | 41-3928 | CONNECTOR | 1 | |
| 8 | 41-3929 | CONNECTOR | 1 | |
| 9 | 41-3930 | CONNECTOR | 4 | |
| 10 | 41-3931 | CONNECTOR | 1 | |
| 11 | 41-3932 | CONNECTOR | 1 | |
| 12 | 41-3933 | CONNECTOR | 1 | |
| 13 | 41-3822 | CONNECTOR (10-pin) | 1 | |
| 14 | 41-3935 | CONNECTOR - 4-pin | 2 |
