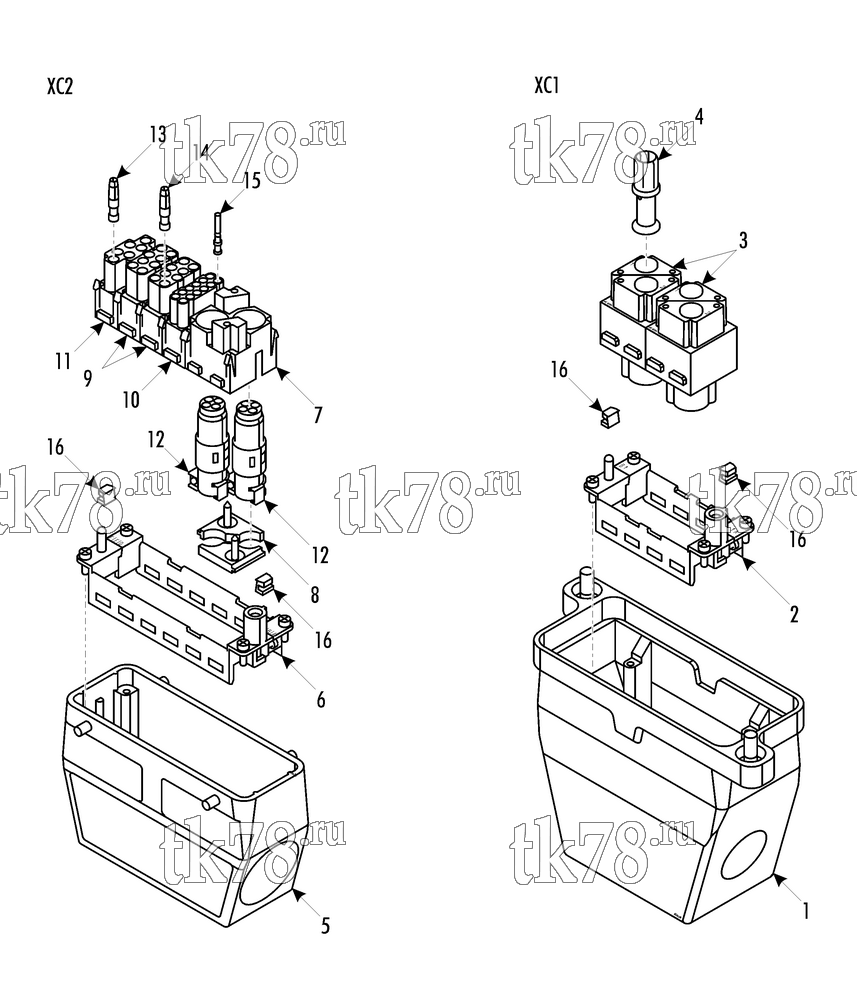

Установкa Thermo King RAC 40 TNN1 схема MATING CONNECTORS – 254E0
Обновление от: 3/28/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 42-286 | HOUSING - connector | 1 | |
| 2 | 41-5550 | FRAME - fixing | 1 | |
| 3 | 42-283 | COVER - connector, female | 2 | |
| 4 | 42-287 | PIN | 3 | |
| 5 | 42-285 | HOUSING - connector | 1 | |
| 6 | 41-5296 | FRAME - fixing | 1 | |
| 7 | 41-5931 | COVER - connector, female | 1 | |
| 8 | 41-5298 | BRACKET | 1 | |
| 9 | 41-5523 | COVER - connector, female | 2 | |
| 10 | 41-7144 | COVER - connector, female | 1 | |
| 11 | 41-7028 | COVER - connector, female | 1 | |
| 12 | 41-7542 | CONTACT - female | 2 | |
| 13 | 41-5527 | PIN | 2 | |
| 14 | 41-9035 | PIN | 4 | |
| 15 | 41-9036 | PIN | 12 | |
| 16 | 41-7517 | INSERT - fixing | 4 |
