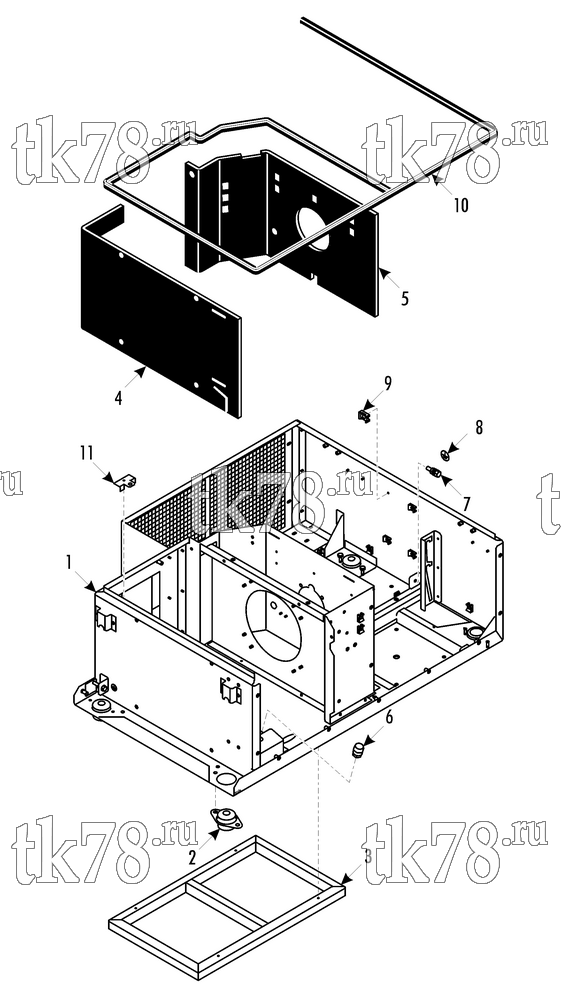

Установкa Thermo King RAC 40 CFD схема FRAME – 227A9
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7952 | FRAME - weld assembly | 1 | |
| 2 | 11-9626 | ISOLATOR | 4 | |
| 55-6993 | SCREW - isolator | 8 | ||
| 51-953 | WASHER | 16 | ||
| 55-7066 | LOCKWASHER | 8 | ||
| 55-7825 | NUT | 8 | ||
| 3 | 98-7953 | BORDER - assembly | 1 | |
| 51-1183 | RIVET | A/R | ||
| 4 | 92-6660 | INSULATION | 1 | |
| 5 | 92-6661 | INSULATION | 1 | |
| 6 | 51-711 | BUSHING - cable | 3 | |
| 51-712 | LOCKNUT - bushing | 3 | ||
| 7 | 55-8137 | SCREW - ground | 3 | |
| 55-7085 | FLATWASHER | 6 | ||
| 55-7342 | LOCKWASHER | 3 | ||
| 55-7825 | NUT | 3 | ||
| 8 | 92-783 | LABEL - ground | 3 | |
| 9 | 99-3281 | MOUNT - bandwrap | A/R | |
| 51-2030 | RIVET - mount | A/R | ||
| 56-2330 | BANDWRAP | A/R | ||
| 10 | 92-146 | GASKET - molded | A/R | |
| 11 | 92-8971 | BRACKET - shield | 2 |
