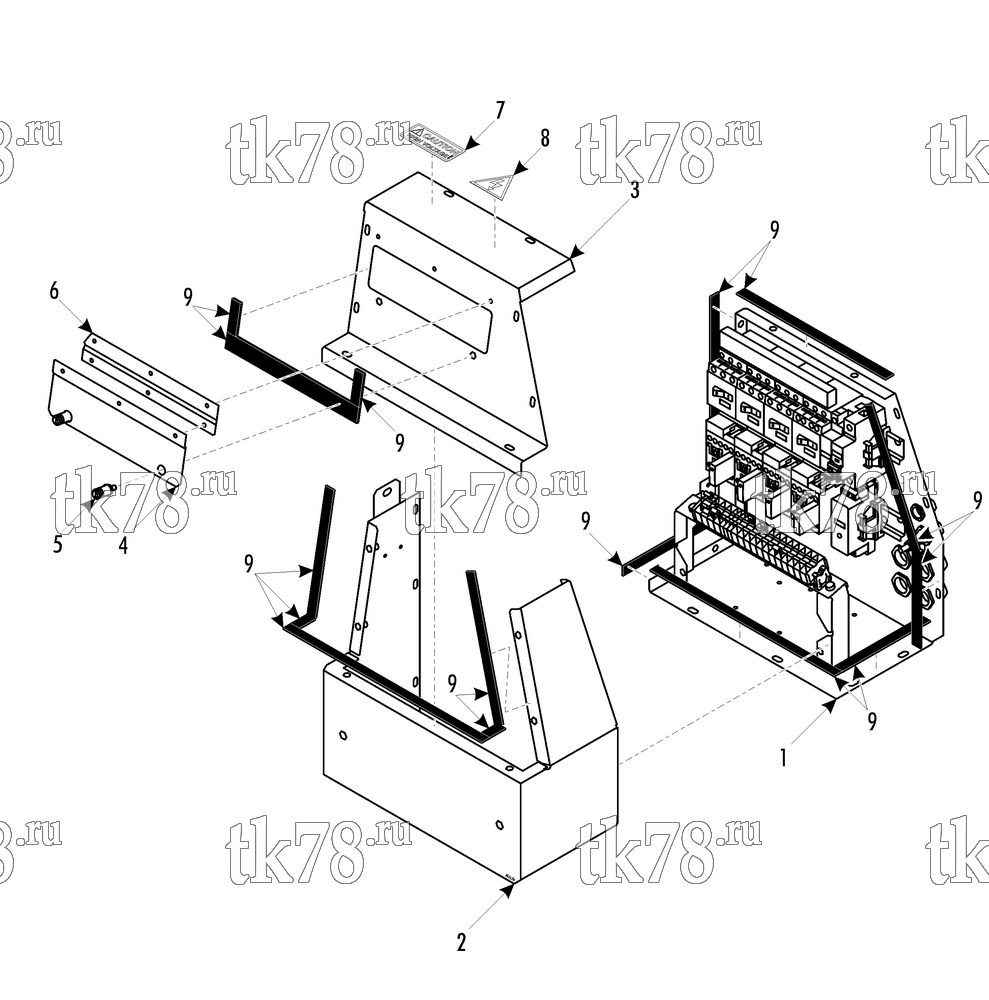

Установкa Thermo King RAC 4 W1 схема CONTROL BOX – 257A6
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | BOARD - control box (see 257A7) | 1 | |
| 2 | 92-5192 | PANEL - basic | 1 | |
| 55-6994 | SCREW - control box to unit (20 mm) | 1 | ||
| 55-8316 | SCREW - control box to unit (40 mm) | 2 | ||
| 55-7170 | LOCKWASHER | 3 | ||
| 55-7075 | FLATWASHER | 3 | ||
| 55-7407 | SCREW - panel to board | 12 | ||
| 55-7171 | LOCKWASHER | 12 | ||
| 55-7089 | FLATWASHER | 12 | ||
| 3 | 92-3231 | COVER | 1 | |
| 55-7407 | SCREW - cover | 8 | ||
| 55-7171 | LOCKWASHER | 8 | ||
| 55-7089 | FLATWASHER | 8 | ||
| 4 | 92-3232 | DOOR - access | 1 | |
| 5 | 55-9758 | SCREW - captive | 2 | |
| 55-8375 | NUT - captive | 2 | ||
| 6 | 92-3233 | HINGE - access door | 1 | |
| 55-5130 | RIVET - hinge | 6 | ||
| 55-7697 | FLATWASHER | 6 | ||
| 7 | 99-5908 | NAMEPLATE - caution | 1 | |
| 8 | 99-7834 | NAMEPLATE - caution, high voltage | 1 | |
| 9 | 33-2668 | STRIP - neoprene | A/R |
