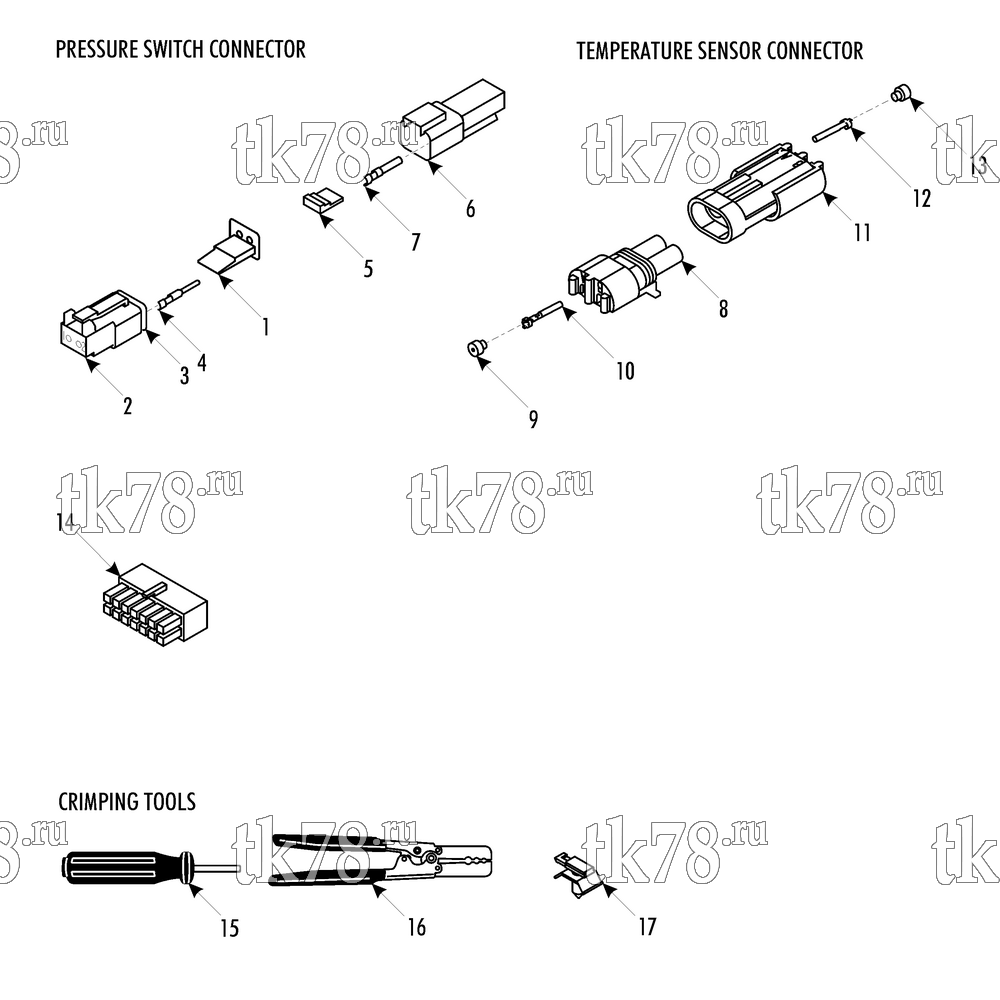

Установкa Thermo King RAC 4 W1 схема CONNECTORS – 257A0
Обновление от: 2/9/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-9586 | WEDGE - 2-pin plug | 2 | |
| 2 | 44-9585 | PLUG - 2-pin | 2 | |
| 3 | 33-2392 | SEAL | A/R | |
| 4 | 44-9276 | SOCKET - 18 gauge | 4 | |
| 5 | 44-9590 | WEDGE - 2-pin | 2 | |
| 6 | 44-9589 | RECEPTACLE - 2-pin | 2 | |
| 7 | 44-9597 | PIN - 14-16 gauge | 4 | |
| 8 | 44-5838 | CONNECTOR - tower 2-pin | 2 | |
| 9 | 44-5885 | SEAL - cable | 4 | |
| 10 | 44-5884 | TERMINAL - female 20-18 gauge | 4 | |
| 11 | 44-5835 | CONNECTOR - shroud 2-pin | 2 | |
| 12 | 44-5883 | TERMINAL - male 18-20 gauge | 4 | |
| 13 | 44-5885 | SEAL - cable | 4 | |
| 14 | 41-661 | CONNECTOR - in-line (14 term) | 1 | |
| 15 | 204-623 | TOOL - pin removal | 1 | |
| 16 | 204-624 | TOOL - terminal crimper | 1 | |
| 17 | 55-9704 | CLIP - self-locking | A/R |
