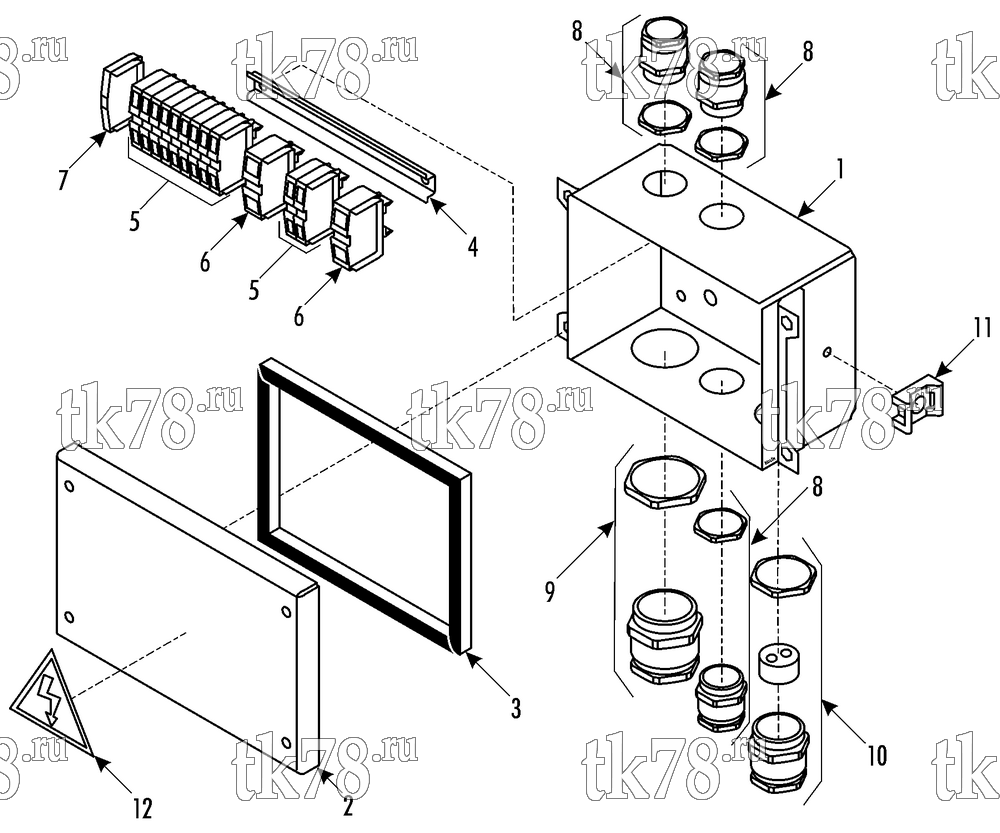

Установкa Thermo King RAC 4 STD схема JUNCTION BOX - BLOWER – 186G7
Обновление от: 2/9/12
| № | TK # | Описание | Кол-во Цена |
|---|---|---|---|
| 1 | 92-3239 | BOX - junction | 1 |
| 2 | 92-3240 | COVER - box | 1 |
| 55-7696 | SCREW - cover | 4 | |
| 55-7697 | FLATWASHER | 4 | |
| 55-7866 | NUT - captive | 4 | |
| 3 | 33-3276 | GASKET - cover | 1 |
| 4 | 92-3241 | RAIL - din | 1 |
| 55-2260 | RIVET - rail | 2 | |
| 5 | 41-3892 | TERMINAL - single | 11 |
| 6 | 41-3893 | TERMINAL - double | 2 |
| 7 | 41-3894 | TERMINAL - end | 1 |
| 8 | 55-9554 | BUSHING - cable | 3 |
| 55-9558 | LOCKNUT | 3 | |
| 9 | 55-9710 | BUSHING - cable | 1 |
| 55-9711 | LOCKNUT | 1 | |
| 10 | 51-1400 | BUSHING - cable | 1 |
| 41-6682 | SEALING - bushing | 1 | |
| 55-9711 | LOCKNUT | 1 | |
| 11 | 99-3281 | MOUNT - cable tie | 1 |
| 51-2030 | RIVET - mount | 1 | |
| 55-2330 | BANDWRAP | 1 | |
| 12 | 99-7834 | NAMEPLATE - Caution | 1 |
