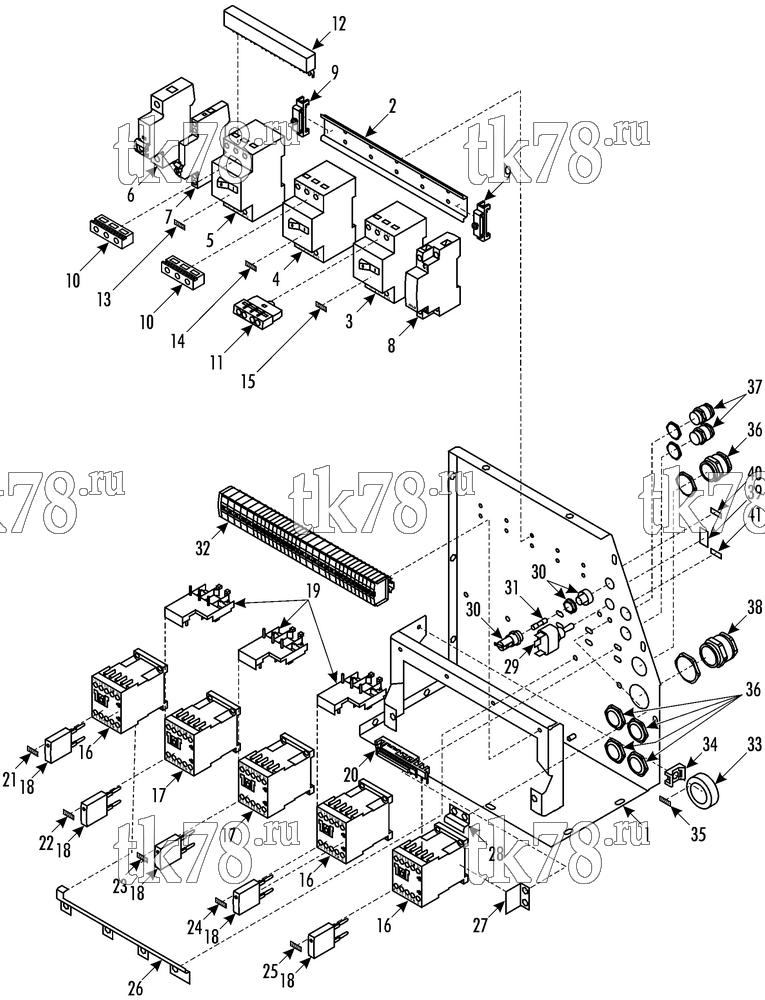

Установкa Thermo King RAC 4 STD схема CONTROL BOX BOARD – 186G3
Обновление от: 9/11/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-3243 | BASE | 1 | |
| 55-8375 | NUT - captive | 7 | ||
| 2 | 92-3244 | RAIL - din | 1 | |
| 55-5130 | RIVET - rail | 10 | ||
| 3 | 41-3885 | BREAKER - circuit (5.0 amp) | 1 | |
| 4 | 41-3886 | BREAKER - circuit (8.0 amp) | 1 | |
| 5 | 41-5601 | BREAKER - circuit (0.5 amp) | 1 | |
| 6 | 41-5602 | BREAKER - circuit (6.0 amp) | 1 | |
| 7 | 41-5603 | SWITCH - auxiliary circuit | 1 | |
| 8 | 41-3811 | RELAY - shunt release | 1 | |
| 9 | 91-6465 | CLAMP | 2 | |
| 10 | 41-2931 | BLOCK - contact | 2 | |
| 11 | 41-5266 | BLOCK - contact | 1 | |
| 12 | 41-3889 | BUSBAR | 1 | |
| 13 | 92-650 | LABEL - electrical | 1 | |
| 14 | 92-651 | LABEL - electrical | 1 | |
| 15 | 92-652 | LABEL - electrical | 1 | |
| 16 | 41-3802 | CONTACTOR (3 kW) | 3 | |
| 17 | 41-3803 | CONTACTOR (3 kW) | 2 | |
| 18 | 41-3812 | SUPPRESSOR | 5 | |
| 19 | 41-3807 | ELEMENT - coupling | 3 | |
| 20 | 41-5604 | CONTACTOR - reverser | 1 | |
| 21 | 92-654 | LABEL - electrical | 1 | |
| 22 | 92-655 | LABEL - electrical | 1 | |
| 23 | 92-656 | LABEL - electrical | 1 | |
| 24 | 92-657 | LABEL - electrical | 1 | |
| 25 | 92-659 | LABEL - electrical | 1 | |
| 26 | 92-638 | BRACKET - breaker | 1 | |
| 55-7407 | SCREW - bracket | 4 | ||
| 55-7171 | LOCKWASHER | 4 | ||
| 55-8375 | NUT - captive | 4 | ||
| 27 | 92-641 | BRACKET - end | 1 | |
| 55-7407 | SCREW - bracket | 2 | ||
| 55-7171 | LOCKWASHER | 2 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 55-8375 | NUT - captive | 2 | ||
| 28 | 92-642 | BRACKET - end | 1 | |
| 55-7407 | SCREW - bracket | 2 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 55-8375 | NUT - captive | 2 | ||
| 29 | 304-2590 | SWITCH - spdt | 1 | |
| 30 | 41-3813 | HOLDER - fuse | 1 | |
| 31 | 44-6777 | FUSE (2 amp, 500 volts) | 1 | |
| 32 | NSS | TERMINAL - control box (see 186G4) | 1 | |
| 33 | 304-2593 | TRANSFORMER - current | 1 | |
| 34 | 99-3281 | MOUNT - cable tie | 1 | |
| 55-5130 | RIVET - mount | 1 | ||
| 55-2330 | BANDWRAP | 1 | ||
| 35 | 92-653 | LABEL - electrical | 1 | |
| 36 | 55-9710 | BUSHING - cable | 5 | |
| 55-9711 | LOCKNUT | 5 | ||
| 37 | 51-711 | BUSHING - cable | 2 | |
| 51-712 | LOCKNUT | 2 | ||
| 38 | 55-9556 | BUSHING - cable | 1 | |
| 55-9560 | LOCKNUT | 1 | ||
| 39 | 92-647 | LABEL - electrical | 1 | |
| 40 | 92-660 | LABEL - electrical | 1 | |
| 41 | 92-658 | LABEL - electrical | 1 |
