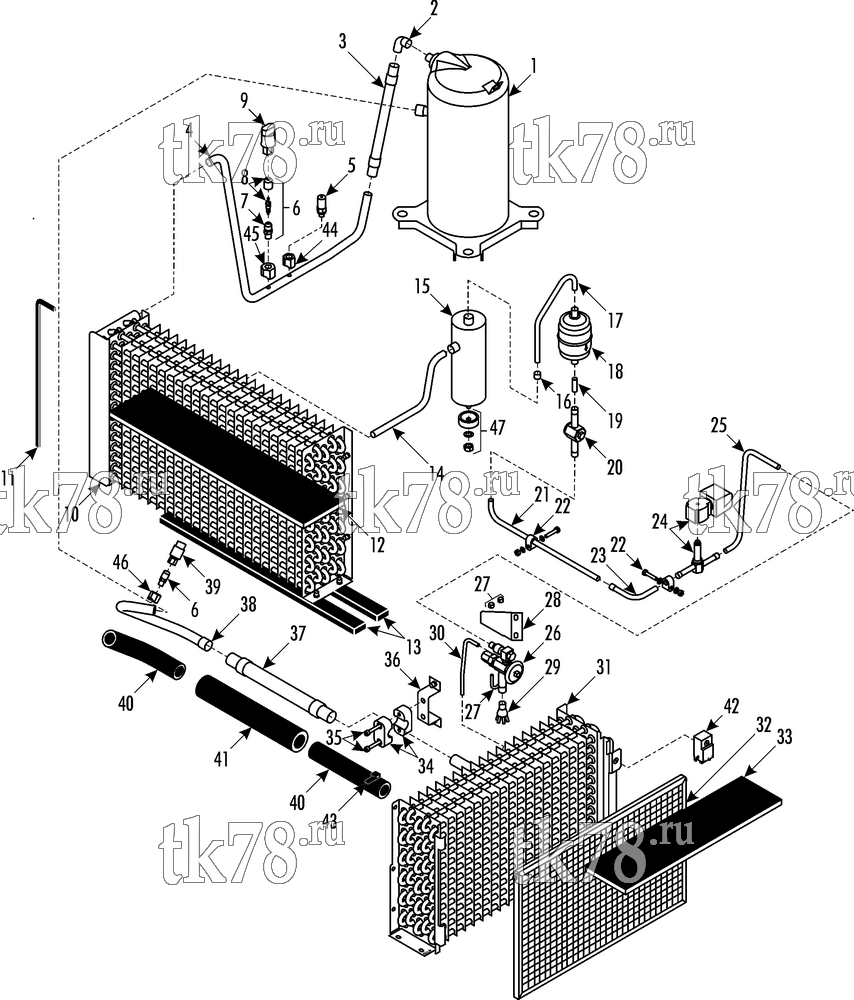

Установкa Thermo King RAC 4 STD схема REFRIGERATION COMPONENTS – 186F8
Обновление от: 10/16/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | COMPRESSOR - assembly (see 186G8) | 1 | |
| 2 | 55-3441 | ELBOW - compressor to vibrasorber | 1 | |
| 3 | 61-378 | VIBRASORBER - discharge | 1 | |
| 4 | 61-380 | TUBE - vibrasorber to coil | 1 | |
| 5 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 6 | 11-2886 | VALVE (Schrader) | 2 | |
| 7 | 55-7213 | ADAPTER - valve | 2 | |
| 8 | 11-7777 | CORE - valve | 2 | |
| 55-5672 | CAP - valve | 2 | ||
| 9 | 41-6318 | SWITCH - hpco | 1 | |
| 10 | 67-1684 | COIL - condenser | 1 | |
| 55-7373 | NUT - captive | 7 | ||
| 11 | 99-2039 | EXTRUSION - rubber | A/R | |
| 12 | 92-617 | INSULATION - condenser coil | 1 | |
| 13 | 99-8041 | STRIP - neoprene | A/R | |
| 14 | 61-379 | TUBE - condenser to receiver tank | 1 | |
| 15 | 61-2367 | TANK - receiver | 1 | |
| 16 | 55-3247 | BUSHING - receiver tank | 1 | |
| 17 | 61-2368 | TUBE - tank to dehydrator | 1 | |
| 18 | 61-381 | DEHYDRATOR - filter/drier | 1 | |
| 19 | 61-2370 | TUBE - dehydrator to indicator | 1 | |
| 20 | 66-1296 | INDICATOR - liquid | 1 | |
| 21 | 61-2369 | TUBE - indicator to tube | 1 | |
| 22 | 55-6388 | CLAMP - tube | 2 | |
| 55-7372 | SCREW - clamp | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7354 | NUT | 2 | ||
| 23 | 61-2371 | TUBE - tube to solenoid | 1 | |
| 24 | 61-382 | SOLENOID - valve | 1 | |
| 25 | 61-2372 | TUBE - solenoid to expansion valve | 1 | |
| 26 | 61-390 | VALVE - expansion | 1 | |
| 27 | 55-5201 | U-BOLT - expansion valve | 1 | |
| 55-4560 | NUT - u-bolt | 2 | ||
| 28 | 92-3223 | HOLDER - expansion valve | 1 | |
| 55-7172 | SCREW - holder | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 29 | 61-392 | TUBE - distributor, coil inlet (assembly) | 1 | |
| 30 | 61-394 | TUBE - equalizer | 1 | |
| 31 | 67-1685 | COIL - evaporator | 1 | |
| 55-6994 | SCREW - coil | 9 | ||
| 55-7170 | LOCKWASHER | 9 | ||
| 55-7354 | NUT | 2 | ||
| 32 | 92-563 | FILTER - return air (assembly) | 1 | |
| 92-564 | FILTER - only | 1 | ||
| 33 | 92-3224 | INSULATION - evaporator coil | 1 | |
| 34 | 91-2487 | CLAMP - tube | 2 | |
| 35 | 305-1652 | SCREW - clamp | 2 | |
| 36 | 92-3225 | BRACKET - clamp | 1 | |
| 55-6994 | SCREW - bracket | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 37 | 61-391 | VIBRASORBER - suction | 1 | |
| 38 | 61-393 | TUBE - vibrasorber to compressor | 1 | |
| 39 | 41-5899 | SWITCH - lpco | 1 | |
| 40 | 92-4439 | INSULATION - tube | A/R | |
| 41 | 92-2015 | INSULATION - tube | A/R | |
| 42 | 41-5080 | FREEZESTAT | 1 | |
| 43 | 55-2331 | BANDWRAP | A/R | |
| 44 | 99-3060 | FITTING - saddle (relief valve) | 1 | |
| 45 | 66-4139 | FITTING - saddle (Schrader valve) | 1 | |
| 46 | 66-6996 | FITTING - saddle | 1 | |
| 47 | 91-9321 | SPACER - tank | 1 | |
| 55-312 | NUT - receiver tank | 1 | ||
| 55-790 | LOCKWASHER | 1 |
