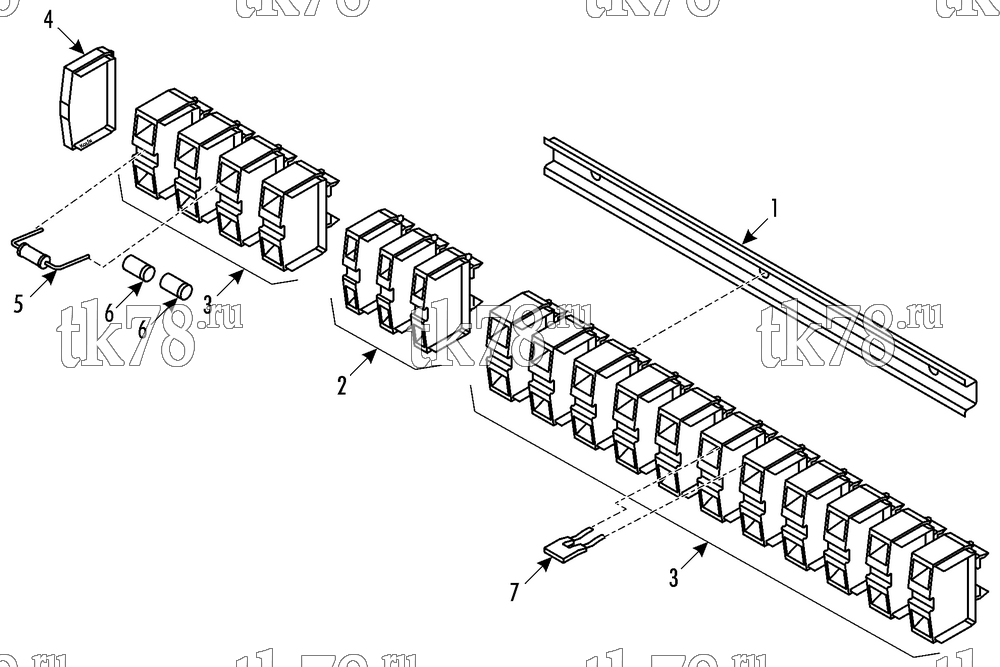

Установкa Thermo King RAC 4 DP, RAC 4 DP3 схема CONTROL BOX TERMINAL (RAC 4 DP3) – 219C2
Обновление от: 2/20/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-3777 | RAIL - din | 1 | |
| 55-5130 | RIVET - rail | 3 | ||
| 2 | 41-3892 | TERMINAL - single | 3 | |
| 3 | 41-3893 | TERMINAL - double | 15 | |
| 4 | 41-3894 | TERMINAL - end plate | 1 | |
| 5 | 41-5935 | RESISTOR - pull-up | 1 | |
| 6 | 44-5763 | DIODE - rectifier | 2 | |
| 7 | 41-3896 | JUMPER | 1 |
