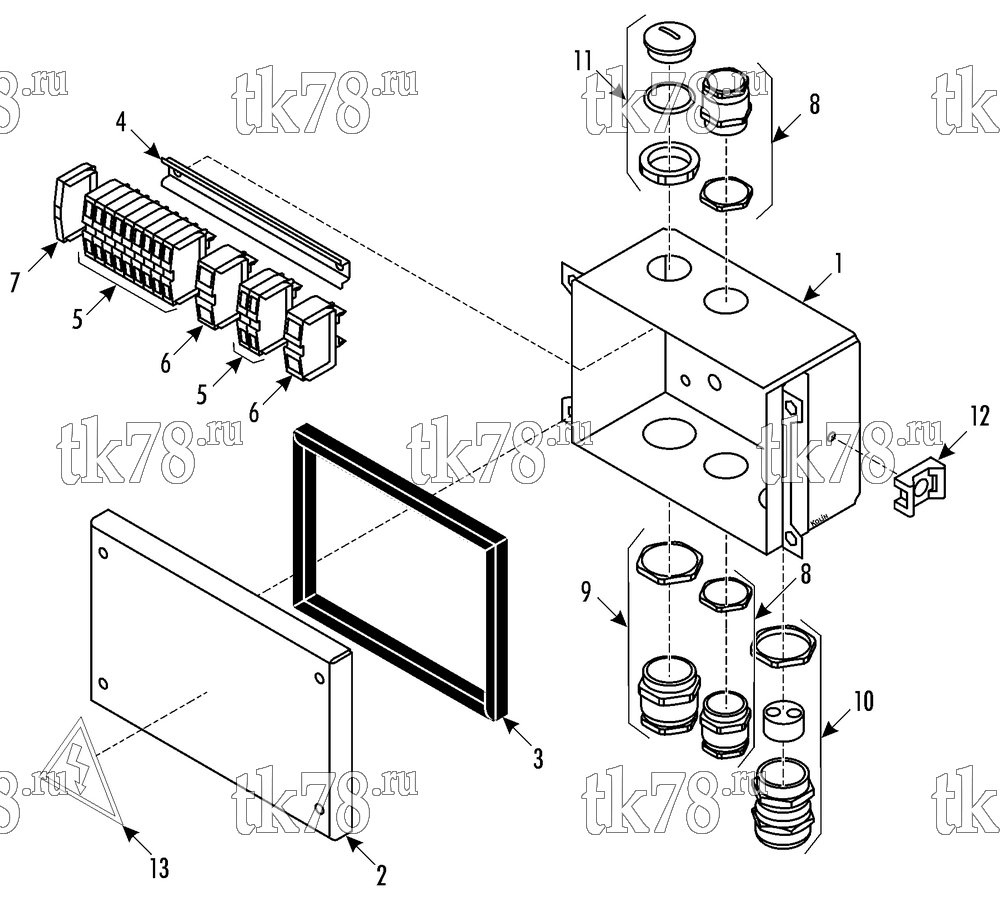

Установкa Thermo King RAC 4 DP, RAC 4 DP3 схема JUNCTION BOX - BLOWER (RAC 4 DP3) – 219B0
Обновление от: 2/20/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-3239 | BOX - junction | 1 | |
| 2 | 92-3240 | COVER - box | 1 | |
| 55-7696 | SCREW - cover | 4 | ||
| 55-7697 | FLATWASHER | 4 | ||
| 55-7866 | NUT - captive | 4 | ||
| 3 | 33-3276 | GASKET - cover | 1 | |
| 4 | 92-3241 | RAIL - din | 1 | |
| 55-2260 | RIVET - rail | 2 | ||
| 5 | 41-3892 | TERMINAL - single | 11 | |
| 6 | 41-3893 | TERMINAL - double | 2 | |
| 7 | 41-3894 | TERMINAL - end | 1 | |
| 8 | 55-9554 | BUSHING - cable | 2 | |
| 55-9558 | LOCKNUT | 2 | ||
| 9 | 55-9710 | BUSHING - cable | 1 | |
| 55-9711 | LOCKNUT | 1 | ||
| 10 | 51-1400 | BUSHING - cable | 1 | |
| 41-6682 | SEALING - bushing | 1 | ||
| 55-9711 | LOCKNUT | 1 | ||
| 11 | 51-818 | PLUG | 1 | |
| 51-843 | WASHER - sealing | 1 | ||
| 51-819 | NUT | 1 | ||
| 12 | 99-3281 | MOUNT - cable tie | 1 | |
| 55-5130 | RIVET - mount | 1 | ||
| 55-2330 | BANDWRAP | 1 | ||
| 13 | 99-7834 | NAMEPLATE - Caution | 1 |
