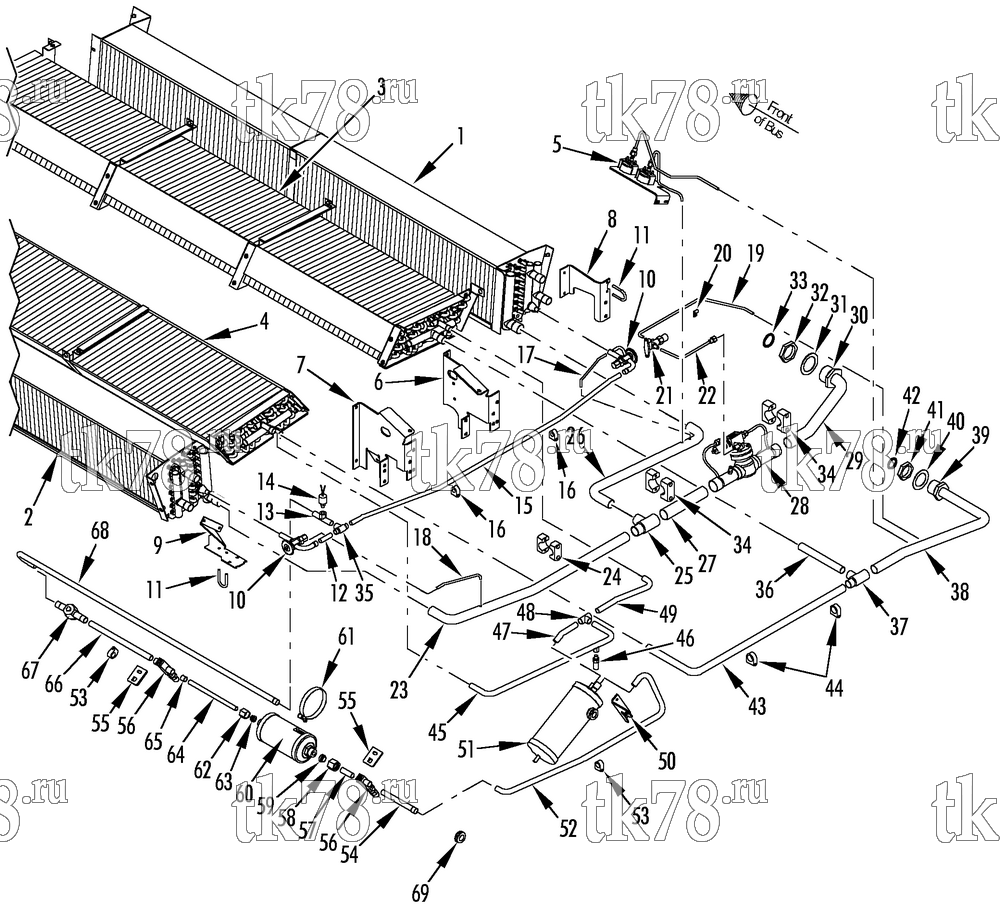

Установкa Thermo King R9-M2 схема REFRIGERATION COMPONENTS – 201H8
Обновление от: 7/16/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2126 | COIL - evaporator, curbside (see 201H7) | 1 | |
| 2 | 67-2127 | COIL - evaporator, roadside (see 201H7) | 1 | |
| 3 | 67-2128 | COIL - condenser, curbside (see 201H7) | 1 | |
| 4 | 67-2129 | COIL - condenser, roadside (see 201H7) | 1 | |
| 5 | NSS | GAUGES - refrigeration pressure (see 201H3) | 1 | |
| 6 | 92-4854 | BRACKET - curbside | 1 | |
| 7 | 92-4856 | BRACKET - roadside | 1 | |
| 55-2957 | SCREW - bracket | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 8 | 92-4855 | BRACKET - expansion valve (curbside) | 1 | |
| 9 | 92-4857 | BRACKET - expansion valve (roadside) | 1 | |
| 55-2957 | SCREW - bracket | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 10 | 61-3194 | VALVE - expansion (R134a) | 2 | |
| 61-3238 | VALVE - expansion (R22) | 1 | ||
| 11 | 55-4509 | U-BOLT - expansion valve | 2 | |
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 4 | ||
| 12 | 66-7543 | TUBE - valve to tee | 1 | |
| 55-1252 | TEE (1/2 x 1/2 x 5/8) | 1 | ||
| 13 | 61-3195 | TUBE - liq line | 1 | |
| 66-4139 | FITTING - saddle | 1 | ||
| 14 | 41-5764 | SWITCH - condenser fan (R134a, for connectors see 115D14) | 1 | |
| 41-307 | SWITCH - only (R134a) | 1 | ||
| 41-1216 | SWITCH - condenser fan (R22, for connectors, see 115D14) | 1 | ||
| 44-6427 | SWITCH - only (R22) | 1 | ||
| 15 | 61-3196 | TUBE - liquid line | 1 | |
| 16 | 91-759 | CLAMP - tube | 2 | |
| 55-3675 | SCREW - clamp | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 17 | 61-3197 | TUBE - equalizer, curbside | 1 | |
| 18 | 61-3198 | TUBE - equalizer, roadside | 1 | |
| 19 | 61-3199 | TUBE - valve to discharge | 1 | |
| 20 | 55-9811 | CLAMP - tube | 1 | |
| 55-2957 | SCREW - clamp | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 21 | 66-4102 | VALVE - shutoff | 1 | |
| 22 | 61-3200 | TUBE - valve to epr | 1 | |
| 23 | 61-3201 | TUBE - suction, roadside | 1 | |
| 24 | 91-2473 | CLAMP - tube | 2 | |
| 91-6158 | PLATE - clamp | 1 | ||
| 55-4811 | SCREW - clamp | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 25 | 55-4308 | TEE (1-3/8 x 1-1/8 x 1-1/8) | 1 | |
| 26 | 61-3202 | TUBE - suction, curbside | 1 | |
| 27 | 61-3203 | TUBE | 1 | |
| 28 | 66-8122 | VALVE - epr (R134a, see 129C13) | 1 | |
| 66-5136 | VALVE - epr (R22, see 129C13) | 1 | ||
| 29 | 61-3204 | TUBE - suction, epr | 1 | |
| 30 | 55-6570 | ADAPTER - bulkhead (#24, ORS) | 1 | |
| 31 | 55-5999 | LOCKWASHER (2.0 in id) | 1 | |
| 32 | 55-9422 | NUT - bulkhead adapter (2-12) | 1 | |
| 33 | 33-920 | O-RING (1-1/2 od) | 1 | |
| 34 | 55-6020 | CLAMP - tube | 4 | |
| 92-2707 | PLATE - clamp | 2 | ||
| 55-6851 | SCREW - clamp | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 35 | 55-1252 | TEE (1/2 x 1/2 x 5/8) | 1 | |
| 36 | 61-3205 | TUBE | 1 | |
| 37 | 55-8968 | TEE (1/8 x 7/8 x 7/8) | 1 | |
| 38 | 61-3206 | TUBE - discharge | 1 | |
| 39 | 55-7537 | ADAPTER - bulkhead (#20, ORS) | 1 | |
| 40 | 55-5742 | LOCKWASHER (1.75 id) | 1 | |
| 41 | 55-9231 | NUT - bulkhead adapter (11/16-12) | 1 | |
| 42 | 33-1777 | O-RING (1-3/15 id) | 1 | |
| 43 | 61-3207 | TUBE - discharge, roadside | 1 | |
| 44 | 55-7013 | CLAMP - tube | 2 | |
| 55-3462 | SCREW - clamp | 2 | ||
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 45 | 61-3239 | TUBE - liquid line, roadside | 1 | |
| 99-3060 | FITTING - saddle | 1 | ||
| 46 | 66-7392 | VALVE - relief (see 119B8) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 47 | 61-3209 | TUBE - liquid receiver tank | 1 | |
| 48 | 55-904 | TEE (5/8 x 5/8 x 5/8) | 1 | |
| 49 | 61-3210 | TUBE - liquid curbside | 1 | |
| 50 | 92-4858 | BRACKET - receiver tank | 1 | |
| 55-2957 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 51 | 61-225 | TANK - receiver | 1 | |
| 66-9918 | INDICATOR - liquid | 1 | ||
| 33-2419 | GASKET - o-ring (15/16 id) | 1 | ||
| 55-4955 | NUT - receiver tank | 2 | ||
| 55-2641 | FLATWASHER | 2 | ||
| 55-7144 | WASHER - spl | 2 | ||
| 52 | 61-3211 | TUBE - liquid line receiver | 1 | |
| 53 | 91-758 | CLAMP - tube | 2 | |
| 55-3675 | SCREW - clamp | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 54 | 61-3212 | TUBE - liquid line | 1 | |
| 55 | 92-4859 | BRACKET - valve shutoff | 2 | |
| 56 | 66-7899 | VALVE - shutoff | 2 | |
| 55-2963 | SCREW - valve | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 57 | 61-7332 | TUBE - straight | 1 | |
| 58 | 55-6396 | NUT - shoulder | 1 | |
| 59 | 55-6356 | SHOULDER | 1 | |
| 60 | 61-600 | DEHYDRATOR | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 6 880 ₽ |
|
| 10-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 3 420 ₽ |
|
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 090 ₽ |
|
| 61 | 55-7800 | CLAMP - dehydrator | 1 | |
| 62 | 55-6838 | NUT - shoulder | 1 | |
| 63 | 55-6837 | SHOULDER | 1 | |
| 64 | 61-3213 | TUBE - straight | 1 | |
| 65 | 55-2182 | BUSHING (5/8 ftg x 1/2 sld) | 1 | |
| 66 | 61-3228 | TUBE - straight | 1 | |
| 67 | 66-2648 | INDICATOR - liquid | 1 | |
| 68 | 61-3229 | TUBE - valve to sight glass | 1 | |
| 69 | 33-1692 | GROMMET (3/8 id) | 2 | |
| 33-810 | GROMMET (3/16 id) | 2 |
