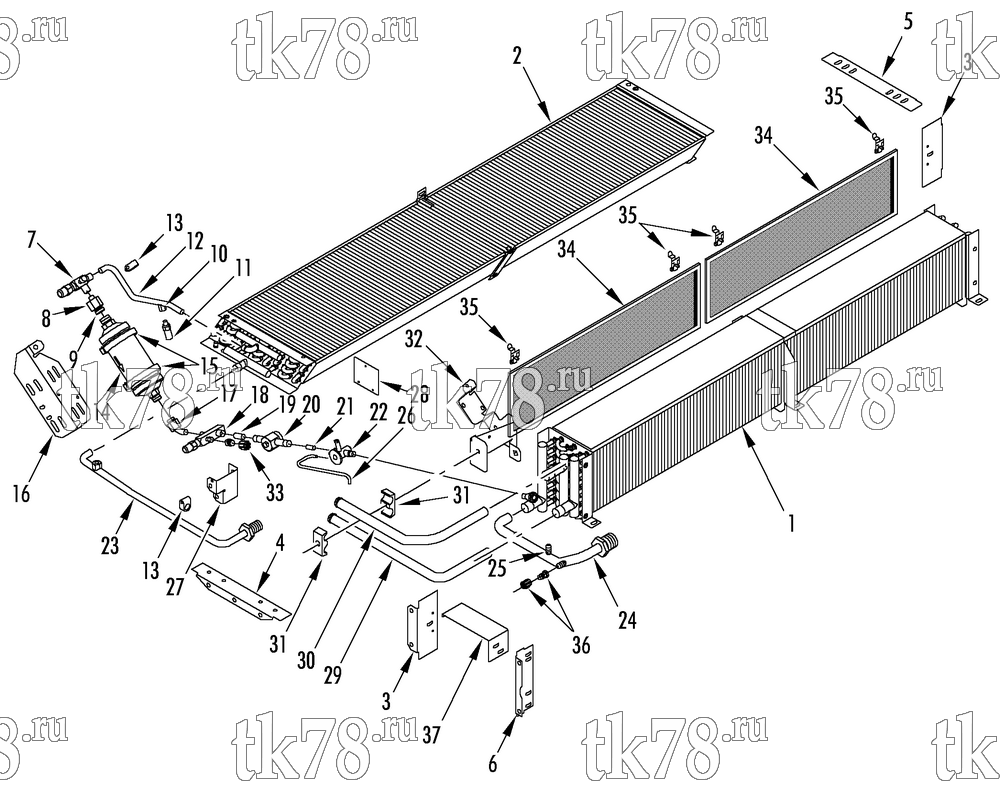

Установкa Thermo King R7-M1A схема TUBING & COILS - CURBSIDE – 171E2
Обновление от: 6/7/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1812 | COIL - evaporator (curbside) | 1 | |
| 2 | 67-1813 | COIL - condenser (curbside) | 1 | |
| 55-2957 | SCREW - coils | 50 | ||
| 55-1800 | LOCKWASHER | 58 | ||
| 55-2086 | FLATWASHER | 50 | ||
| 55-5223 | WASHER - spl (0.250 in id) | 4 | ||
| 55-8711 | INSERT | 6 | ||
| 3 | 92-1794 | BRACKET - evaporator coil | 2 | |
| 4 | 92-1795 | BRACKET - condenser coil | 1 | |
| 5 | 92-1796 | BRACKET - condenser coil | 1 | |
| 6 | 92-1797 | BRACKET - evaporator coil | 1 | |
| 7 | 66-5747 | VALVE - dehydrator inlet | 1 | |
| 66-2170 | CAP - valve | 1 | ||
| 8 | 55-6396 | NUT - shoulder | 1 | |
| 9 | 55-6356 | SHOULDER | 1 | |
| 55-2182 | BUSHING | 1 | ||
| 61-1349 | TUBE | 1 | ||
| 10 | 55-3295 | FITTING - saddle | 1 | |
| 11 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 12 | 61-1350 | TUBE - coil to valve | 1 | |
| 13 | 91-759 | CLAMP - tube | 1 | |
| 55-3675 | SCREW - clamp | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-8711 | INSERT | 1 | ||
| 14 | 61-600 | FILTER - drier/receiver | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 8 100 ₽ |
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 490 ₽ |
|
| 15 | 55-7800 | CLAMP - filter drier | 2 | |
| 16 | 92-1801 | BRACKET - filter drier | 1 | |
| 17 | 61-1344 | TUBE - liquid (drier to valve) | 1 | |
| 55-6838 | NUT - shoulder | 1 | ||
| 55-6837 | SHOULDER - o-ring | 1 | ||
| 18 | 66-8586 | VALVE - shutoff | 1 | |
| 55-3502 | SCREW - valve | 1 | ||
| 55-2959 | LOCKWASHER | 1 | ||
| 55-2958 | FLATWASHER | 1 | ||
| 19 | 66-8476 | TUBE - valve to sight glass | 1 | |
| 20 | 66-1188 | INDICATOR - liquid | 1 | |
| 55-3247 | BUSHING | 1 | ||
| 21 | 66-8508 | TUBE - indicator to expansion valve | 1 | |
| 22 | 61-863 | VALVE - expansion | 1 | |
| 23 | 61-1348 | TUBE - discharge | 1 | |
| 55-8749 | ADAPTER - bulkhead | 1 | ||
| 66-4139 | FITTING - saddle | 1 | ||
| 55-6811 | NUT - bulkhead | 1 | ||
| 55-6843 | LOCKWASHER | 1 | ||
| 33-1223 | O-RING - discharge adapter | 1 | ||
| 24 | 61-1343 | TUBE - suction | 1 | |
| 66-6840 | ADAPTER - bulkhead | 1 | ||
| 25 | 66-9842 | VALVE (Schrader) | 2 | |
| 55-1983 | CAP - valve | 2 | ||
| 55-7111 | NUT - bulkhead | 1 | ||
| 55-5741 | LOCKWASHER | 1 | ||
| 33-1785 | O-RING - suction adapter | 1 | ||
| 26 | 61-1345 | TUBE - equalizer | 1 | |
| 27 | 92-1798 | BRACKET - expansion valve | 1 | |
| 28 | 92-1800 | PLATE - sight glass | 1 | |
| 55-5047 | RIVET - plate | 3 | ||
| 29 | 61-1346 | TUBE - water inlet | 1 | |
| 30 | 61-1347 | TUBE - water outlet | 1 | |
| 31 | 55-7166 | CLAMP - tube | 1 | |
| 55-3462 | SCREW - clamp | 1 | ||
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-4414 | WASHER - spacer | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-8711 | INSERT | 1 | ||
| 32 | 92-1799 | BRACKET - clamp | 1 | |
| 33 | 66-8086 | FITTING - refrigerant (high side) | 1 | |
| 66-7183 | CAP - fitting | 1 | ||
| 34 | 92-5777 | FILTER - pad (w/ frame) | 2 | |
| 35 | 55-5634 | FASTENER - snap | 6 | |
| 55-3101 | RIVET - fastener | 6 | ||
| 36 | 66-7181 | FITTING - refrigerant (low side) | 1 | |
| 66-7182 | CAP - fitting | 1 | ||
| 37 | 92-1852 | COVER | 1 |
