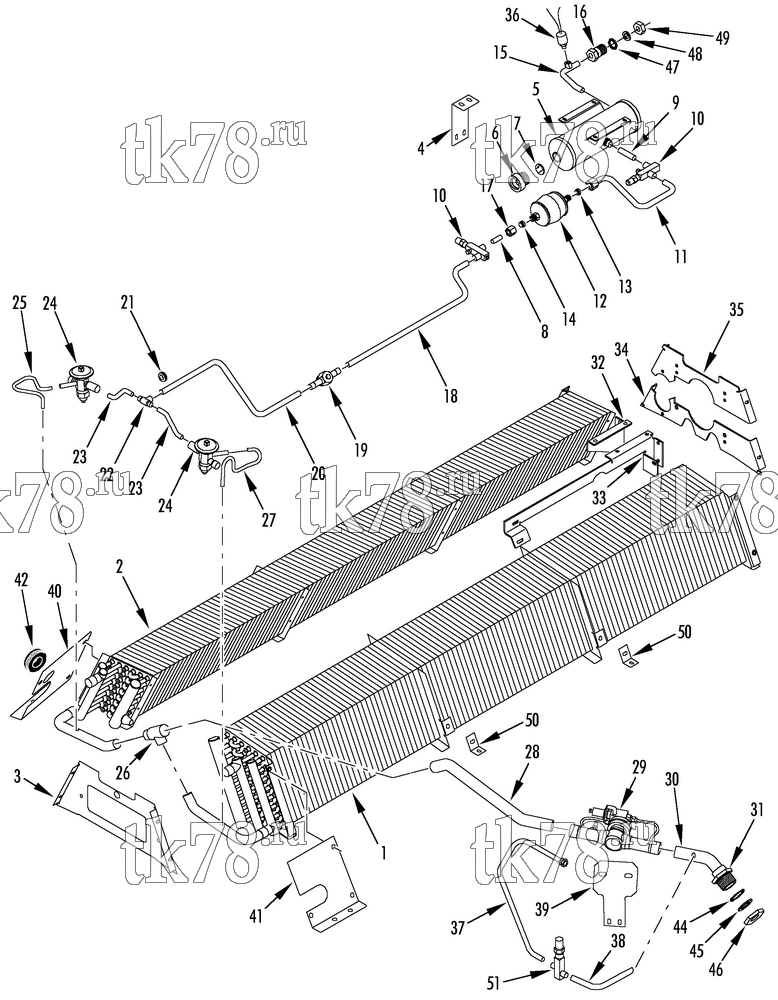

Установкa Thermo King R6-M2 схема REFRIGERATION EVAPORATOR (7/00 & After) – 162C6
Обновление от: 1/10/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1700 | COIL - evaporator (curbside) | 1 | |
| 2 | 67-1701 | COIL - evaporator (roadside) | 1 | |
| 92-2205 | INSULATION - evaporator coil | 2 | ||
| 92-3483 | BLOCK - foam | 4 | ||
| 55-2957 | SCREW - coil | 36 | ||
| 55-2086 | FLATWASHER | 36 | ||
| 55-1800 | LOCKWASHER | 36 | ||
| 3 | 92-736 | BRACKET - evaporator (exchanger end) | 1 | |
| 55-2957 | SCREW - bracket | 14 | ||
| 55-1800 | LOCKWASHER | 14 | ||
| 55-2086 | FLATWASHER | 14 | ||
| 55-8711 | INSERT - threaded | 14 | ||
| 4 | 91-9419 | BRACKET - receiver tank | 3 | |
| 5 | 67-1482 | TANK - receiver | 1 | |
| 6 | 66-9918 | INDICATOR - liquid | 1 | |
| 7 | 33-2419 | O-RING | 1 | |
| 8 | 66-8585 | TUBE - valve to dehydrator | 1 | |
| 9 | 66-9445 | TUBE | 1 | |
| 10 | 66-7899 | VALVE - shutoff | 2 | |
| 55-2963 | SCREW - valve | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 99-844 | U-BOLT | 1 | ||
| 55-4954 | NUT | 2 | ||
| 11 | 66-9596 | TUBE - valve to sleeve | 1 | |
| 55-6356 | SHOULDER - brazed | 1 | ||
| 55-6396 | NUT - shoulder | 1 | ||
| 12 | 61-600 | DEHYDRATOR | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 8 100 ₽ |
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 490 ₽ |
|
| 55-7800 | CLAMP - dehydrator | 1 | ||
| 13 | 33-566 | O-RING (1/2) | 1 | |
| 14 | 33-2115 | O-RING (5/8) | 1 | |
| 15 | 66-9597 | TUBE - receiver tank to bulkhead | 1 | |
| 66-4139 | FITTING - saddle | 1 | ||
| 16 | 55-9699 | ADAPTER - bulkhead (#12) | 1 | |
| 17 | 55-6838 | NUT - shoulder | 1 | |
| 55-6837 | SHOULDER | 1 | ||
| 55-2182 | BUSHING | 1 | ||
| 18 | 66-9598 | TUBE - valve to indicator | 1 | |
| 91-758 | CLAMP - tube | 1 | ||
| 55-3675 | SCREW - clamp | 1 | ||
| 19 | 66-2648 | INDICATOR - liquid | 1 | |
| 20 | 61-477 | TUBE - liquid indicator to tee | 1 | |
| 21 | 33-367 | GROMMET | 1 | |
| 22 | 55-1252 | TEE (1/2 x 1/2 x 5/8) | 1 | |
| 23 | 61-485 | TUBE - tee to valve | 2 | |
| 24 | 66-9601 | VALVE - expansion | 2 | |
| 92-737 | BRACKET - valve | 2 | ||
| 55-3547 | U-BOLT | 2 | ||
| 55-4560 | NUT | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 25 | 61-486 | TUBE - equalizer | 1 | |
| 26 | 55-4308 | TEE (1-3/8 x 1-1/8 x 1-1/8) | 1 | |
| 27 | 61-487 | TUBE - equalizer | 1 | |
| 66-4139 | FITTING - saddle | 1 | ||
| 28 | 61-488 | TUBE - tee to valve | 1 | |
| 92-2016 | HOSE - insulation (cut to 18.0 in) | A/R | ||
| 51-306 | CLAMP - tube (1.25 in dia) | 1 | ||
| 29 | 66-5136 | VALVE - epr (see 129C13) | 1 | |
| 55-2957 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 30 | 61-489 | TUBE - valve to bulkhead | 1 | |
| 31 | 55-6570 | ADAPTER - bulkhead | 1 | |
| 32 | 92-339 | ANGLE - receiver tank | 1 | |
| 33 | 92-340 | ANGLE - receiver tank | 1 | |
| 34 | 92-341 | BRACKET - receiver tank (bottom) | 1 | |
| 35 | 92-342 | BRACKET - receiver tank (top) | 1 | |
| 55-2957 | SCREW - angles & brackets | 16 | ||
| 55-1800 | LOCKWASHER | 16 | ||
| 55-2086 | FLATWASHER | 16 | ||
| 36 | 44-6349 | SWITCH - hpco | 1 | |
| 44-6427 | SWITCH - only | 1 | ||
| 37 | 61-478 | TUBE - hand valve to epr valve | 1 | |
| 38 | 61-479 | TUBE - hand valve to fitting | 1 | |
| 39 | 92-731 | BRACKET - epr valve | 1 | |
| 91-2316 | EXTRUSION (8.80 in lg) | 2 | ||
| 40 | 92-729 | PLATE - blockoff (roadside) | 1 | |
| 41 | 92-730 | PLATE - blockoff (curbside) | 1 | |
| 42 | 33-1879 | GROMMET | 1 | |
| 43 | 33-2790 | WASHER (brass) | 1 | |
| 44 | 33-920 | O-RING (#24) | 1 | |
| 45 | 55-5742 | LOCKWASHER (#24) | 1 | |
| 46 | 55-9422 | NUT (#24) | 1 | |
| 47 | 33-2193 | O-RING (#12) | 1 | |
| 48 | 55-7193 | LOCKWASHER (#12) | 1 | |
| 49 | 55-6812 | NUT (#12) | 1 | |
| 50 | 91-9420 | BRACKET - evaporator coil | 4 | |
| 55-2957 | SCREW - bracket | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 51 | 66-4102 | VALVE | 1 |
