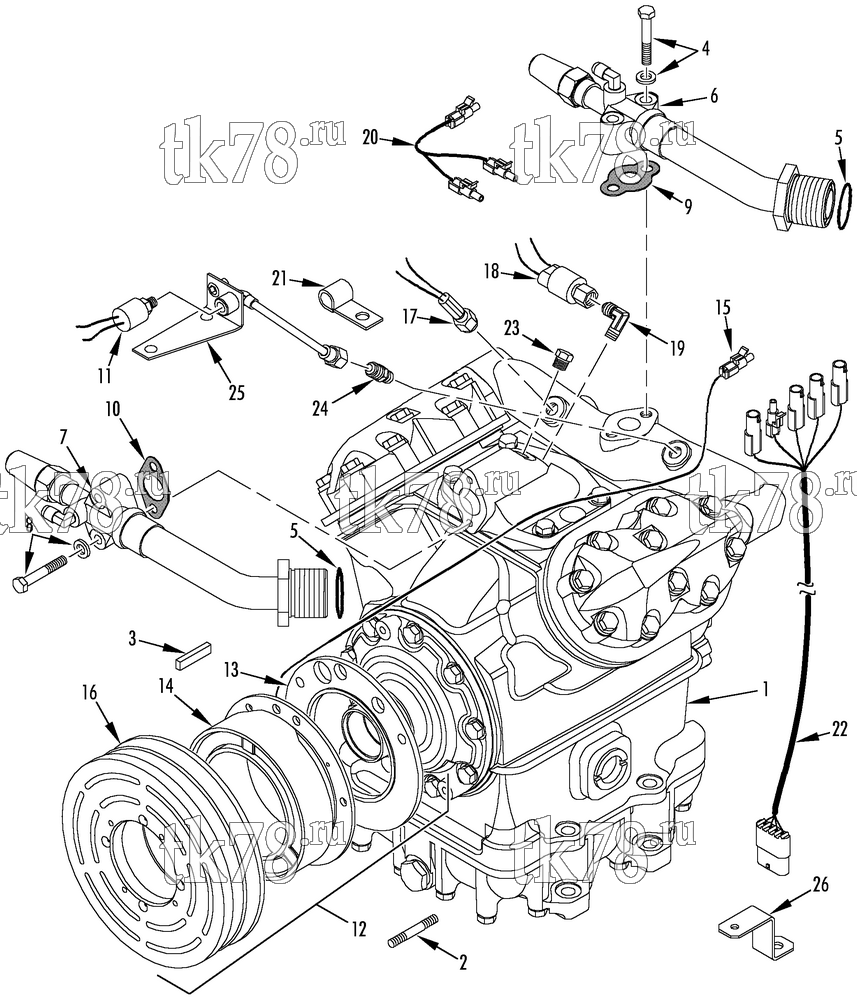

Установкa Thermo King R6-M2 схема COMPRESSOR GROUP (9150C89G10, KIT 718141) – 157E8
Обновление от: 6/23/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-917 | COMPRESSOR - X430 C5 (subassy see 228E5) | 1 | |
| 2 | 55-3451 | STUD - clutch | 3 | |
| 3 | 55-9088 | KEY | 1 | |
| 4 | 55-201 | SCREW - discharge valve | 2 | |
| 55-895 | WASHER - sealing | 2 | ||
| 5 | 33-1777 | O-RING - suction | 2 | |
| 6 | 61-2315 | VALVE - discharge (see 187C2) | 1 | |
| 7 | 61-2316 | VALVE - suction (see 187C1) | 1 | |
| 8 | 55-6776 | SCREW - suction valve | 2 | |
| 55-6804 | FLATWASHER | 2 | ||
| 9 | 33-2541 | GASKET - discharge valve | 1 | |
| 10 | 33-2805 | GASKET - suction valve | 1 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 11 | 44-7814 | SWITCH - hpco | 1 | |
| 41-4523 | SWITCH - only | 1 | ||
|
41-4523 OEM | Выключатель высокого давления, SLX/SLXe | 15 650 ₽ |
|
| 10-41-4523 | Выключатель высокого давления, SLX/SLXe | 12 390 ₽ |
|
|
| 12 | NSS | CLUTCH - assembly | 1 | |
| 107-192 | KIT - clutch drive repair (see 153E8) | 1 | ||
| 13 | 77-1083 | PLATE | 1 | |
| 14 | 45-1389 | FIELD - clutch (24VDC) | 1 | |
| 15 | 44-7330 | CONNECTOR - shroud (1-pin, see 115D14) | 1 | |
| 44-5836 | TERMINAL - male (14-16 ga) | 1 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 1 | ||
| 16 | 77-1672 | PULLEY (2-5V grooves, 7.75 in od) | 1 | |
| 17 | 41-3345 | SENSOR - discharge temperature | 1 | |
| 18 | 44-8734 | SWITCH - lpco (for connectors see 115D14) | 1 | |
| 44-4258 | SWITCH - only | 1 | ||
| 19 | 55-466 | ELBOW | 1 | |
| 33-768 | GASKET - flare | 1 | ||
| 20 | 41-2179 | HARNESS - compressor | 1 | |
| 21 | 55-5261 | CLAMP - harness (0.187 dia) | 2 | |
| 55-2239 | CLAMP - harness (0.375 dia) | 1 | ||
| 22 | 41-2053 | HARNESS - compressor (for connectors see 115D14) | 1 | |
| 23 | 55-433 | PLUG - pipe | 1 | |
| 24 | 55-459 | COUPLING | 1 | |
| 25 | 91-8288 | BRACKET - remote | 1 | |
| 26 | 92-3022 | BRACKET - compressor harness | 1 | |
| 55-1587 | SCREW - bracket | 1 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 1 |
