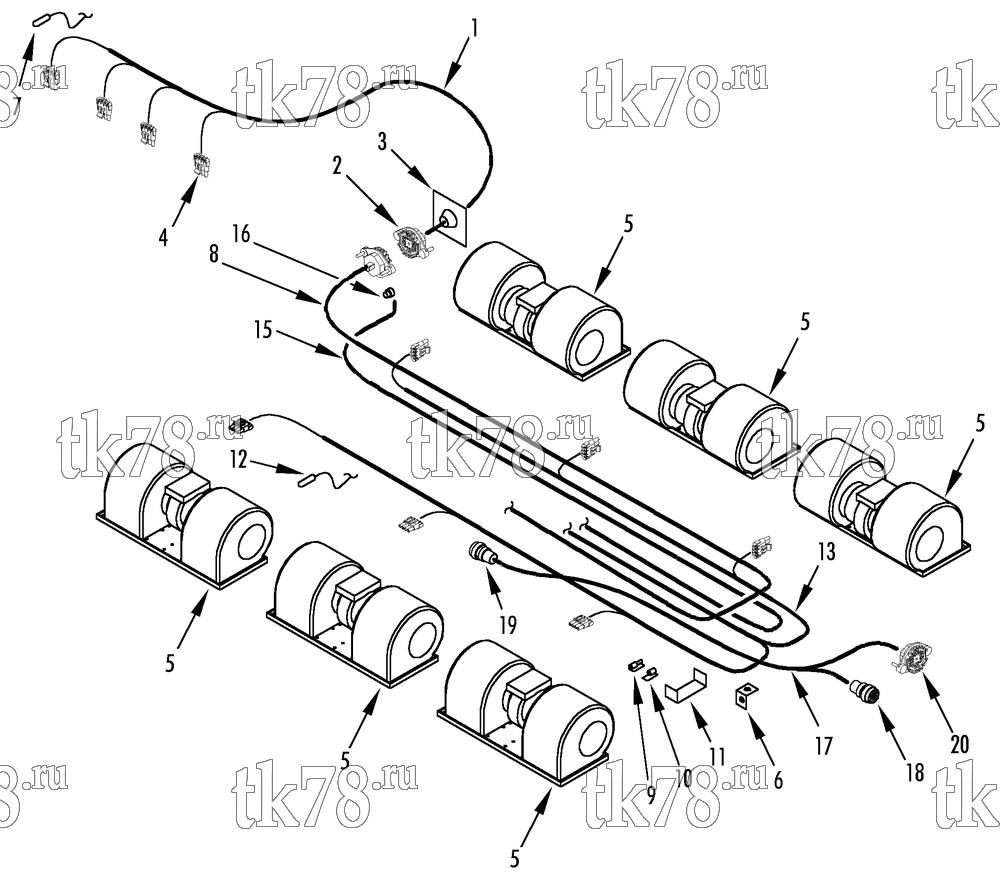

Установкa Thermo King R6-M1 схема ELECTRICAL COMPONENTS (9/00 & After) – 162C8
Обновление от: 8/22/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-2971 | HARNESS - condenser | 1 | |
| 2 | 44-7829 | CONNECTOR - tower (22-pin) | 1 | |
| 44-7811 | LOCK - secondary | 2 | ||
| 44-7812 | PLUG - cavity (green) | 4 | ||
| 3 | 91-9413 | PLATE - harness | 1 | |
| 55-9034 | CONNECTOR | 1 | ||
| 55-2636 | NUT | 1 | ||
| 4 | 44-7881 | CONNECTOR - tower (4-pin) | 4 | |
| 5 | 78-1175 | BLOWER - evaporator (complete, see 154C10) | 6 | |
| 99-4976 | STRIP (0.6 wide x .12 thk, neoprene) | A/R | ||
| 55-3442 | SCREW - blower | 18 | ||
| 55-396 | LOCKWASHER (int) | 18 | ||
| 6 | 91-6732 | BRACKET - harness | 3 | |
| 55-4222 | SCREW - bracket | 4 | ||
| 55-2201 | FLATWASHER | 8 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 55-2999 | NUT | 4 | ||
| 7 | 40-975 | KIT - temperature sensor | 1 | |
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| 8 | 41-3645 | HARNESS - condenser | 1 | |
| 44-7884 | CONNECTOR - shroud (22-pin) | 1 | ||
| 44-7811 | LOCK - secondary | 2 | ||
| 44-7812 | PLUG - cavity (green) | 10 | ||
| 91-9423 | PLATE - blockoff | 1 | ||
| 55-9034 | CONNECTOR - harness grip | 1 | ||
| 55-2636 | NUT | 1 | ||
| 9 | 99-8056 | HINGE - door (w/ pin) | 1 | |
| 10 | 99-8057 | HINGE - door | 1 | |
| 55-2995 | SCREW - hinge | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2965 | NUT | 4 | ||
| 11 | 91-4743 | BRACKET - control box | 1 | |
| 55-1587 | SCREW - bracket | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 12 | 40-975 | KIT - temperature sensor | 1 | |
|
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| 55-9423 | CLAMP - sensor (1/2 in dia) | 4 | ||
| 55-9703 | CLAMP - sensor (3/4 in dia) | 2 | ||
| 55-9311 | CLAMP - harness (1.0 in dia) | 1 | ||
| 55-2995 | SCREW - clamp | 6 | ||
| 55-2001 | FLATWASHER | 12 | ||
| 55-4560 | NUT | 6 | ||
| 13 | 41-2979 | HARNESS - evaporator blowers | 1 | |
| 14 | Not Used | |||
| 15 | 41-2981 | HARNESS - battery cable | 1 | |
| 16 | 55-3167 | STUD | 3 | |
| 55-3066 | LOCKWASHER (int) | 12 | ||
| 55-671 | NUT - jam | 12 | ||
| 55-448 | FLATWASHER | 12 | ||
| 55-5901 | WASHER - shoulder (insulation) | 1 | ||
| 55-5902 | FLATWASHER - insulation | 1 | ||
| 55-3672 | LOCKWASHER (int/ext) | 2 | ||
| 17 | 41-2982 | HARNESS - evaporator control (R6 M1) | 1 | |
| 41-3865 | HARNESS - evaporator control (R6 M2 & M5) | 1 | ||
| 41-4591 | HARNESS - evaporator control (R6 M4) | 1 | ||
| 18 | 304-2642 | CONNECTOR - receptacle (16-pin) | 1 | |
| 44-8779 | CLAMP - cable | 2 | ||
| 19 | 41-743 | PLUG - electrical (circular, 17-14) | 1 | |
| 20 | 44-7829 | CONNECTOR - tower (22-pin) | 1 | |
| 44-7811 | LOCK - secondary (nylon) | 2 |
