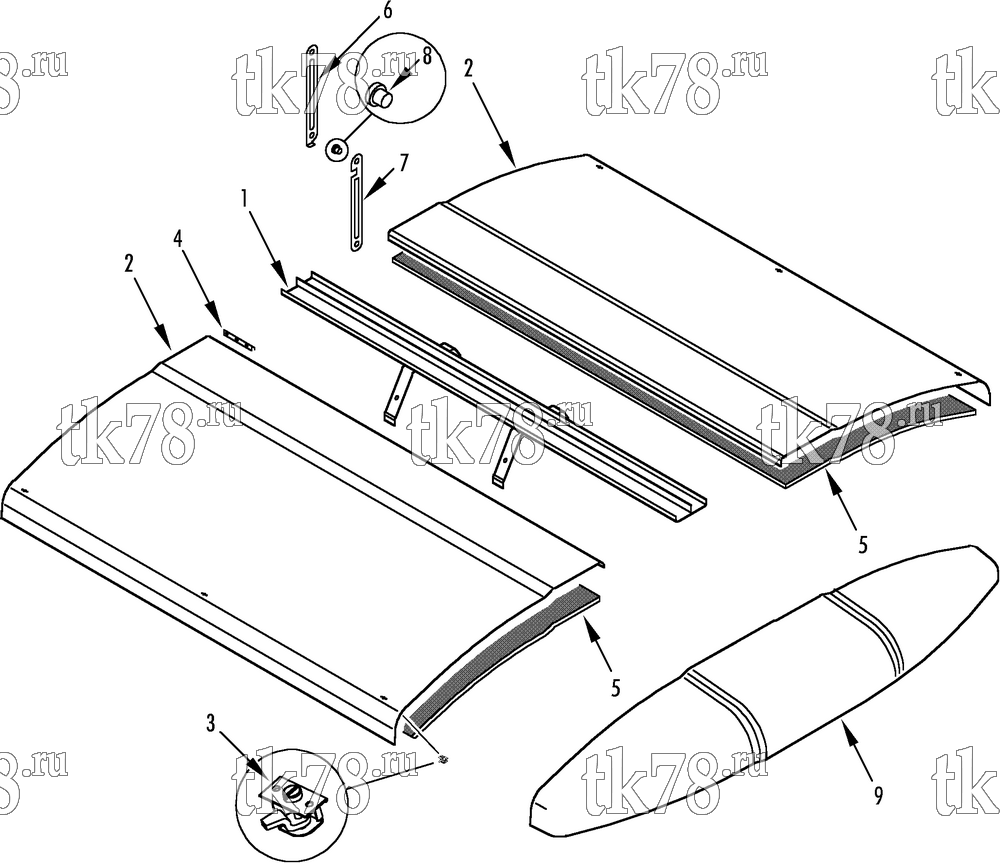

Установкa Thermo King R6-M1 схема EVAPORATOR PANELS – 152E11
Обновление от: 5/12/00
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5502 | BRACKET - evaporator cover | 1 | |
| 55-2977 | SCREW - bracket | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 2 | 98-5503 | COVER - evaporator | 2 | |
| 55-2001 | FLATWASHER | 12 | ||
| 55-4560 | NUT - cover | 12 | ||
| 3 | 91-9411 | LATCH - cover | 6 | |
| 55-3101 | RIVET - latch | 12 | ||
| 4 | 92-344 | HINGE - cover | 6 | |
| 55-3027 | SCREW - hinge | 12 | ||
| 55-2964 | LOCKWASHER | 12 | ||
| 55-2001 | FLATWASHER | 12 | ||
| 55-8752 | INSERT - hex (hinge) | 12 | ||
| 5 | 33-3095 | INSULATION - evaporator cover | 1 | |
| 6 | 91-7630 | SUPPORT (#1, before 2/00) | 4 | |
| 7 | 91-7631 | SUPPORT (#2, before 2/00) | 4 | |
| 8 | 91-8985 | PIVOT (before 2/00) | 12 | |
| 55-9233 | RING - retaining (before 2/00) | 12 | ||
| 55-2641 | FLATWASHER (before 2/00) | 12 | ||
| 9 | 98-5749 | END CAP - evaporator | 1 | |
| 55-3095 | SCREW - endcap (1/4-20 x 1.00 in) | 2 | ||
| 55-2977 | SCREW - endcap (1/4-20 x 1.25 in) | 2 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 |
