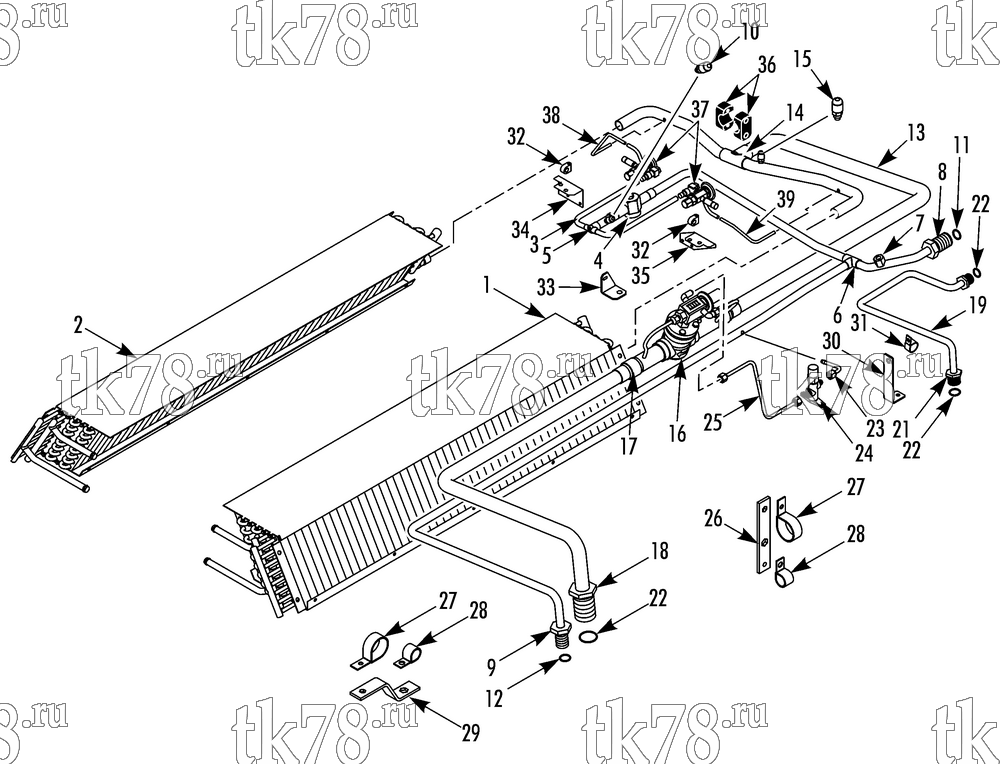

Установкa Thermo King R5-M60 схема REFRIGERATION EVAPORATOR – 228H9
Обновление от: 2/9/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1897 | COIL - evaporator (roadside) | 1 | |
| 2 | 67-1898 | COIL - evaporator (curbside) | 1 | |
| 55-2991 | SCREW - coil | 20 | ||
| 55-2964 | LOCKWASHER | 20 | ||
| 55-2001 | FLATWASHER | 20 | ||
| 55-6721 | INSERT | 20 | ||
| 3 | 67-2389 | TUBE - liquid line (incl items 4-10) | 1 | |
| 4 | 66-2648 | INDICATOR - liquid | 1 | |
| 5 | 55-904 | TEE (5/8 x 5/8 x 5/8) | 1 | |
| 6 | 55-7142 | TEE (3/8 x 3/8 x 5/8) | 1 | |
| 7 | 66-4139 | FITTING - saddle | 1 | |
| 8 | 55-9699 | ADAPTER - bulkhead (#12) | 1 | |
| 55-6812 | NUT - adapter (13/16) | 1 | ||
| 55-7199 | LOCKWASHER (1.21 id) | 1 | ||
| 9 | 55-8749 | ADAPTER - bulkhead (#10 ors) | 1 | |
| 55-6811 | NUT - adapter (1-14) | 1 | ||
| 55-6843 | LOCKWASHER (1.06 id) | 1 | ||
| 10 | 66-9842 | VALVE | 1 | |
| 11 | 33-2193 | O-RING (11/16 id) | 1 | |
| 12 | 33-1223 | O-RING (9/16 id) | 1 | |
| 13 | 61-4408 | TUBE - suction | 1 | |
| 14 | 55-6508 | TEE 7/8x7/8x1-1/8 | 1 | |
| 15 | 66-9842 | VALVE | 1 | |
| 16 | 66-8122 | VALVE - epr (see 129C13) | 1 | |
| 17 | 55-3307 | BUSHING | 2 | |
| 18 | 55-7832 | ADAPTER - bulkhead (#20) | 1 | |
| 55-9231 | NUT - bulkhead (1-1/16-12) | 2 | ||
| 55-5742 | LOCKWASHER (1.77 id) | 2 | ||
| 19 | 61-4409 | TUBE - discharge | 1 | |
| 20 | 66-5247 | ADAPTER - bulkhead (#16) | 1 | |
| 55-7111 | NUT - bulkhead (1-7/16 id) | 1 | ||
| 55-5741 | LOCKWASHER | 1 | ||
| 21 | 51-1484 | ADAPTER - bulkhead (#20) | 1 | |
| 55-9231 | NUT - bulkhead (1-1/16-12) | 1 | ||
| 55-5742 | LOCKWASHER | 1 | ||
| 33-1785 | O-RING (15/16 id, #16) | 1 | ||
| 22 | 33-1777 | O-RING (1-3/16 id, #20) | 1 | |
| 23 | 61-4410 | TUBE - shutoff to liquid | 1 | |
| 24 | 66-992 | VALVE - shutoff | 1 | |
| 55-2991 | SCREW - valve | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 25 | 61-4411 | TUBE - epr to shutoff | 1 | |
| 26 | 61-4412 | BRACKET - tubing | 2 | |
| 55-3843 | SCREW - bracket | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 27 | 55-9310 | CLAMP (1.125 dia) | 3 | |
| 55-2991 | SCREW - clamp | 3 | ||
| 55-2964 | LOCKWASHER | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 28 | 55-9702 | CLAMP (.625 dia) | 3 | |
| 55-2957 | SCREW - clamp | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 29 | 92-7185 | BRACKET - tube | 1 | |
| 30 | 92-7186 | BRACKET - return line | 1 | |
| 31 | 55-9721 | CLAMP (.875 dia) | 5 | |
| 55-2957 | SCREW - bracket & clamp | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-8711 | INSERT | 2 | ||
| 32 | 55-7143 | CLAMP - expansion valve | 2 | |
| 55-3675 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 33 | 92-1345 | BRACKET - sight glass | 1 | |
| 55-2957 | SCREW (1/4-20 x 5/8) | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 34 | 92-1741 | BRACKET - expansion valve (roadside) | 1 | |
| 35 | 92-1742 | BRACKET - expansion valve (curbside) | 1 | |
| 91-372 | CLAMP - tube | 1 | ||
| 55-3462 | SCREW - clamp | 1 | ||
|
20-55-3462 | Болт | 600 ₽ |
|
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-2977 | SCREW - bracket | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 36 | 91-5143 | CLAMP - suction tube | 2 | |
| 92-3265 | PLATE - clamp | 1 | ||
| 55-4811 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 7 | ||
| 55-4953 | NUT | 5 | ||
| 37 | 61-1312 | VALVE - expansion | 2 | |
| 61-811 | SCREEN | 1 | ||
| 66-4213 | ELEMENT | 1 | ||
| 38 | 61-4413 | TUBE - equalizer (roadside) | 1 | |
| 39 | 61-4414 | TUBE - equalizer (curbside) | 1 |
