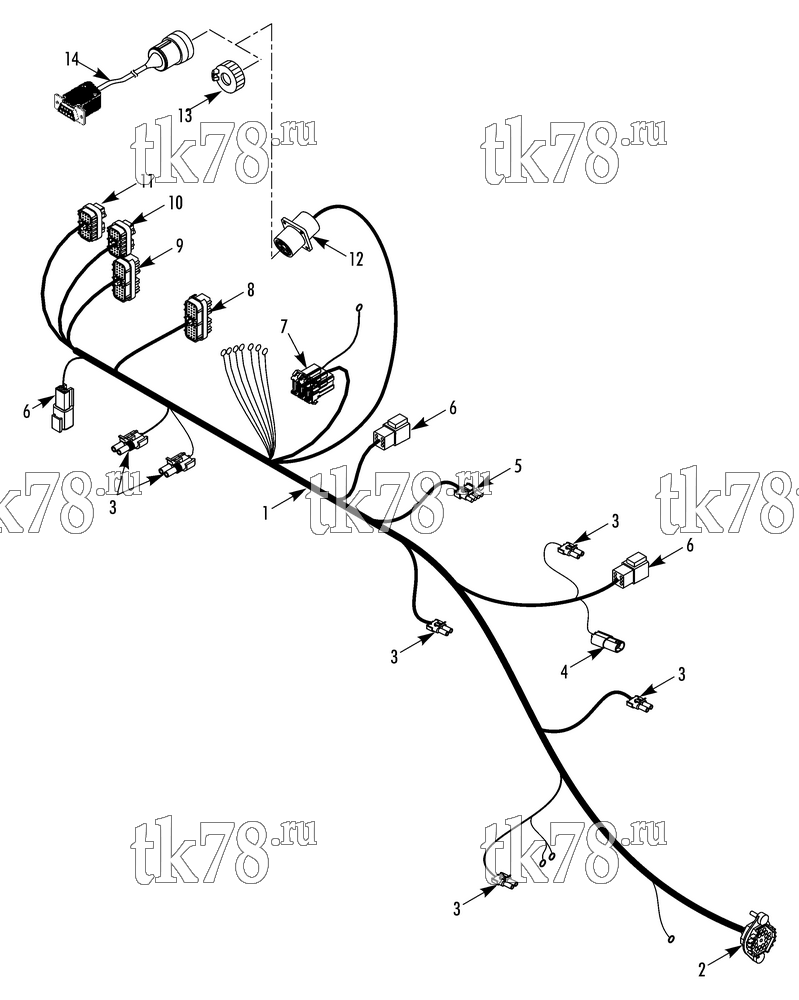

Установкa Thermo King R5-M60 схема HARNESS - MAIN (IntelligAIRE) – 228H8
Обновление от: 9/25/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-8359 | HARNESS - main | 1 | |
| 2 | 44-7829 | CONNECTOR - tower (22-pin, see 115D14) | 1 | |
| 3 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 4 | 44-5835 | CONNECTOR - shroud (2-pin) | 1 | |
| 5 | 44-7881 | CONNECTOR - tower (4-pin) | 1 | |
| 6 | 41-4281 | CONNECTOR (6-pin) | 2 | |
| 41-4282 | WEDGE - connector | 2 | ||
| 7 | 41-2973 | HOLDER - fuse | 3 | |
| 44-9758 | BREAKER - circuit (10 amp) | 2 | ||
|
10-44-9758 | Предохранитель 10 ампер 10 шт | 1 860 ₽ |
|
| 44-9344 | BREAKER - circuit (15 amp) | 1 | ||
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 8 | 41-4136 | CONNECTOR (30-pin, white) | 1 | |
| 44-9240 | TERMINAL - female (16-20 ga) | A/R | ||
| 41-8963 | PLUG - seal | A/R | ||
| 9 | 44-8857 | CONNECTOR (30-pin, black) | 1 | |
| 44-9240 | TERMINAL - female (16-20 ga) | A/R | ||
| 41-8963 | PLUG - seal | A/R | ||
| 10 | 41-4135 | CONNECTOR (18-pin, white) | 1 | |
| 44-9240 | TERMINAL - female (16-20 ga) | A/R | ||
| 41-8963 | PLUG - seal | A/R | ||
| 11 | 44-8858 | CONNECTOR (18-pin, black) | 1 | |
| 44-9240 | TERMINAL - female (16-20 ga) | A/R | ||
| 41-8963 | PLUG - seal | A/R | ||
| 12 | 41-2405 | CONNECTOR - receptacle (5-pin) | 1 | |
| 55-3427 | SCREW - connector | 4 | ||
| 55-2360 | FLATWASHER | 4 | ||
| 55-2359 | LOCKWASHER | 4 | ||
| 55-2361 | NUT | 4 | ||
| 13 | 41-2406 | CAP - dust | 1 | |
| 41-7774 | LAYNARD | 1 | ||
| 204-1040 | CABLE - download | 1 |
