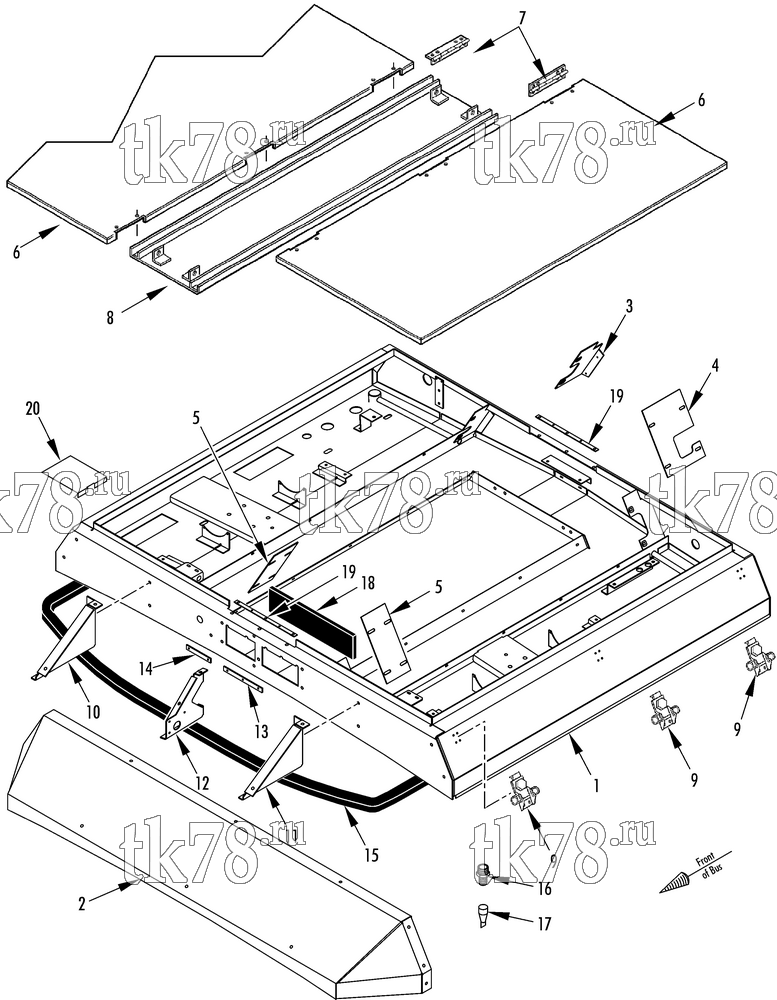

Установкa Thermo King R5-M60 схема EVAPORATOR STRUCTURAL – 228H5
Обновление от: 2/9/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8094 | FRAME - evaporator | 1 | |
| 55-8979 | INSERT (1/4-20 ORS) | 18 | ||
| 55-6863 | INSERT (1/4-20 STL) | 12 | ||
| 55-6713 | INSERT (5/16-18 ORS) | 8 | ||
| 2 | 98-8083 | SHROUD - front cover | 1 | |
| 55-6034 | SCREW - shroud | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 55-8711 | INSERT - threaded | 12 | ||
| 3 | 92-7190 | PANEL - blockoff (rear, curbside) | 1 | |
| 4 | 92-1746 | PANEL - blockoff (rear, roadside) | 1 | |
| 5 | 92-1748 | PANEL - blockoff (front) | 2 | |
| 33-3706 | STRIP - sealing | A/R | ||
| 91-7754 | EXTRUSION (rubber) | A/R | ||
| 55-1587 | SCREW - panel | 16 | ||
| 55-2086 | FLATWASHER | 16 | ||
| 55-1800 | LOCKWASHER | 16 | ||
| 55-3059 | NUT - captive | 16 | ||
| 6 | 98-6242 | COVER - access | 2 | |
| 7 | 91-6039 | HINGE - access cover | 6 | |
| 55-3027 | SCREW - hinge | 24 | ||
| 55-2001 | FLATWASHER | 48 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-4560 | NUT | 24 | ||
| 8 | 98-4784 | COVER - center | 1 | |
| 55-2977 | SCREW - cover | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2945 | WASHER - special | 6 | ||
| 55-8979 | INSERT - threaded (1/4-20) | 6 | ||
| 92-2310 | GASKET | A/R | ||
| 9 | 91-6774 | LATCH - cover | 6 | |
| 55-2991 | SCREW - latch | 24 | ||
| 55-2001 | FLATWASHER | 48 | ||
| 55-4560 | NUT | 24 | ||
| 10 | 92-7191 | BRACKET - shroud (curbside) | 1 | |
| 11 | 92-7192 | BRACKET - shroud (roadside) | 1 | |
| 12 | 92-7193 | BRACKET - shroud (center) | 1 | |
| 55-2957 | SCREW - bracket | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-8711 | INSERT | 6 | ||
| 13 | 92-3620 | PLATE - spacer, long | 1 | |
| 14 | 92-3621 | PLATE - spacer, short | 1 | |
| 15 | 92-753 | GASKET - sealing | A/R | |
| 16 | 55-5131 | CONNECTOR - hose | 4 | |
| 17 | 66-1273 | VALVE - hose check | 4 | |
| 18 | 92-1750 | FILTER - fresh air (see 170G0) | 1 | |
| 19 | 92-3313 | NUTSTRIP - cover support | 2 | |
| 55-3136 | RIVET | 6 | ||
| 20 | 92-1752 | BRACKET - blockoff | 2 |
