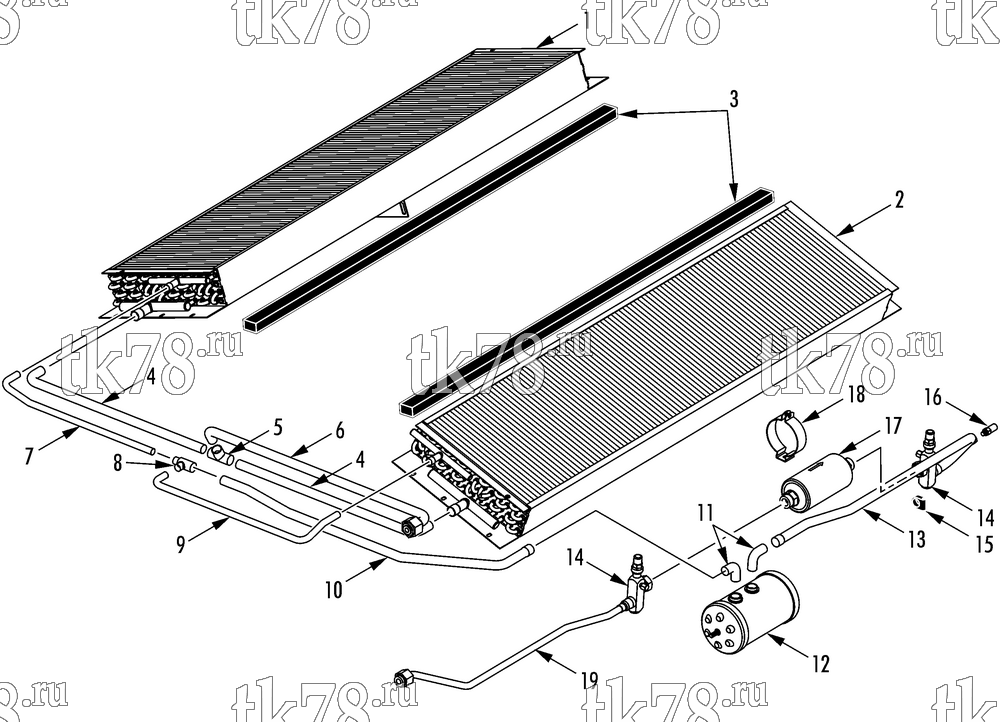

Установкa Thermo King R5-M60 схема REFRIGERATION COMPONENTS - CONDENSER – 228H4
Обновление от: 2/9/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2054 | COIL - condenser (curbside) | 1 | |
| 2 | 67-2055 | COIL - condenser (roadside) | 1 | |
| 55-2957 | SCREW - coil | 16 | ||
| 55-1800 | LOCKWASHER | 16 | ||
| 55-2086 | FLATWASHER | 20 | ||
| 55-8711 | INSERT | 12 | ||
| 55-4953 | NUT | 4 | ||
| 3 | 33-4017 | INSULATION - condenser coil | 2 | |
| 4 | 61-4403 | TUBE - tee to coil | 2 | |
| 5 | 55-6174 | TEE (7/8) | 1 | |
| 6 | 61-4404 | TUBE - discharge | 1 | |
| 7 | 61-4405 | TUBE - coil to tee | 1 | |
| 8 | 306-1850 | TEE (7/8 x 5/8 x 5/8) | 1 | |
| 9 | 61-4406 | TUBE - tee to coil | 1 | |
| 10 | 61-4407 | TUBE - tee to receiver | 1 | |
| 11 | 66-505 | ELBOW | 2 | |
| 12 | 67-1996 | TANK - receiver | 1 | |
| 55-4955 | NUT - tank | 2 | ||
| 55-2641 | FLATWASHER | 2 | ||
| 13 | 61-2897 | TUBE - receiver to dehydrator | 1 | |
| 66-4553 | FITTING - saddle | 1 | ||
| 14 | 66-5946 | VALVE - shutoff | 2 | |
| 55-8926 | SCREW - valve | 2 | ||
| 55-2363 | LOCKWASHER | 2 | ||
| 55-2769 | WASHER - special (0.344 id) | 2 | ||
| 15 | 55-7013 | CLAMP - tube | 1 | |
| 55-8319 | SCREW - clamp | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 1 | ||
| 16 | 66-7392 | VALVE - relief (see 119B8) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 17 | 306-221 | DEHYDRATOR | 1 | |
| 33-594 | O-RING - dehydrator (7/8 id) | 2 | ||
| 18 | 55-2192 | HANGER - dehydrator | 1 | |
| 55-2957 | SCREW - hanger | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 19 | 61-2898 | TUBE - valve to bulkhead | 1 | |
| 55-5197 | BUSHING | 1 | ||
| 55-7054 | NUT - adapter | 1 | ||
| 55-7052 | SLEEVE | 1 | ||
| 55-5936 | NUT - shoulder | 1 |
