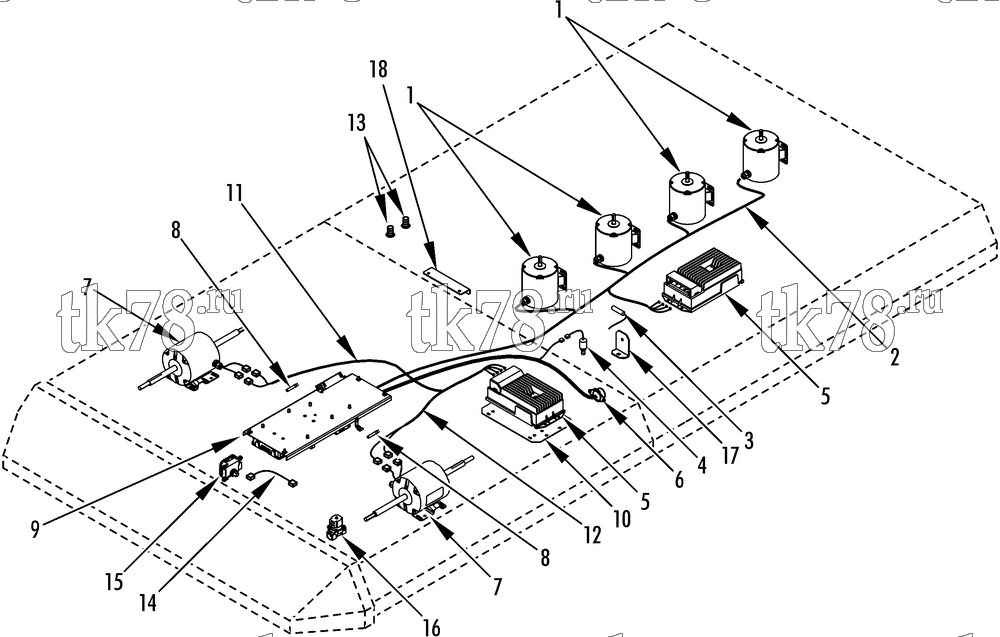

Установкa Thermo King R5-M60 схема ELECTRICAL COMPONENTS – 228H1
Обновление от: 6/23/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 104-808 | MOTOR - condenser fan (for connectors, see 115D14) | 4 | |
| 2 | 41-8358 | HARNESS - condenser (for connectors see 115D14 & 171A8) | 1 | |
| 33-316 | GROMMET (1.0 in id) | 2 | ||
| 3 | 41-7706 | KIT - temperature sensor (ambient air) | 1 | |
| 4 | 41-5894 | SWITCH - condenser fan | 1 | |
| 44-5841 | SWITCH | 1 | ||
| 5 | 41-3590 | DRIVE - motor | 2 | |
| 55-1587 | SCREW - drive | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-8811 | INSERT | 8 | ||
| 6 | 41-8359 | HARNESS - unit (see main harness) | 1 | |
| 55-3427 | SCREW - harness | 4 | ||
| 55-2360 | LOCKWASHER | 4 | ||
| 55-2359 | FLATWASHER | 4 | ||
| 55-2361 | NUT | 4 | ||
| 7 | 104-807 | MOTOR - evaporator | 2 | |
| 8 | 41-7706 | SENSOR - coil temperature | 2 | |
| 9 | NSS | PANEL - control (see 170G5) | 1 | |
| 10 | 92-1762 | PLATE - motor control | 1 | |
| 55-1587 | SCREW - plate | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 11 | 41-5893 | HARNESS - motor | 1 | |
| 55-5900 | CONNECTOR - liquid tite | 2 | ||
| 12 | 41-4534 | HARNESS - evaporator motor (see 115D14 & 171A8) | 1 | |
| 55-9701 | CLAMP (0.375 dia) | 1 | ||
| 51-663 | CLAMP (0.750 dia) | 9 | ||
| 55-9703 | CLAMP (0.750 dia) | 3 | ||
| 55-2991 | SCREW - clamp | 10 | ||
| 55-2001 | FLATWASHER | 10 | ||
| 55-2964 | LOCKWASHER | 10 | ||
| 55-4953 | NUT | 10 | ||
| 51-663 | CLAMP - harness (0.625 dia) | 9 | ||
| 55-2991 | SCREW - bracket | 9 | ||
| 55-2964 | LOCKWASHER | 9 | ||
| 55-2001 | FLATWASHER | 9 | ||
| 55-8752 | INSERT | 9 | ||
| 13 | 55-3167 | STUD - terminal | 2 | |
| 55-3672 | LOCKWASHER | 2 | ||
| 55-448 | FLATWASHER | 8 | ||
| 55-3066 | LOCKWASHER (internal tooth) | 4 | ||
| 55-5901 | WASHER - shoulder (polyester) | 1 | ||
| 55-5902 | FLATWASHER (polyester) | 1 | ||
| 55-671 | NUT | 8 | ||
| 14 | 41-4535 | HARNESS - fresh air damper | 1 | |
| 41-5359 | CONNECTOR - liquid tite | 1 | ||
| 15 | 41-3255 | ACTUATOR (see 228H6) | 1 | |
| 16 | 41-7599 | VALVE - solenoid, water (see 228G0) | 1 | |
| 17 | 92-7194 | BRACKET - sensor | 1 | |
| 51-1196 | CLAMP - sensor | 1 | ||
| 55-2957 | SCREW - bracket & clamp | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-8711 | INSERT | 2 | ||
| 18 | 92-7195 | BRACKET - harness | 1 | |
| 55-2957 | SCREW - bracket | 2 | ||
| 55-5970 | WASHER - sealing | 2 | ||
| 55-8711 | INSERT | 2 |
