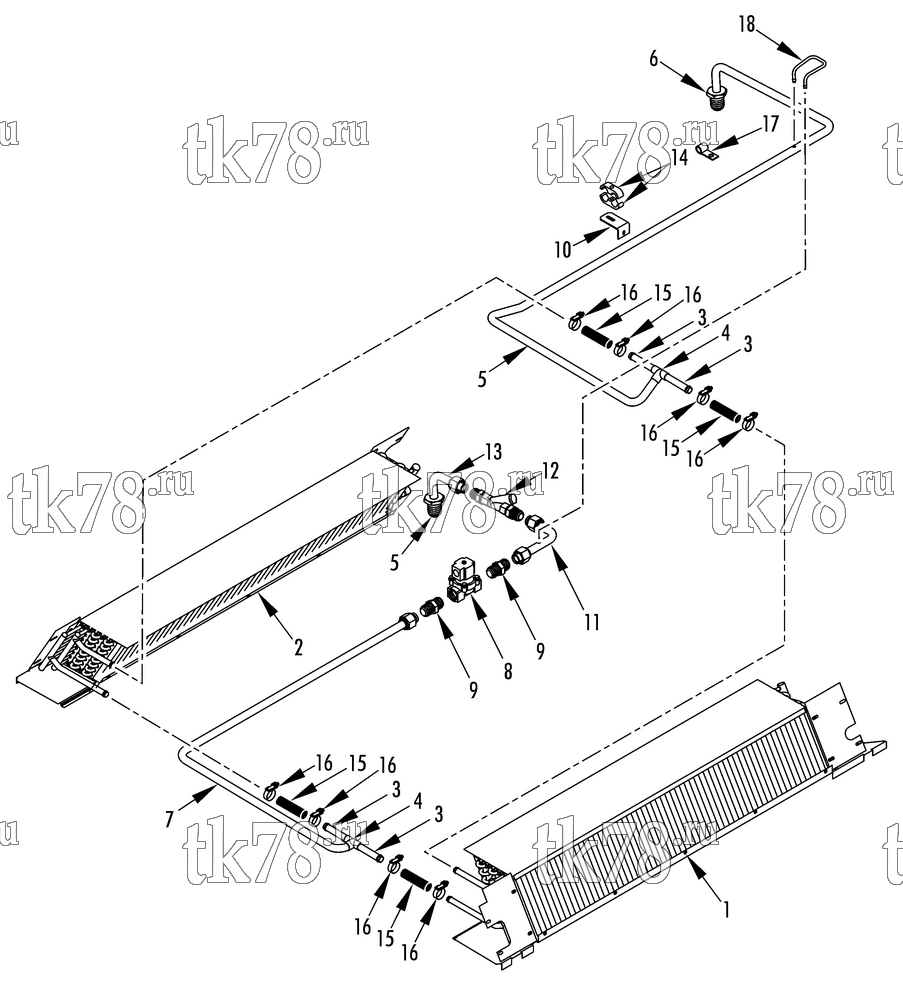

Установкa Thermo King R5-M60 схема EVAPORATOR HEATING COMPONENTS (R5E) – 228G0
Обновление от: 2/22/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1897 | COIL - evaporator (roadside) | 1 | |
| 2 | 67-1898 | COIL - evaporator (curbside) | 1 | |
| 3 | 66-9275 | TUBE - water | 4 | |
| 4 | 55-7065 | TEE (5/8 x 5/8 x 3/4) | 2 | |
| 5 | 61-4415 | TUBE - tee to adapter | 1 | |
| 6 | 55-8784 | ADAPTER - bulkhead | 2 | |
| 55-7706 | NUT - adapter | 2 | ||
| 55-8785 | LOCKWASHER | 2 | ||
| 7 | 61-4416 | TUBE - valve to tee | 1 | |
| 8 | 41-5610 | VALVE - solenoid (assembly) | 1 | |
| 41-7599 | VALVE - solenoid, water (see 173F5) | 1 | ||
| 9 | 55-2787 | COUPLING - valve | 2 | |
| 203-385 | SEALER - thread | A/R | ||
| 55-4397 | U-BOLT - valve | 2 | ||
| 55-4953 | NUT - u-bolt | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 10 | 92-876 | BRACKET - tube clamp | 1 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-6526 | INSERT | 2 | ||
| 11 | 61-4417 | TUBE - strainer to valve | 1 | |
| 12 | 61-687 | STRAINER - water line | 1 | |
| 55-9609 | COUPLING - strainer | 2 | ||
| 203-385 | SEALER - thread | A/R | ||
| 13 | 61-684 | TUBE - water inlet | 1 | |
| 14 | 55-7840 | CLAMP - tube | 8 | |
| 55-7976 | SCREW - clamp | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-4953 | NUT | 4 | ||
| 55-8711 | INSERT | 1 | ||
| 15 | 98-796 | HOSE (EPDM, cut to 5.25 in) | A/R | |
| 16 | 55-5074 | CLAMP - hose | 8 | |
| 17 | 55-9701 | CLAMP - tube (0.375 dia) | 2 | |
| 55-9423 | CLAMP - tube (0.500 dia) | 1 | ||
| 55-9703 | CLAMP - tube (0.750 dia) | 1 | ||
| 18 | 61-4418 | TUBE - water hammer | 1 |
