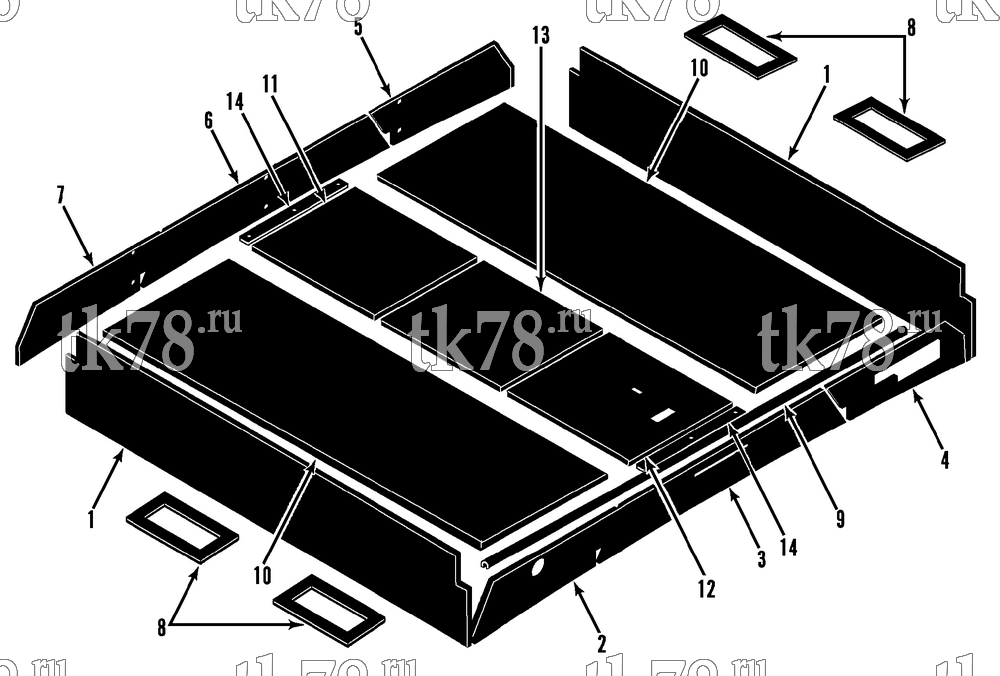

Установкa Thermo King R5-M2, M3, M5-M8, M12, RH5-M1, M2, R5-HP M6 схема INSULATION - EVAPORATOR (M2, M3, M5) – 127A5
Обновление от: 9/29/98
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-6739 | INSULATION - panel (side) | 2 | |
| 2 | 91-6041 | INSULATION (rear, curbside) | 1 | |
| 3 | 91-6734 | INSULATION (rear, center) | 1 | |
| 4 | 91-6733 | INSULATION (rear, roadside) | 1 | |
| 5 | 91-6737 | INSULATION (front, roadside) | 1 | |
| 6 | 91-6738 | INSULATION (front, center) | 1 | |
| 7 | 91-6736 | INSULATION (front, curbside) | 1 | |
| 8 | 33-2635 | GASKET - duct outlet | 4 | |
| 9 | 91-6190 | EXTRUSION (5.25 ft) | A/R | |
| 10 | 91-6086 | INSULATION - access cover | 2 | |
| 11 | 91-6744 | INSULATION - cover (center, front) | 2 | |
| 12 | 91-6084 | INSULATION - cover (center, rear) | 1 | |
| 13 | 91-6746 | INSULATION - cover (center) | 1 | |
| 14 | 99-6968 | STRIP - sealing (0.12 x 1 x 50 ft) | A/R |
