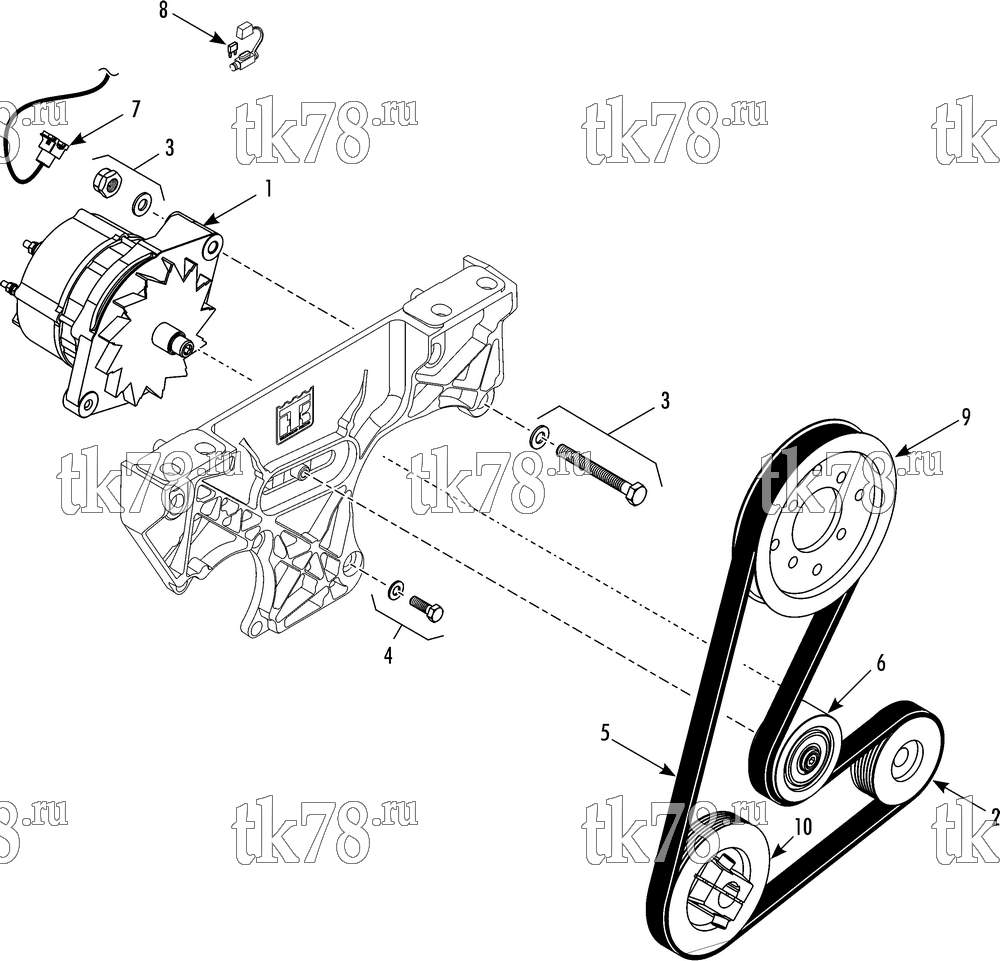

Установкa Thermo King PRECEDENT S-600 схема ALTERNATOR - 120A , S-600 (OPTIONAL) – 270B8
Обновление от: 7/11/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 40-1209 | KIT - 120 amp alternator | 1 | ||
| 1 | 45-2258 | ALTERNATOR - 120 amp | 1 | |
|
10-41-6782 | Генератор 120A, SB-XXX/SB-III/SMX/SMX-II/SL/SLe | 14 230 ₽ |
|
| 2 | 77-3057 | PULLEY - alternator | 1 | |
| 3 | 55-8751 | SCREW - alternator (M10) | 1 | |
| 55-7072 | FLATWASHER | 2 | ||
| 55-7005 | NUT | 1 | ||
| 4 | 55-5424 | SCREW - alternator (M8) | 1 | |
| 55-7069 | FLATWASHER | 1 | ||
| 5 | 78-1824 | BELT - alternator & generator | 1 | |
| 6 | 78-1843 | TENSIONER - belt (smooth) | 1 | |
| 7 | 42-975 | HARNESS - battery sense (9 ft) | 1 | |
| 42-976 | HARNESS - battery sense (60 ft) | 1 | ||
| 44-9607 | CONNECTOR - alternator | 1 | ||
| 8 | 41-3077 | FUSE - 3 amp | 1 | |
| 30-41-3077 | Предохранитель 32V 3А | 520 ₽ |
|
|
| 9 | 77-2691 | PULLEY - engine/alternator & generator (see 261C5) | 1 | |
| 55-6279 | SCREW - pulley | 4 | ||
| 51-144 | FLATWASHER | 4 | ||
| 10 | 77-3056 | PULLEY - generator | 1 |
