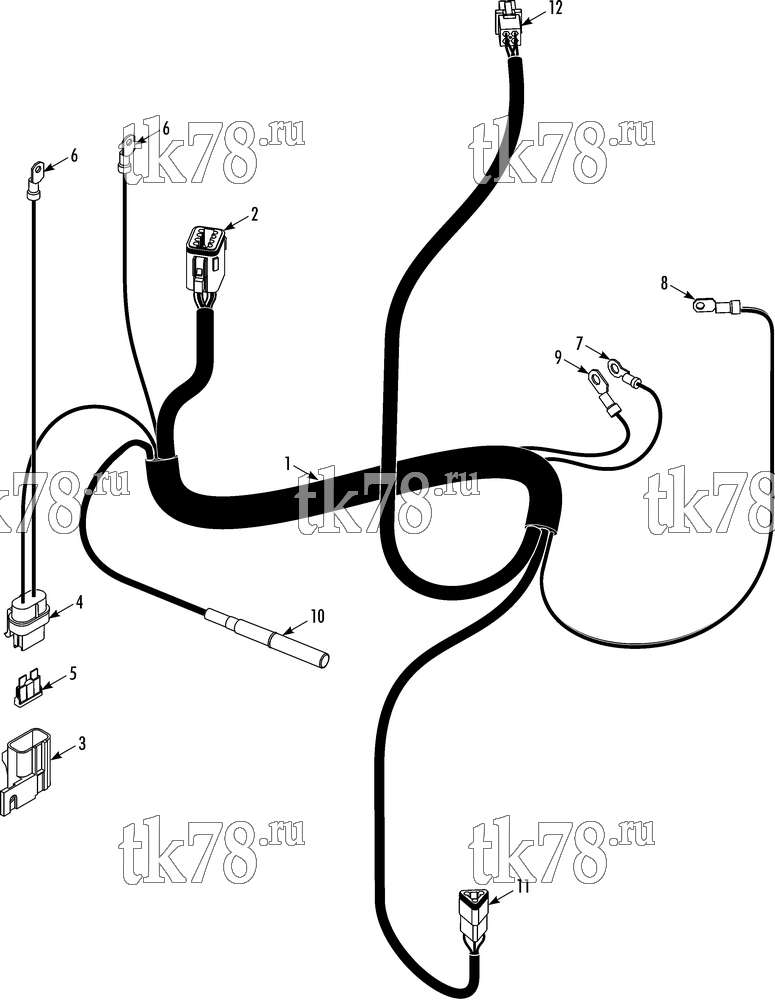

Установкa Thermo King PRECEDENT S-600 схема HARNESS - BATTERY CHARGER (OPTIONAL) – 267F9
Обновление от: 4/10/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-2520 | HARNESS - battery charger | 1 | |
| 2 | 44-9903 | PLUG - 8-pin (w/ seal) | 1 | |
| 41-8816 | SOCKET - gold (18 ga) | 7 | ||
| 44-9602 | PIN - sealing | 1 | ||
| 3 | 41-1769 | COVER - fuse | 1 | |
| 30-41-1769 | Крышка предохранителя | 510 ₽ |
|
|
| 4 | 42-443 | HOLDER - fuse | 1 | |
| 5 | 41-2978 | FUSE - 20 amp | 1 | |
| 30-41-2978 | Предохранитель 32V 20А | 500 ₽ |
|
|
| 6 | 41-4468 | TERMINAL - ring (#8 yellow, 10-12 ga) | 2 | |
| 7 | 44-2789 | TERMINAL - ring (blue 1/4, 14-16 ga) | 1 | |
| 8 | 44-2792 | TERMINAL - ring (yellow #10) | 1 | |
| 9 | 44-2793 | TERMINAL - ring (yellow 1/4) | 1 | |
| 10 | 41-8548 | SENSOR - ungraded | 1 | |
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| 11 | 44-9631 | CONNECTOR - 3-pin (w/ seal) | 1 | |
| 44-9587 | TERMINAL - socket | 1 | ||
| 44-9602 | PIN - sealing | 2 | ||
| 12 | 41-5710 | CONNECTOR - sealed (4-pin) | 1 | |
| 41-5719 | SOCKET (20-16 gauge) | 4 |
