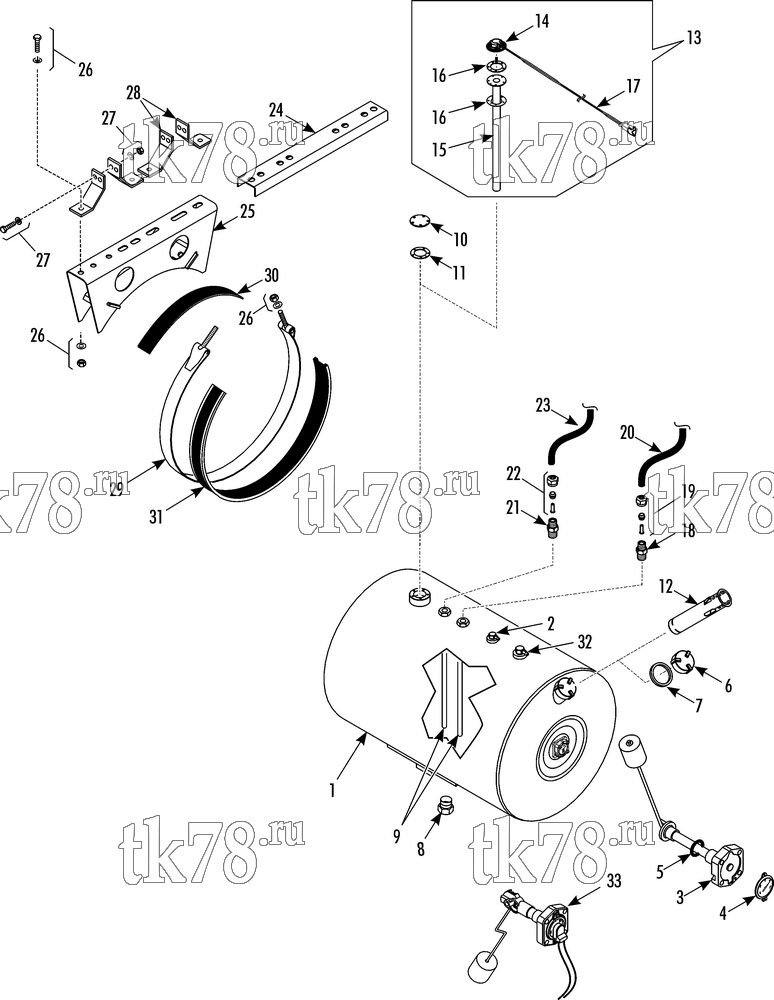

Установкa Thermo King PRECEDENT S-600 схема FUEL TANK (18 IN DIAMETER, 30 GALLON ALUMINUM) – 267F8
Обновление от: 3/10/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 12-1008 | TANK - fuel (30 gallon, ultra-sonic fuel level sensor - USFLS ready) | 1 | |
| 2 | 55-5617 | VENT | 1 | |
| 3 | 11-2593 | GAUGE - fuel (mechanical) | 1 | |
| 4 | 11-5450 | DIAL - fuel gauge | 1 | |
|
10-11-5450 | Датчик уровня топлива | 4 800 ₽ |
|
| 5 | 33-4818 | O-RING - fuel gauge | 1 | |
| 6 | 11-7984 | CAP - fuel | 1 | |
| 7 | 33-381 | GASKET - cap | 1 | |
| 8 | 13-1289 | DRAIN | 1 | |
| 9 | 13-1631 | TUBE - pickup | 2 | |
| 10 | 11-9741 | COVER - fuel tank | 1 | |
| 11 | 33-3878 | GASKET - cover | 1 | |
| 55-736 | SCREW - cover | 5 | ||
| 55-1511 | FLATWASHER | 5 | ||
| 55-431 | LOCKWASHER | 5 | ||
| 12 | 11-9631 | ANTI-SIPHON | 1 | |
|
10-11-9631 | Anti-siphon device - Reefer tanks | 6 920 ₽ |
|
| 13 | 40-1127 | KIT - ultrasonic fuel level sensor (18 inch tank) | 1 | |
| 14 | 41-9709 | SENSOR - fuel level (ultrasonic) | 1 | |
| 15 | 92-8941 | TUBE - sensor (ultrasonic) | 1 | |
| 16 | 33-4589 | GASKET - sensor tube | 2 | |
| 17 | 42-101 | CABLE - fuel level sensor | 1 | |
| 18 | 13-1231 | CONNECTOR - hose fitting (1/4) | 1 | |
| 19 | 10-243 | KIT - sleeve & eyelet (1/4) | 1 | |
| 11-4841 | NUT (1/4) | 1 | ||
| 20 | 11-4367 | HOSE (1/4 od x 35 ft lg) | 1 | |
| 21 | 11-8982 | CONNECTOR - fuel line (3/8) | 1 | |
| 22 | 10-242 | KIT - sleeve & eyelet (3/8) | 1 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 11-4941 | NUT (3/8) | 1 | ||
| 23 | 11-4372 | HOSE (3/8 od x 35 ft lg) | 1 | |
| 24 | 98-2817 | CHANNEL | 2 | |
| 25 | 98-5426 | HANGER - fuel tank | 2 | |
| 26 | 55-2252 | SCREW (1/2-13 x 1-1/2) | 8 | |
| 55-5270 | FLATWASHER (1/2) | 20 | ||
| 55-3686 | NUT (1/2-13) | 12 | ||
| 27 | 55-1469 | SCREW (3/8-16 x 1-1/2) | 12 | |
| 55-402 | FLATWASHER (3/8) | 20 | ||
| 55-5078 | NUT (3/8-16) | 12 | ||
| 28 | 99-7832 | BRACKET - hanger | 8 | |
| 29 | 98-9144 | STRAP & TEE - assembly | 2 | |
| 30 | 33-4479 | STRIP - chafing (4 in lg) | 2 | |
| 31 | 33-4876 | STRIP - chafing (33 in lg) | 2 | |
| 32 | 55-4761 | PLUG - for port tank (optional) | 1 | |
| 33 | 13-1632 | GAUGE - fuel (twin site, optional) | 1 |
