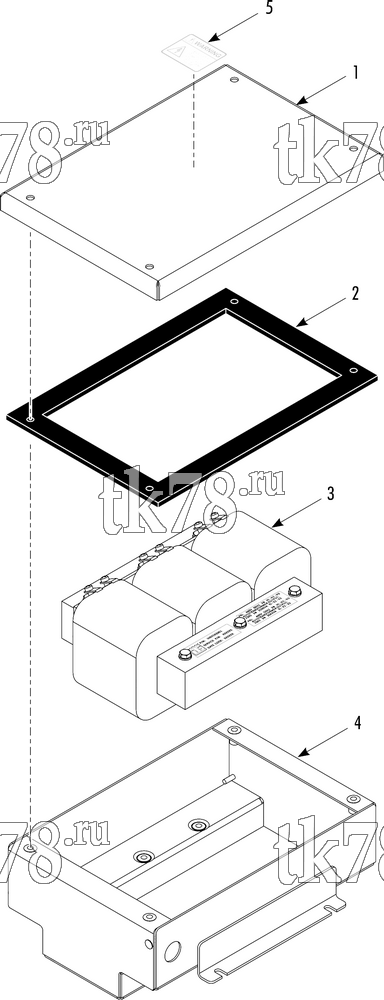

Установкa Thermo King PRECEDENT S-600 схема TRANSFORMER BOX – 261H3
Обновление от: 11/13/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 93-566 | COVER - transformer box | 1 | |
| 51-2199 | SCREW - cover | 4 | ||
| 2 | 33-5060 | GASKET - cover | 1 | |
| 3 | 45-2460 | TRANSFORMER (460/230 V) | 1 | |
| 55-7802 | SCREW - transformer | 6 | ||
| 55-4638 | FLATWASHER | 6 | ||
| 4 | 93-565 | BOX - transformer | 1 | |
| 51-2199 | SCREW - box | 4 | ||
| 5 | 92-9546 | NAMEPLATE - warning | 1 |
