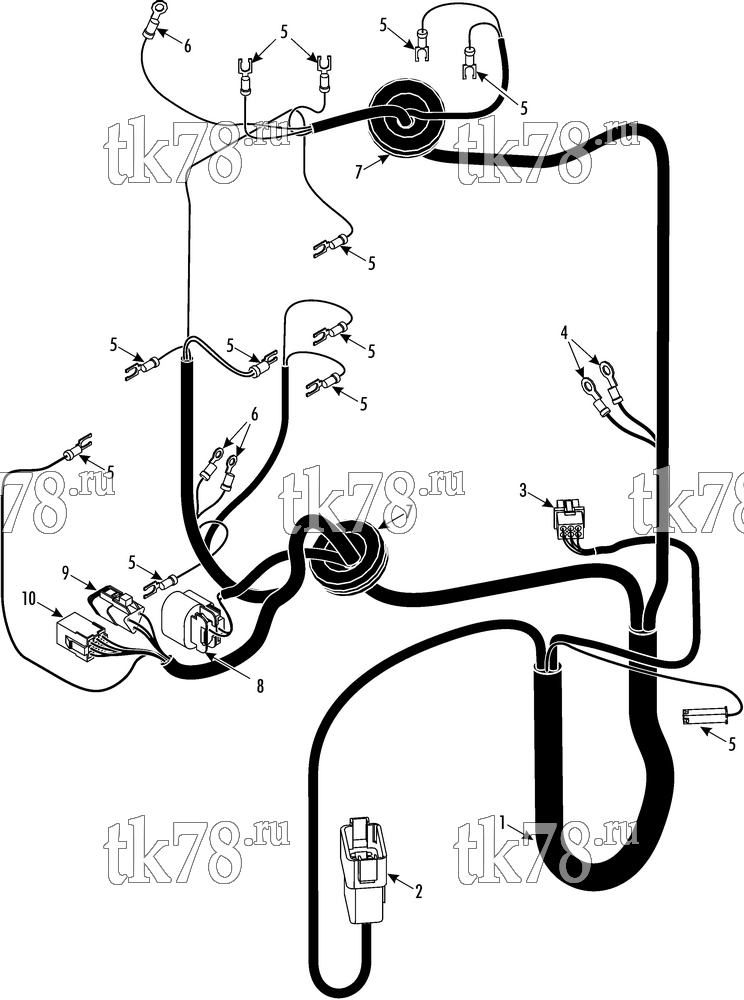

Установкa Thermo King PRECEDENT S-600 схема HARNESS - CONTROL 50 – 261G6
Обновление от: 11/17/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 42-757 | HARNESS - control 50 | 1 | |
| 2 | 44-9904 | RECEPTACLE - C MAIN (12-pin) | 1 | |
| 3 | 41-5745 | CONNECTOR - J6 (sealed, 6-pin) | 1 | |
| 4 | 44-2789 | TERMINAL - ring (blue 1/4, 16-14 ga) | 2 | |
| 5 | 42-524 | TERMINAL - fork (red #6, 22-16 ga) | 11 | |
| 6 | 44-2791 | TERMINAL - ring (blue #10, 16-14 ga) | 3 | |
| 7 | 33-2110 | GROMMET | 2 | |
| 8 | 42-855 | CONNECTOR - 2-pin | 1 | |
| 42-856 | WEDGE - 2-pin | 1 | ||
| 42-857 | TERMINAL - female | 3 | ||
| 9 | 44-9631 | PLUG - GFD (3-pin) | 1 | |
| 10 | 41-7510 | RECEPTACLE - PSM (9-pin) | 1 | |
| 41-7511 | TERMINAL | 7 |
