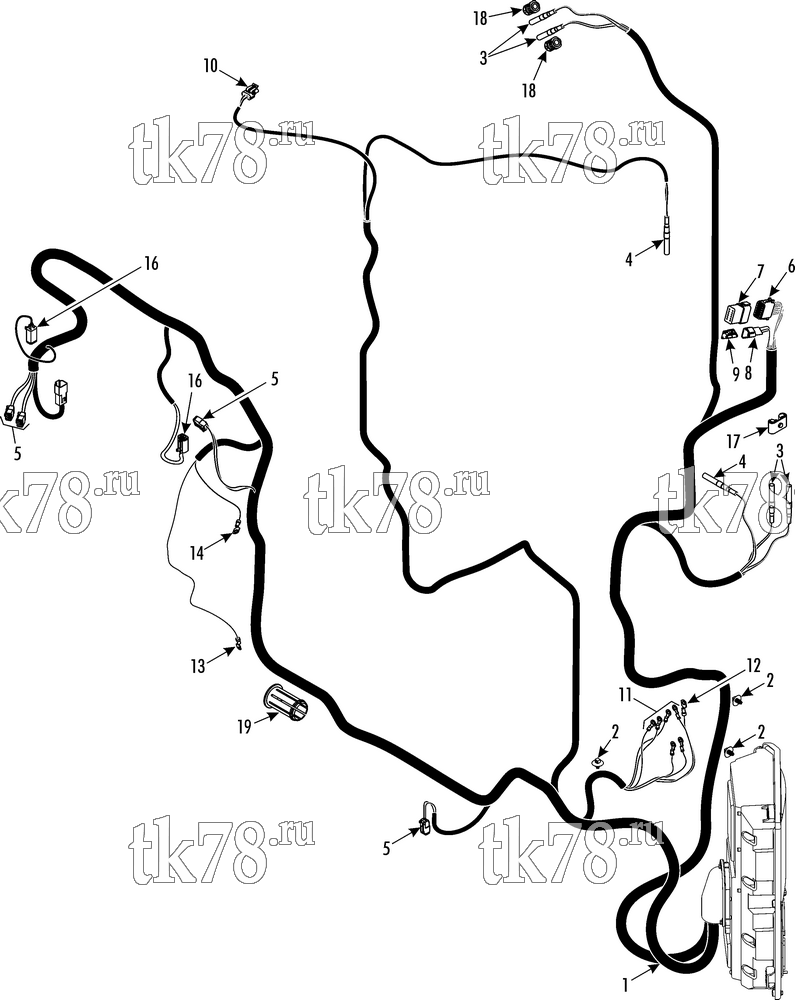

Установкa Thermo King PRECEDENT S-600 схема MAIN HARNESS, S-600 (outside control box) – 261G5
Обновление от: 6/24/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 42-441 | HARNESS - main (also see 261G4) | 1 | |
| 2 | 51-1768 | MOUNT - cable tie | 4 | |
| 3 | 41-8547 | SENSOR - graded | 4 | |
|
40-974 OEM | Датчик температуры к-т, калиброванный | 25 620 ₽ |
|
|
10-40-974 | Датчик температуры к-т, калиброванный | 4 660 ₽ |
|
| 4 | 41-8548 | SENSOR - ungraded | 2 | |
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| 5 | 44-9585 | PLUG - CDM_RPM, LPCO, HGB, PS (2-pin, w/ seal) | 4 | |
| 6 | 44-9904 | RECEPTACLE - CW (12-pin) | 1 | |
| 7 | 44-9600 | PLUG - CW (12- pin) | 1 | |
| 8 | 44-9544 | RECEPTACLE - DS (3-pin) | 1 | |
| 9 | 44-9631 | PLUG - 3-pin, w/ seal | 1 | |
| 10 | 41-6573 | CONNECTOR - 2-pin (coolant level switch) | 1 | |
| 41-6574 | LOCK - connector | 1 | ||
| 41-6575 | TERMINAL | 2 | ||
| 41-6576 | SEAL - terminal | 2 | ||
| 11 | 44-2789 | TERMINAL - ring (blue 1/4, 14-16 ga) | 6 | |
| 12 | 44-2793 | TERMINAL - ring (yellow 1/4) | 2 | |
| 13 | 41-4468 | TERMINAL - ring (#8 yellow, 10-12 ga) | 1 | |
| 14 | 44-2793 | TERMINAL - ring (1/4) | 1 | |
| 15 | 44-8915 | RECEPTACLE - SPT (4-pin) | 1 | |
| 16 | 44-8935 | PLUG - ETV & DPT (4-pin, w/ seal) | 2 | |
| 17 | 92-4612 | RETAINER - sensor | 1 | |
| 18 | 55-5111 | CONNECTOR - sensors grip | 2 | |
| 33-4410 | WASHER - sealing | 2 | ||
| 19 | 93-561 | GUIDE - harness | 1 |
