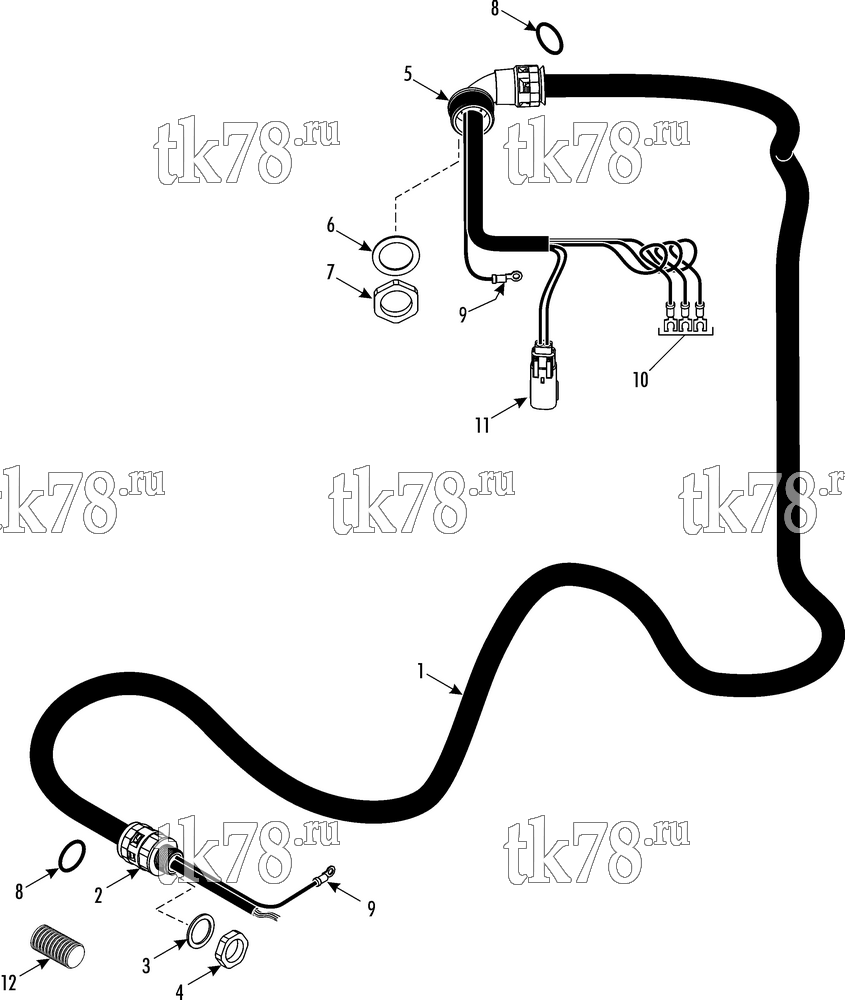

Установкa Thermo King PRECEDENT S-600 схема HARNESS - GENERATOR – 261F4
Обновление от: 5/14/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 42-755 | HARNESS - generator | 1 | |
| 2 | 51-2226 | FITTING - harness (straight) | 1 | |
| 3 | 51-2228 | WASHER - sealing | 1 | |
| 4 | 51-2227 | NUT - fitting | 1 | |
| 5 | 51-2248 | FITTING - harness (elbow) | 1 | |
| 6 | 51-2252 | WASHER - sealing | 1 | |
| 7 | 51-2250 | NUT - fitting | 1 | |
| 8 | 33-4926 | O-RING | 2 | |
| 9 | 44-2791 | TERMINAL - ring (blue # 10, 16-14 ga) | 2 | |
| 10 | 42-525 | TERMINAL - fork (blue # 10, 16-14 ga) | 3 | |
| 11 | 42-550 | CONNECTOR - 2-pin | 1 | |
| 42-520 | TERMINAL - male | 2 | ||
| 12 | 42-568 | CONDUIT - harness (25 ft) | A/R |
