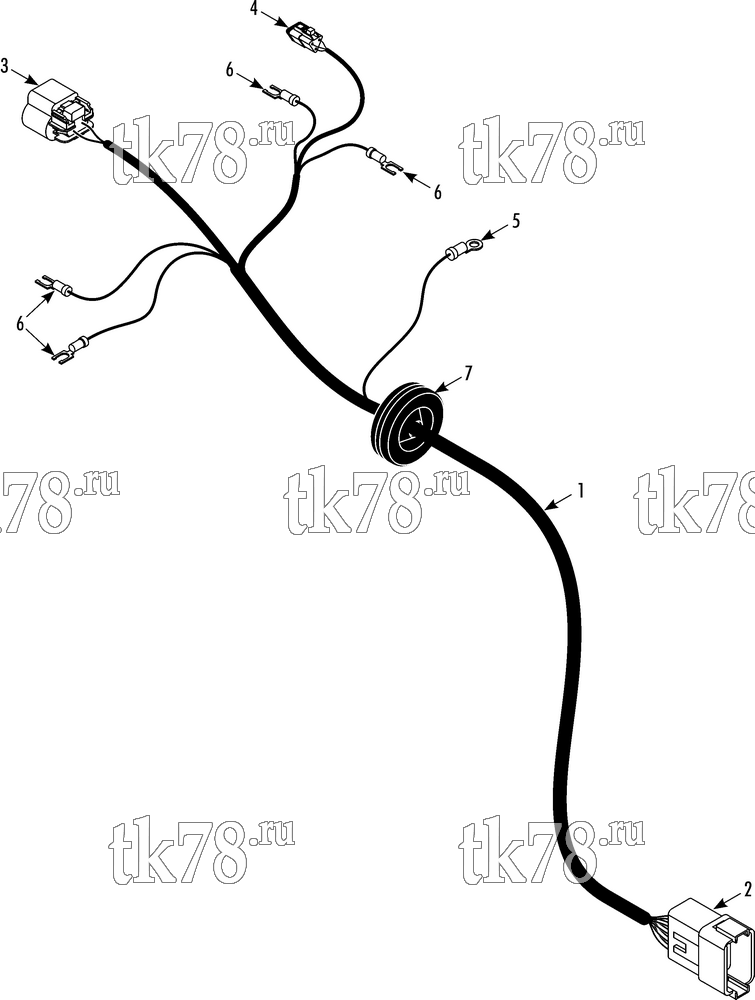

Установкa Thermo King PRECEDENT S-600 схема HARNESS - CONTROL 30 – 261F1
Обновление от: 11/17/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 42-555 | HARNESS - 30 control | 1 | |
| 2 | 44-9904 | RECEPTACLE - 12-pin | 1 | |
| 3 | 42-855 | CONNECTOR - 2-pin | 1 | |
| 42-856 | WEDGE - 2-pin | 1 | ||
| 4 | 44-9631 | PLUG - 3 pin | 1 | |
| 5 | 44-2789 | TERMINAL - ring (blue 1/4, 16-14 ga) | 1 | |
| 6 | 42-524 | TERMINAL - fork (red #6, 22-16 ga) | 4 | |
| 7 | 33-2110 | GROMMET | 1 |
