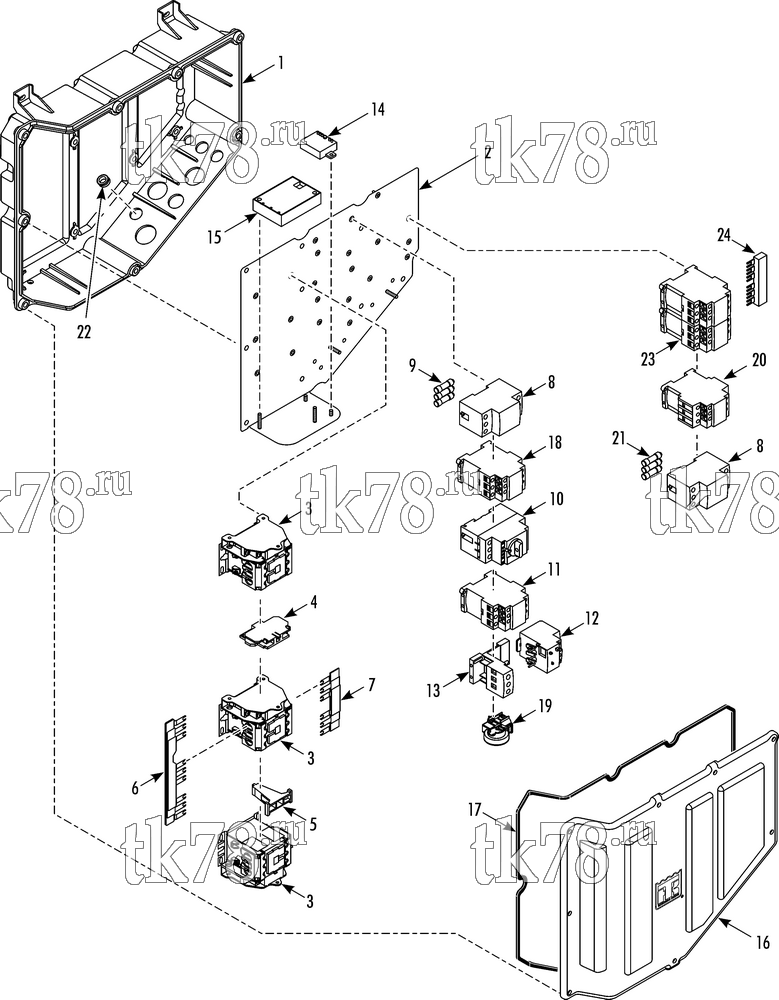

Установкa Thermo King PRECEDENT S-600 схема HIGH VOLTAGE BOX – 261E3
Обновление от: 6/20/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8852 | HOUSING - high voltage box | 1 | |
| 2 | 93-771 | PLATE - contactor | 1 | |
| 3 | 41-7934 | CONTACTOR & TIMER (motor & phase correction) | 3 | |
| 51-2199 | SCREW - contactor | 6 | ||
| 4 | 42-754 | CONTACTOR - auxiliary | 1 | |
| 5 | 44-8813 | INTERLOCK | 1 | |
| 6 | 42-548 | BAR - bus (long) | 1 | |
| 7 | 42-547 | BAR - bus (short) | 1 | |
| 8 | 42-545 | FUSEHOLDER (3 pole) | 2 | |
| 9 | 42-546 | FUSE (15 amp, 230 V units) | 3 | |
| 42-972 | FUSE (12 amp, 460 V units) | 3 | ||
| 10 | 42-544 | RELAY - overload (heater) | 1 | |
| 11 | 41-5629 | CONTACTOR - heater | 1 | |
| 12 | 41-9110 | RELAY - overload (compressor, 230V) | 1 | |
| 41-6094 | RELAY - overload (compressor, 460V) | 1 | ||
| 13 | 41-6096 | ADAPTER - overload relay mount | 1 | |
| 51-2305 | SCREW - relays & contactor (items 8 - 13) | 10 | ||
| 14 | 42-237 | RELAY - ground fault | 1 | |
| 15 | 42-792 | SELECTOR - phase | 1 | |
| 51-717 | NUT | 8 | ||
| 16 | 98-8851 | COVER - high voltage box | 1 | |
| 51-2199 | SCREW - cover | 7 | ||
| 55-8782 | WASHER | 7 | ||
| 17 | 33-4971 | GASKET - cover | 1 | |
| 18 | 42-432 | CONTACTOR - generator | 1 | |
| 19 | 42-396 | SENSOR - current (early units only) | 1 | |
| 20 | 41-9391 | CONTACTOR - transformer | 1 | |
| 21 | 42-444 | FUSE (10 amp, 460 V units) | 3 | |
| 22 | 33-4972 | GROMMET - blind | 1 | |
| 23 | 42-430 | CONTACTOR - reversing (460 V units) | 1 | |
| 24 | 42-974 | BAR - bus | 1 |
