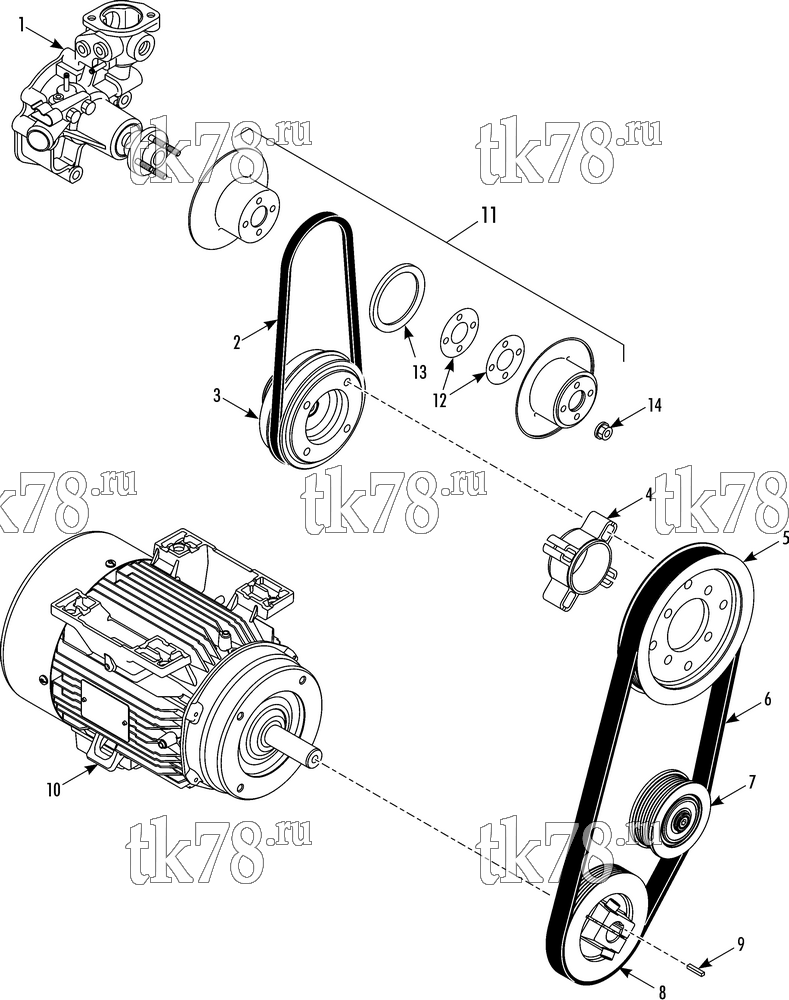

Установкa Thermo King PRECEDENT S-600 схема BELT GROUP (Smart Power / battery charger, coolant pump end) – 261E1
Обновление от: 7/12/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 13-1259 | PUMP - coolant | 1 | |
| 2 | 78-1340 | BELT - pump | 1 | |
|
20-78-1968 | Ремень водяного насоса, SL/SLe/SLX/SLXe | 5 210 ₽ |
|
| 10-78-1340 | Ремень водяного насоса, SL/SLe/SLX/SLXe | 3 460 ₽ |
|
|
|
PP-78-1340 | Ремень водяного насоса, SL/SLe/SLX/SLXe | 890 ₽ |
|
| 3 | 13-353 | PULLEY - crankshaft | 1 | |
| 4 | 13-1204 | SPACER - pulley | 1 | |
| 5 | 77-2691 | PULLEY - engine/alternator & generator | 1 | |
| 55-6279 | SCREW - pulley | 4 | ||
| 51-144 | FLATWASHER | 4 | ||
| 6 | 78-1844 | BELT - generator | 1 | |
| 7 | 78-1842 | TENSIONER - belt (grooved) | 1 | |
| 55-7069 | FLATWASHER | 1 | ||
| 8 | 77-3056 | PULLEY - generator | 1 | |
| 51-1005 | SCREW - pulley | 2 | ||
| 55-4613 | FLATWASHER | 2 | ||
| 9 | 55-3264 | KEY - generator | 1 | |
| 10 | 104-802 | GENERATOR (see 261C6) | 1 | |
| 11 | 13-358 | PULLEY - coolant pump | 1 | |
| 12 | 77-1427 | SHIM (1 mm) | A/R | |
| 77-2752 | SHIM (0.5 mm) | A/R | ||
| 13 | 77-1428 | SPACER | 1 | |
| 14 | 55-5792 | NUT | 4 |
